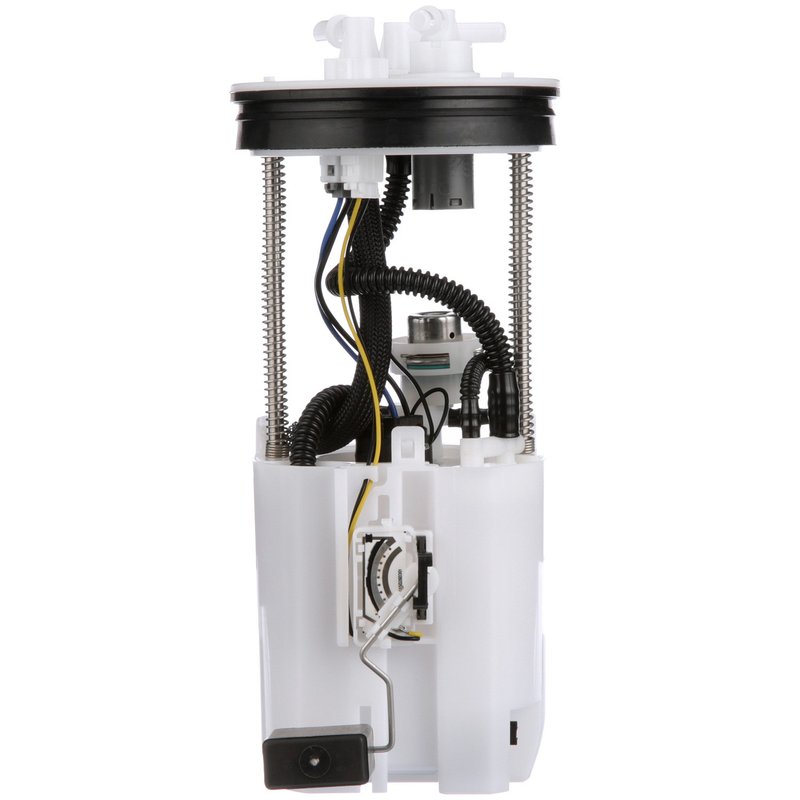

Delphi FG1280 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Honda Fit

The Delphi FG1280 fuel pump module assembly is designed specifically for Honda Fit models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module ensures optimal engine performance and fuel efficiency.

Key Features of Delphi FG1280 Fuel Pump Module

• Electric fuel pump with a 12.0-volt power rating
• In-tank design with internal strainer for fuel filtration
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 80 psi and system pressure of 51 psi
• Quick connect outlet with 0.313 inch outside diameter
• Four male blade terminals for secure electrical connections
• Comes with gasket, seal, and lock ring for proper installation
• Average flow rating of 35 liters per hour and average current draw of 8 amps

Detailed Description of the Delphi FG1280 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1280) is engineered for use with Honda Fit vehicles, providing a standard replacement solution for fuel delivery systems. The electric pump operates at 12 volts and features an internal strainer inlet to prevent contaminants from entering the fuel system. The module includes a fuel level sender assembly with a float arm, allowing accurate fuel gauge readings. The quick connect outlet with a 0.313-inch outside diameter and three outlet ports ensures compatibility with the vehicle’s fuel lines. The assembly also includes a gasket, seal, and lock ring to maintain a secure and leak-free installation. With a maximum pressure of 80 psi and a system pressure of 51 psi, this pump module supports consistent fuel flow and engine performance under various driving conditions.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Honda Fit models
• Resolves fuel delivery problems causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel leaks by providing new seals and lock ring components
• Improves fuel system reliability and efficiency in older vehicles

Installation Notes and Tips

• Compatible with Honda Fit models requiring a 12V in-tank electric fuel pump
• Ensure the fuel tank is empty and depressurized before installation
• Use the included gasket, seal, and lock ring to prevent leaks
• Verify electrical connections with the four male blade terminals for proper fit
• Follow vehicle-specific service manual instructions for safe removal and installation

Quality Assurance and Warranty

The Delphi FG1280 fuel pump module assembly is manufactured to meet OEM specifications for Honda Fit vehicles. It is a standard replacement grade part designed for durability and consistent performance. The product includes a fuel level sender assembly and internal strainer to maintain fuel system integrity. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
