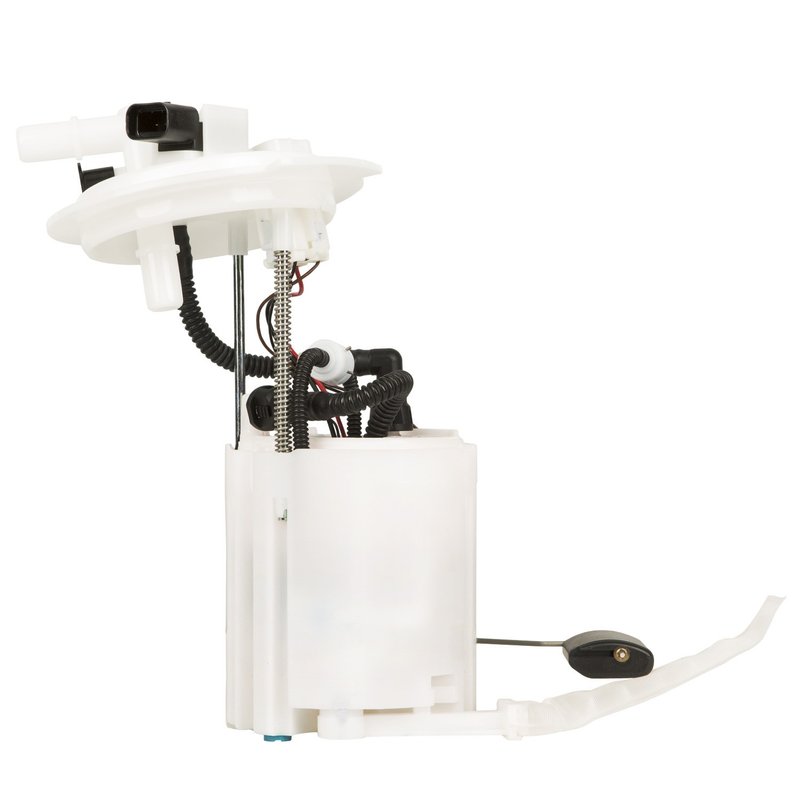

Delphi FG1285 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Hyundai Sonata

The Delphi FG1285 fuel pump module assembly is designed specifically for Hyundai Sonata models requiring a dependable in-tank fuel delivery solution. Engineered to meet standard replacement specifications, this electric fuel pump module ensures consistent fuel flow and accurate fuel level readings.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes gasket, lock ring, and external strainer for secure installation
• Quick connect outlet with 0.313-inch outside diameter and dual outlet ports
• Blade-type male terminals with four connections for reliable electrical contact
• Maximum pressure rating of 109 psi and system pressure of 73 psi
• Average flow rating of 55 liters per hour and average current draw of 9 amps
• Vapor pressure sensor included for enhanced fuel system monitoring

Technical Details and Features

The Delphi FG1285 fuel pump module assembly is an in-tank electric pump designed for Hyundai Sonata vehicles. It features an external strainer inlet type and a quick connect outlet type with two outlet ports, facilitating efficient fuel delivery. The module operates at 12 volts and supports gasoline fuel systems. It includes a fuel level sender assembly with resistance values ranging from 200 ohms when empty to 8 ohms when full, providing accurate fuel level readings. The assembly comes complete with a gasket, lock ring, and strainer to ensure a secure and leak-free installation. The blade-type male terminals with four connections support stable electrical performance, while the vapor pressure sensor enhances fuel system diagnostics.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Hyundai Sonata models
• Resolves inconsistent fuel pressure or flow problems
• Fixes inaccurate fuel gauge readings due to faulty sender units
• Addresses fuel delivery interruptions caused by clogged strainers
• Eliminates electrical connection issues with blade terminal design

Installation Notes and Tips

When installing the Delphi FG1285 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. The included gasket and lock ring must be properly seated to prevent leaks. Verify the orientation of the fuel level sender float arm for accurate fuel gauge operation. Use appropriate tools to connect the quick connect outlets securely and confirm all four blade terminals are firmly attached. Follow Hyundai Sonata manufacturer guidelines for fuel system maintenance during installation.

Quality Assurance and Warranty Information

This Delphi fuel pump module assembly is manufactured to meet standard replacement quality standards, ensuring reliable performance and durability. The product includes a vapor pressure sensor and is tested for consistent flow and pressure ratings. Delphi provides a limited warranty covering defects in materials and workmanship, supporting long-term vehicle operation when installed correctly.
