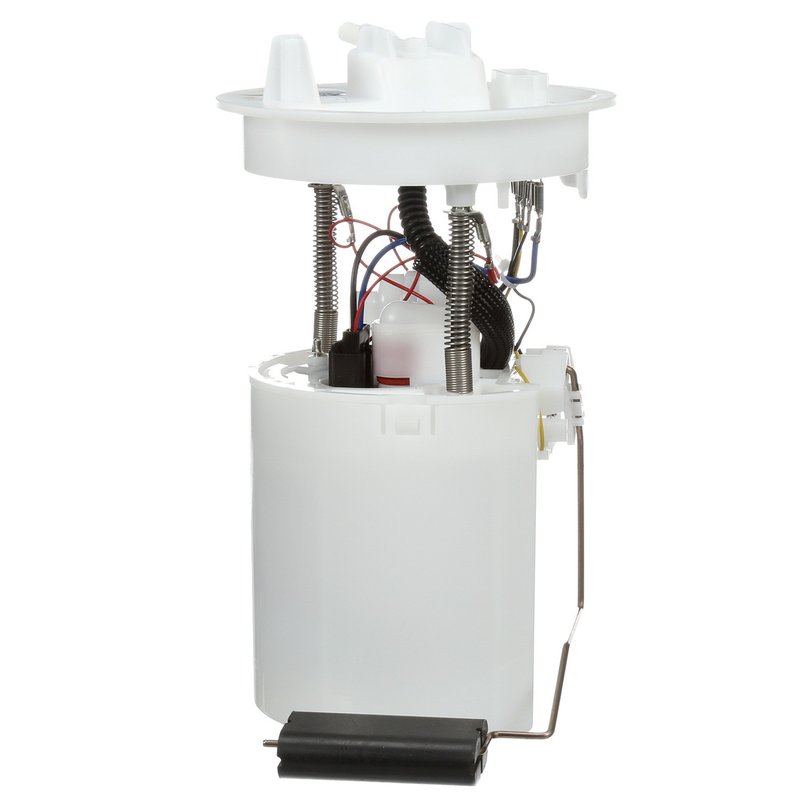

Delphi FG1286 Fuel Pump Module Assembly
| Brand | Delphi FG1286 |
|---|---|
| Average Current Draw | 8 |
| Average Flow Rating | 50 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 94.0 |
| Outlet Outside Diameter | 0.313 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 400.0 |
| Resistance Ohms Full | 20.0 |
| Strainer Included | Yes |
| System Pressure | 58 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Mazda · 4 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built with decades of original-equipment experience and knowledge.
Complete assembly. Includes a regulator, strainer, seal, and fuel level sender.
Cross-references A30193, CFG1286 and E9049M for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Mazda 3
Delphi FG1286 is a standard replacement fuel pump module assembly for 2010-2013 Mazda 3 models. It combines the in-tank electric pump, fuel level sender, regulator, and strainer in one service assembly for gas applications.
Key Features
- Fits 2010-2013 Mazda 3 fuel system applications
- In-tank electric fuel pump module assembly for gasoline vehicles
- Includes fuel level sender assembly, regulator, seal, and strainer
- 12.0-volt operation with blade terminals and male terminal design
- Quick-connect outlet with one outlet and 94.0 maximum pressure rating
- Standard replacement part built from Delphi OE heritage and application knowledge
- Package contents include fuel pump module assembly with float arm, seal, and instruction sheet
Detailed Description
Delphi FG1286 fuel pump module assembly is built for the 2010-2013 Mazda 3 and is engineered as an in-tank replacement for gasoline fuel delivery systems. It features a quick-connect outlet, internal strainer, integrated regulator, and fuel level sender assembly, helping restore proper fuel delivery and tank level reporting in one service part. Delphi draws on more than 100 years of OE experience and a broad aftermarket portfolio, bringing factory-based design knowledge to this Mazda 3 fuel pump module assembly.
This part cross-references A30193 and CFG1286 for the same application. The FG1286 part number is also commonly referenced when sourcing a Delphi fuel pump module assembly for Mazda 3 models from 2010 through 2013.
What It Helps Address
- Hard starting caused by weak or failing fuel delivery
- Engine stalling from inconsistent fuel pressure
- Fuel gauge readings that are inaccurate or erratic
- Loss of fuel pressure in an in-tank pump system
- Fuel system service needs on 2010-2013 Mazda 3 vehicles
Installation Notes and Tips
Before installation, clean the fuel tank to help prevent future seal problems, as noted for this Mazda 3 application. Verify electrical connector style, outlet connection, and system pressure requirements before replacing the original module. Because this is an in-tank assembly, proper tank access and careful handling of the seal and strainer are important during service.
Quality Assurance
Delphi builds this fuel pump module assembly using OE-based engineering knowledge developed through long-term supplier experience with major automakers. FG1286 is a standard replacement part intended to meet the needs of the specified Mazda 3 applications with the correct fuel delivery components in one assembly.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Mazda | 3 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2012 | Mazda | 3 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2011 | Mazda | 3 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2010 | Mazda | 3 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
