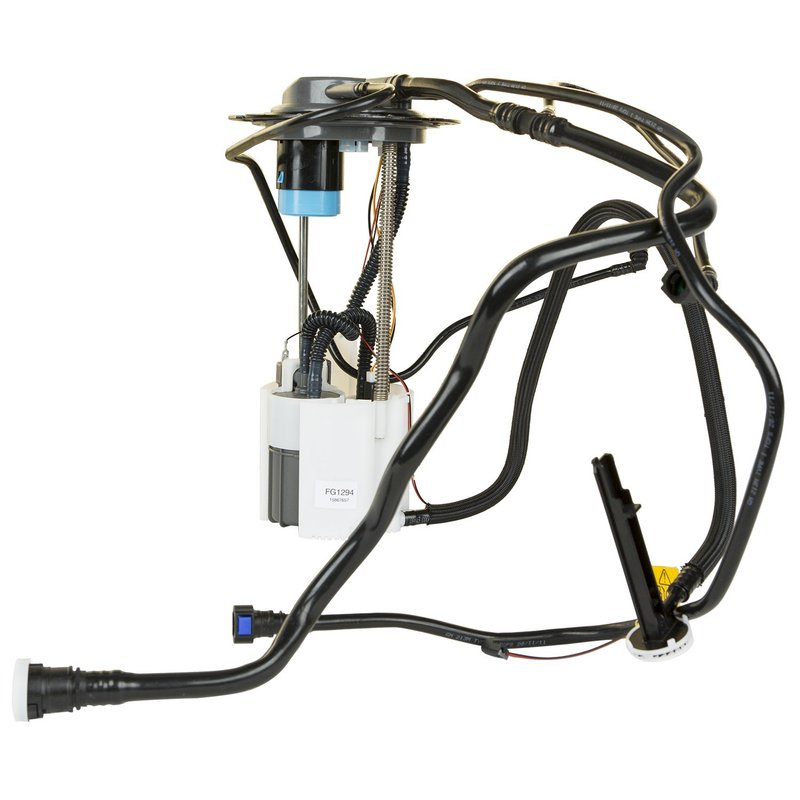

Delphi FG1294 Fuel Pump Module Assembly - Left or Right

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1294 fuel pump module assembly is designed for reliable fuel delivery in select GM vehicles. Engineered for use with gasoline, this in-tank electric fuel pump module ensures consistent fuel pressure and flow for Chevrolet Equinox, Pontiac Torrent, and Saturn Vue models.

• Outlet outside diameter: 0.375 inches
• Voltage: 12.0 volts
• Fuel type: Gasoline compatible
• Includes fuel pressure regulator and internal strainer
• Maximum pressure rating: 94 psi
• System pressure: 58 psi
• Blade terminal type with 6 male terminals
• Quick connect outlet with 3 outlets
• Includes gasket and seal for installation
• Electric pump with average current draw of 7 amps and flow rating of 16 GPH
• Vapor pressure sensor integrated

Technical Details and Features

The Delphi FG1294 fuel pump module assembly is an electric in-tank pump designed to maintain optimal fuel delivery and pressure for gasoline engines. It features an internal strainer inlet and a quick connect outlet with three connections, facilitating efficient fuel flow and easy installation. The included fuel pressure regulator helps maintain system pressure at 58 psi, with a maximum pressure capacity of 94 psi, ensuring stable operation under various driving conditions. The pump operates at 12 volts with an average current draw of 7 amps and delivers a flow rate of 16 gallons per hour, suitable for the fuel demands of Chevrolet Equinox, Pontiac Torrent, and Saturn Vue vehicles. The blade-type terminals with six male connectors provide secure electrical connections, while the included gasket and seal help prevent leaks during installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following makes and models:

• Chevrolet Equinox
• Pontiac Torrent
• Saturn Vue

It is designed as a standard replacement part for these vehicles, ensuring proper fit and function when replacing the original fuel pump module.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Low fuel pressure causing engine performance issues
• Fuel pump noise or irregular operation
• Fuel leaks due to worn seals or gaskets
• Faulty vapor pressure sensor affecting emissions control

Installation Notes and Tips

Installation of the Delphi FG1294 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The included gasket and seal should be replaced to maintain a proper seal and prevent leaks. Verify the correct orientation and connection of the six blade terminals and quick connect outlets. Refer to the vehicle-specific service manual for torque specifications and detailed installation procedures. This module is position-specific (left or right), so confirm the correct side for your vehicle model.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for quality and durability. The FG1294 is a standard replacement grade part designed to provide reliable performance. It includes a vapor pressure sensor and internal strainer to support emissions compliance and fuel system protection. Warranty coverage details vary by distributor but typically include protection against defects in materials and workmanship for a specified period. Always verify warranty terms at the time of purchase.
