Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

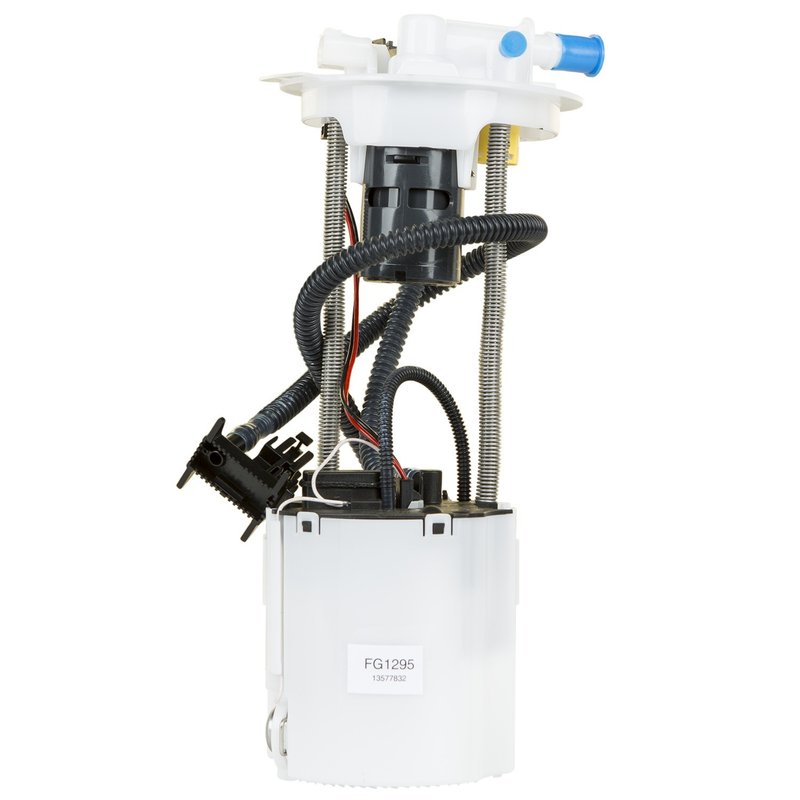

Delphi FG1295 Fuel Pump Module Assembly - Right
| Brand | Delphi FG1295 |
|---|---|
| Position | Right |
| Average Current Draw | 10 |
| Average Flow Rating | 30 |
| Fuel Level Sender Assembly Included | No |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 85.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 3 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/o Float Arm, Seals, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Strainer Included | Yes |
| System Pressure | 51 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | Yes |
| Voltage | 12.0 |
| Fits | Chevrolet and GMC · 16 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
Includes regulator. Built with a strainer, seals, and quick-connect outlets.
OE heritage. Backed by 100 years of OE experience and supplier knowledge.
Cross-references Carter P76866M, Spectra Premium SP6633M and 13506688 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG1295 Fuel Pump Module Assembly
Delphi FG1295 is a standard replacement fuel pump module assembly for gas-powered applications that require an in-tank electric pump with a built-in regulator. It is built for 2010-2017 Chevrolet Equinox and GMC Terrain coverage, including right-side applications where specified, and it uses OE-based engineering from a supplier with long-standing original equipment experience.
Key Features
- In-tank electric fuel pump module assembly for gasoline systems
- Built-in fuel pressure regulator included
- Maximum pressure rating of 85.0
- System pressure rating of 51 psi
- Average flow rating of 30
- 12.0-volt operation with 10 amp average current draw
- Quick-connect outlet design with 3 outlet ports
- Strainer and gasket or seal included
- Vapor pressure sensor included
- Standard replacement grade for OE-style service
Detailed Description
Delphi FG1295 fuel pump module assembly is engineered for direct service replacement in select Chevrolet Equinox and GMC Terrain models. The module is designed for in-tank installation and includes the regulator, strainer, gasket or seal, and vapor pressure sensor listed in the product specifications. With blade terminals, male terminal ends, and quick-connect outlet connections, this assembly supports a clean, OE-style repair for fuel delivery concerns on 2010-2017 Equinox and Terrain applications.
Delphi draws on OE heritage and broad aftermarket coverage to deliver a fuel pump module assembly that matches the needs of modern gasoline fuel systems. This part number, FG1295, cross-references Carter P76866M for the same application.
Vehicle Fitment
- Fits 2017 Chevrolet Equinox, N/A. Module has 2 electrical connectors; clean the fuel tank before installing the replacement pump. Use of fuel tank cleaning kit FC01 is recommended.
- Fits 2017 GMC Terrain, N/A. Module has 2 electrical connectors; clean the fuel tank before installing the replacement pump. Use of fuel tank cleaning kit FC01 is recommended.
- Fits 2016 Chevrolet Equinox, N/A. Clean fuel tank before installing fuel pump to prevent future seal problems.
- Fits 2016 GMC Terrain, N/A. Clean fuel tank before installing fuel pump to prevent future seal problems.
- Fits 2012-2015 Chevrolet Equinox, right. Except Partial Zero Emissions Vehicle; clean the fuel tank before installing the replacement pump to reduce contamination risk. Recommend using fuel tank cleaning kit FC01.
- Fits 2012-2015 GMC Terrain, right. Except Partial Zero Emissions Vehicle; clean the fuel tank before installing the replacement pump to reduce contamination risk. Recommend using fuel tank cleaning kit FC01.
- Fits 2010-2011 Chevrolet Equinox, right. Clean fuel tank before installing fuel pump to prevent future seal problems.
- Fits 2010-2011 GMC Terrain, right. Clean fuel tank before installing fuel pump to prevent future seal problems.
Common Fuel System Issues
- Hard starting or extended crank caused by weak fuel delivery
- Low fuel pressure or pressure drop under load
- Engine hesitation, stumble, or lean-running symptoms
- Fuel pump noise from a worn in-tank module
- Seal or contamination-related fuel system problems during replacement
Installation Notes
Before installing Delphi FG1295, inspect and clean the fuel tank to reduce the risk of contaminating the new pump and to help prevent repeat seal issues. For 2017 Chevrolet Equinox and 2017 GMC Terrain applications, verify the module configuration and electrical connector count before service. Confirm the vehicle’s fuel system requirements, connector style, and right-side application details against the original unit before installation.
Quality Assurance
Delphi builds this fuel pump module assembly using OE experience and application knowledge developed through service to major automakers. FG1295 is a standard replacement part intended to support reliable fuel delivery in the listed Chevrolet Equinox and GMC Terrain applications.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Chevrolet | Equinox | GAS | N/A | Module has 2 Electrical Connector(s); Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2017 | GMC | Terrain | GAS | N/A | Module has 2 Electrical Connector(s); Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2016 | Chevrolet | Equinox | GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2016 | GMC | Terrain | GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2015 | Chevrolet | Equinox | GAS | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2015 | GMC | Terrain | GAS | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2014 | Chevrolet | Equinox | GAS | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2014 | GMC | Terrain | GAS | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2013 | Chevrolet | Equinox | GAS | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2013 | GMC | Terrain | GAS | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2012 | Chevrolet | Equinox | GAS | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2012 | GMC | Terrain | GAS | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2011 | Chevrolet | Equinox | — | Right | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2011 | GMC | Terrain | — | Right | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2010 | Chevrolet | Equinox | — | Right | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2010 | GMC | Terrain | — | Right | Clean fuel tank before installing fuel pump to prevent future seal problems. |
