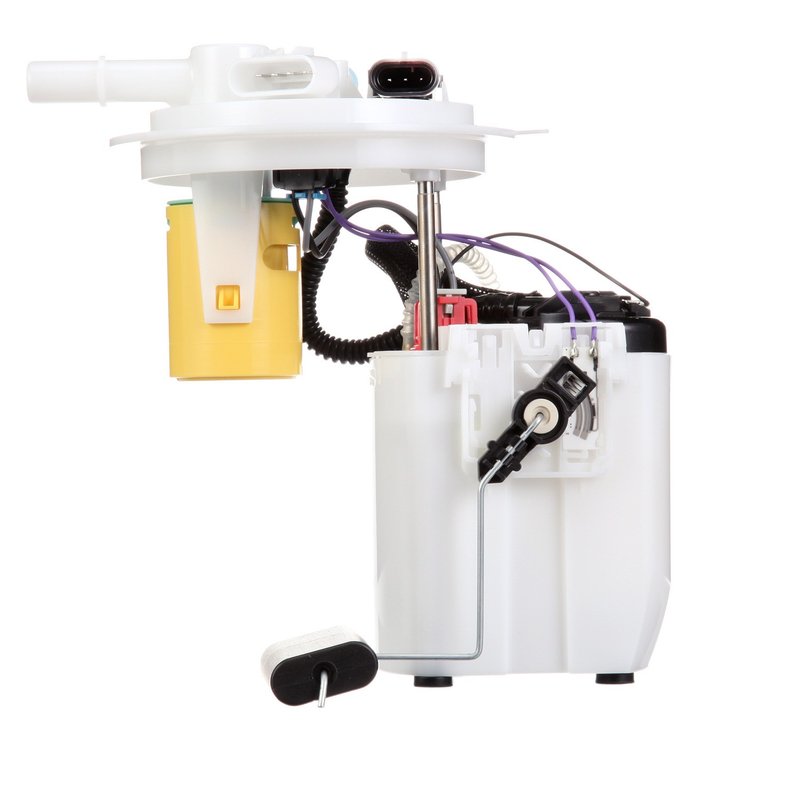

Delphi FG1297 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Buick, GMC, and Saturn

The Delphi FG1297 fuel pump module assembly is designed to provide consistent fuel delivery for select Buick Acadia, GMC Acadia, and Saturn Outlook models. Engineered for gas fuel systems, this in-tank electric fuel pump module ensures stable pressure and efficient operation.

Key Features of Delphi FG1297 Fuel Pump Module

• Outlet outside diameter: 0.375 inches for precise fuel flow
• Operates at 13.0 volts with an average current draw of 10 amps
• Includes an internal fuel pressure regulator and vapor pressure sensor
• Maximum system pressure rated at 65 psi with a standard operating pressure of 60 psi
• Equipped with a quick connect outlet type and two outlet ports
• Blade-type male terminals with four terminal connections for secure wiring
• Internal strainer included to filter fuel before pump intake
• Comes with a gasket or seal for proper installation
• Designed as a standard replacement part for gas fuel systems

Detailed Description of the Delphi FG1297 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1297) is an electric in-tank pump designed specifically for gas-powered Buick Acadia, GMC Acadia, and Saturn Outlook vehicles. It features an internal strainer inlet and a quick connect outlet with two ports, ensuring efficient fuel delivery and filtration. The module includes a built-in fuel pressure regulator and vapor pressure sensor to maintain consistent fuel system pressure up to 65 psi, supporting optimal engine performance. The blade-type male terminals with four connections provide reliable electrical contact, while the included gasket or seal helps prevent leaks during installation.

Common Applications and Issues Addressed

• Restores proper fuel pressure in Buick Acadia, GMC Acadia, and Saturn Outlook models
• Resolves fuel delivery interruptions caused by faulty or worn fuel pumps
• Eliminates engine stalling or hesitation related to inconsistent fuel flow
• Addresses fuel system leaks with included gasket or seal
• Improves fuel filtration with internal strainer to protect engine components

Installation Notes and Tips

• Compatible with in-tank fuel systems on specified Buick, GMC, and Saturn models
• Ensure electrical connections match blade-type male terminals with four terminals
• Use the included gasket or seal to prevent fuel leaks during installation
• Verify fuel line connections with quick connect outlets for secure fitment
• Follow vehicle manufacturer guidelines for fuel system depressurization before removal

Quality Assurance and Warranty Information

The Delphi FG1297 fuel pump module assembly is manufactured to meet standard replacement part specifications for Buick Acadia, GMC Acadia, and Saturn Outlook vehicles. It undergoes rigorous testing to ensure consistent fuel pressure and reliable operation. This part is backed by Delphi's quality standards, providing confidence in durability and performance. Please refer to Delphi's warranty policy for specific coverage details.
