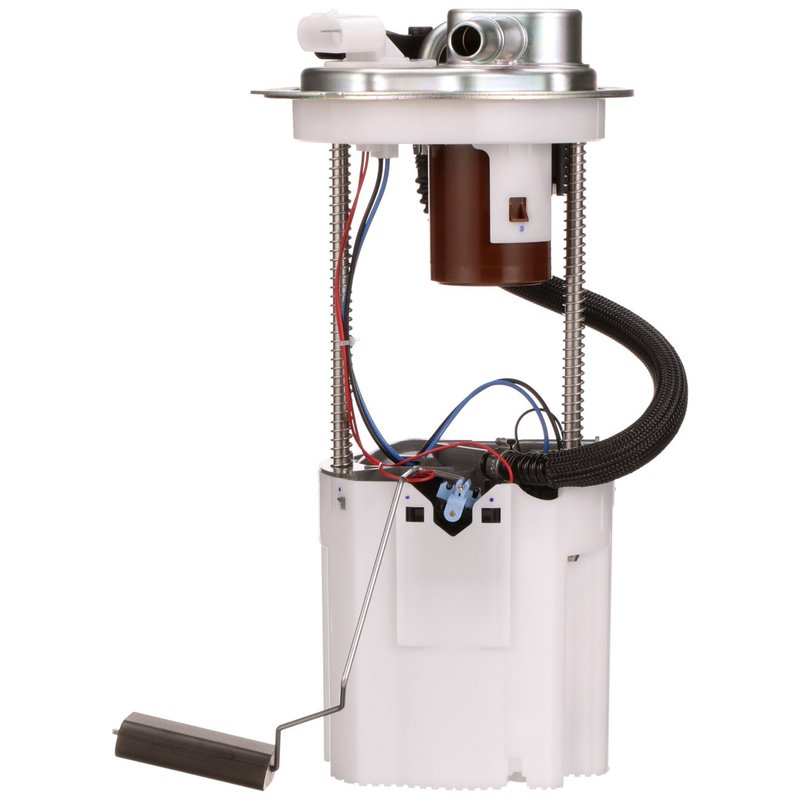

Delphi FG1304 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Delphi FG1304 fuel pump module assembly is designed specifically for Chevrolet Canyon and Colorado, as well as GMC Canyon and Colorado models. This in-tank electric fuel pump ensures consistent fuel delivery and system pressure for optimal engine performance.

• Electric fuel pump module assembly with integrated regulator and vapor pressure sensor
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375-inch outside diameter and three outlet ports
• Blade-type male terminals with four connections for reliable electrical contact
• Standard replacement grade with system pressure rated at 44 psi and maximum pressure of 80 psi

Technical Specifications and Features

The Delphi FG1304 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in Chevrolet and GMC Canyon and Colorado trucks. It features an internal strainer inlet and a quick connect outlet type with three outlets, each having a 0.375-inch outside diameter. The pump type is electric, drawing an average current of 9 amps and providing an average flow rating of 37 liters per hour. The module includes a fuel pressure regulator and a vapor pressure sensor to maintain consistent fuel delivery and emissions control. The assembly comes with a gasket or seal and an internal strainer to protect the fuel system from contaminants. Electrical connections are made via four blade-type male terminals, ensuring secure and stable power supply.

Applications and Common Issues Addressed

• Restores proper fuel pressure and flow in Chevrolet and GMC Canyon and Colorado trucks
• Resolves fuel delivery problems such as engine stalling or hesitation
• Replaces faulty or worn fuel pump modules causing poor engine performance
• Addresses fuel system leaks with included gasket and seal
• Improves fuel system reliability by filtering contaminants with the internal strainer

Installation Notes and Tips

Installation of the Delphi FG1304 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The included gasket or seal must be properly seated to prevent fuel leaks. Use appropriate tools to connect the quick connect outlets and blade terminals securely. Verify system pressure after installation to confirm proper operation. This module does not include a fuel level sender assembly, so the existing float arm should be retained if applicable.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for Chevrolet and GMC trucks. The FG1304 is a standard replacement grade part designed for durability and consistent performance. It includes a vapor pressure sensor to support emissions compliance. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always consult product documentation or authorized sources for detailed warranty information.
