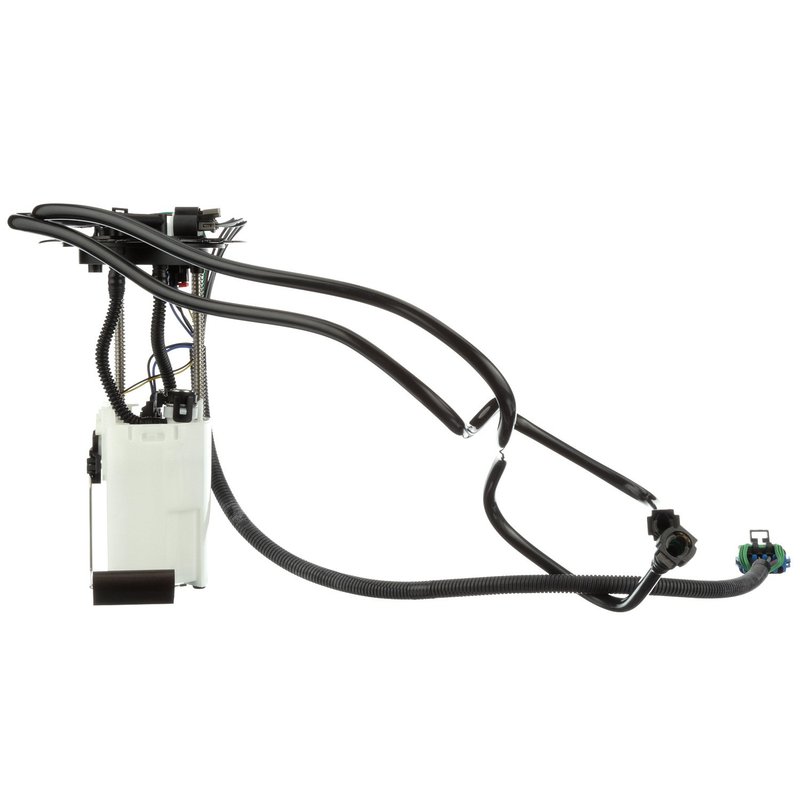

Delphi FG1307 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet Cobalt and Saturn Ion

The Delphi FG1307 fuel pump module assembly is designed specifically for in-tank installation in Chevrolet Cobalt and Saturn Ion models. Engineered to deliver consistent fuel flow and pressure, this electric fuel pump module ensures efficient fuel delivery for gasoline engines.

Key Features of Delphi FG1307 Fuel Pump Module

• Electric fuel pump with a 12.0-volt rating suitable for gas engines
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Maximum pressure rating of 80 psi and system pressure of 58 psi for stable fuel delivery
• Equipped with an external strainer inlet and female quick connect outlets (two outlets, 0.375 inch diameter)
• Seven female blade terminals for secure electrical connections
• Includes regulator, gasket, seal, and strainer for complete module functionality
• Average flow rating of 35 and average current draw of 8 amps for efficient operation
• Compatible with Chevrolet Cobalt and Saturn Ion fuel systems

Detailed Description of the Delphi FG1307 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1307) is a standard replacement designed for in-tank installation in Chevrolet Cobalt and Saturn Ion vehicles. It features a 12-volt electric pump optimized for gasoline fuel delivery, maintaining system pressure at 58 psi with a maximum pressure capacity of 80 psi. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The external strainer inlet and included strainer help protect the fuel system from contaminants, while the female quick connect outlets ensure secure fuel line connections. The seven female blade terminals facilitate reliable electrical connections, supporting the pump's average current draw of 8 amps. This assembly also includes a regulator and necessary gaskets and seals to maintain system integrity.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet Cobalt and Saturn Ion
• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel contamination issues with included external strainer
• Restores proper electrical connectivity with blade terminal design

Installation Notes and Tips

• Designed for in-tank installation; ensure proper handling to avoid damage to the float arm and strainer
• Verify compatibility with Chevrolet Cobalt and Saturn Ion fuel systems before installation
• Use included gasket and seal to prevent fuel leaks and maintain system pressure
• Check electrical connections for secure fit on the seven female blade terminals
• Follow vehicle manufacturer guidelines for fuel system servicing and safety precautions

Quality Assurance and Warranty Information

The Delphi FG1307 fuel pump module assembly is manufactured to meet OEM specifications for Chevrolet and Saturn vehicles. It undergoes rigorous testing to ensure reliable performance and durability. This standard replacement part includes a fuel level sender and regulator, providing a comprehensive solution for fuel delivery issues. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
