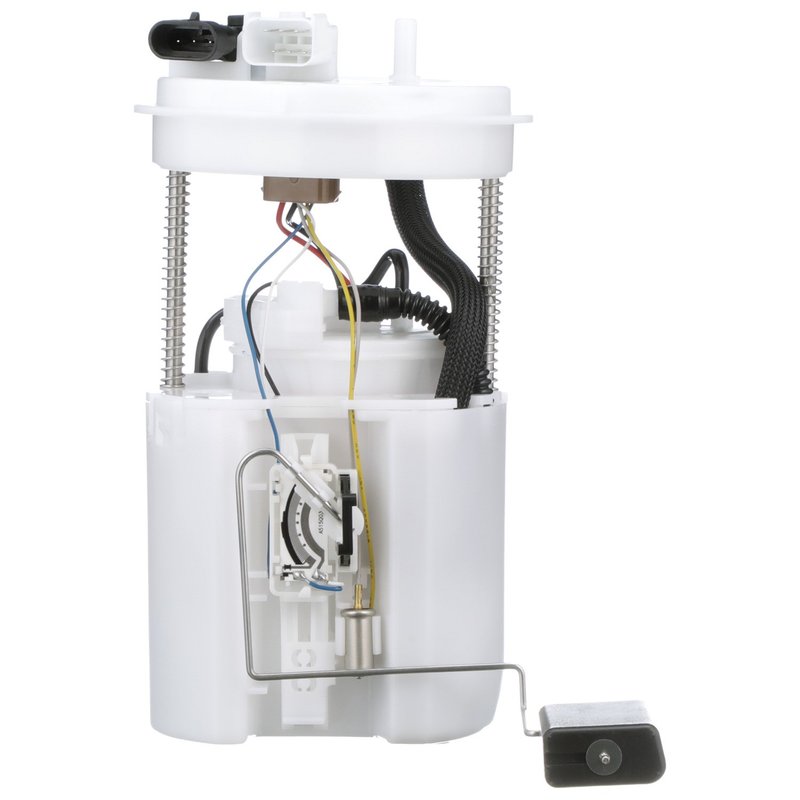

Delphi FG1309 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1309 fuel pump module assembly is designed for reliable fuel delivery in select Chevrolet and Pontiac models. Engineered as an in-tank electric fuel pump, it ensures consistent fuel pressure and flow for optimal engine performance in vehicles like the Chevrolet Aveo, Aveo5, and Pontiac G3.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chevrolet Aveo, Aveo5, and Pontiac G3 models
• 12-volt operation with a maximum pressure of 94 psi and system pressure of 58 psi
• Includes internal strainer and regulator for clean fuel delivery
• Quick connect outlet with 0.313 inch outside diameter
• Blade-type male terminals, 6-terminal quantity
• Vapor pressure sensor included for emissions control

Technical Specifications and Features

The Delphi FG1309 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet, facilitating easy installation and maintenance. The pump delivers an average flow rating of 45 liters per hour with an average current draw of 7 amps, supporting efficient fuel delivery under various driving conditions. The integrated fuel level sender assembly provides accurate fuel level readings, while the included regulator maintains system pressure at 58 psi, with a maximum pressure rating of 94 psi. The module uses blade-type male terminals with six connections, ensuring secure electrical interfacing. This assembly is intended as a standard replacement part for in-tank fuel pump applications in compatible Chevrolet and Pontiac vehicles.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Aveo
• Chevrolet Aveo5
• Pontiac G3

It is designed to replace the original equipment fuel pump module in these models, restoring proper fuel delivery and system pressure for smooth engine operation.

Common Issues Addressed by the Delphi FG1309

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Low fuel pressure causing engine hesitation or stalling
• Fuel pump noise or irregular operation
• Emission control problems related to vapor pressure sensor malfunction

Installation Notes and Tips

Installation of the Delphi FG1309 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The quick connect outlet and blade terminals simplify connection, but verify all seals and fittings are secure to prevent leaks. Note that this assembly does not include a gasket or lock ring, so reuse or replacement of these components may be necessary depending on vehicle condition. Follow the included instruction sheet carefully for proper installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for durability and performance. The FG1309 is a standard replacement grade part, designed for reliable operation in compatible Chevrolet and Pontiac vehicles. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation or supplier for detailed warranty information.
