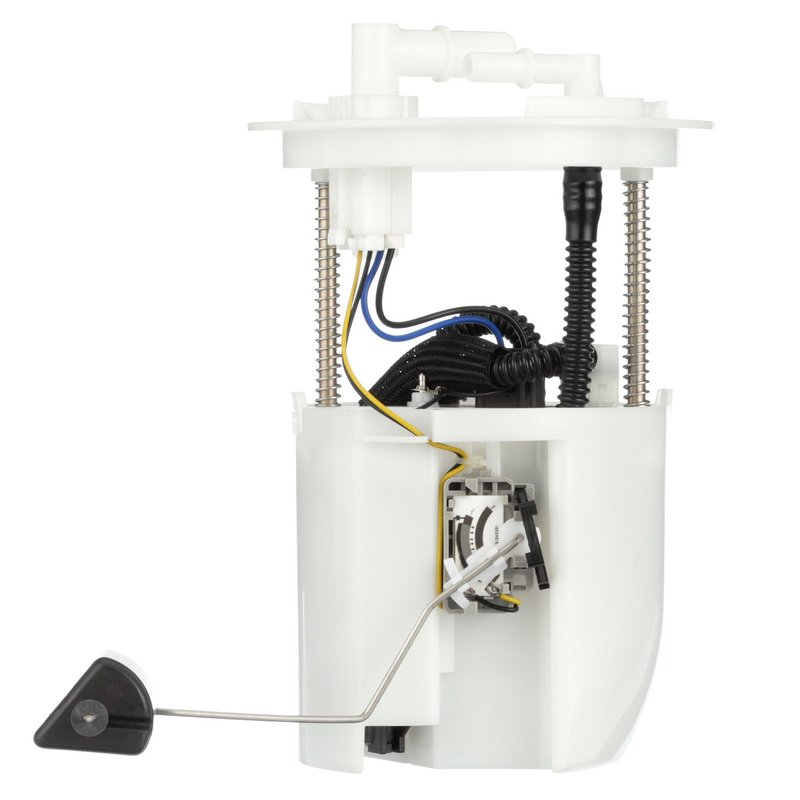

Delphi FG1311 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Edge and Lincoln MKX

The Delphi FG1311 fuel pump module assembly is designed to provide consistent fuel delivery for your Ford Edge or Lincoln MKX. Engineered for gas-powered vehicles, this in-tank electric fuel pump ensures efficient operation and precise fuel level monitoring.

• 12.0 Volt electric fuel pump with an average flow rating of 60 liters per hour
• Compatible with gas fuel systems, featuring an internal strainer and quick connect outlets
• Includes fuel level sender assembly with float arm and gasket seal for secure installation
• Four male blade terminals for reliable electrical connections
• Designed for system pressure of 58 psi and maximum pressure of 94 psi

Technical Details and Features

The Delphi FG1311 fuel pump module assembly operates at 12 volts and is built for gas fuel systems in Ford Edge and Lincoln MKX models. It features an internal strainer inlet and quick connect outlet types, with two outlets measuring 0.375 inches in diameter. The pump draws an average current of 7 amps and maintains system pressure at 58 psi, with a maximum pressure rating of 94 psi. The assembly includes a fuel level sender assembly with resistance values ranging from 10 ohms (full) to 180 ohms (empty), providing accurate fuel level readings. The module comes with a gasket or seal to ensure a tight fit and prevent leaks during installation.

Applications and Common Issues Addressed

• Restores proper fuel delivery in Ford Edge and Lincoln MKX gas engines
• Resolves fuel pump failure symptoms such as engine stalling or hesitation
• Fixes inaccurate fuel gauge readings with the included fuel level sender assembly
• Eliminates fuel leaks with the included gasket seal
• Addresses electrical connection issues with four blade terminals for secure wiring

Installation Notes and Tips

Installation of the Delphi FG1311 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket seal is properly seated to prevent fuel leaks. The four male blade terminals should be connected securely to the vehicle’s wiring harness. Use caution when handling the internal strainer and float arm to avoid damage. Follow the included instruction sheet for detailed installation guidance.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Ford and Lincoln vehicles. It includes a fuel level sender assembly and gasket seal for a complete solution. Delphi products undergo rigorous testing to ensure durability and reliable performance. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
