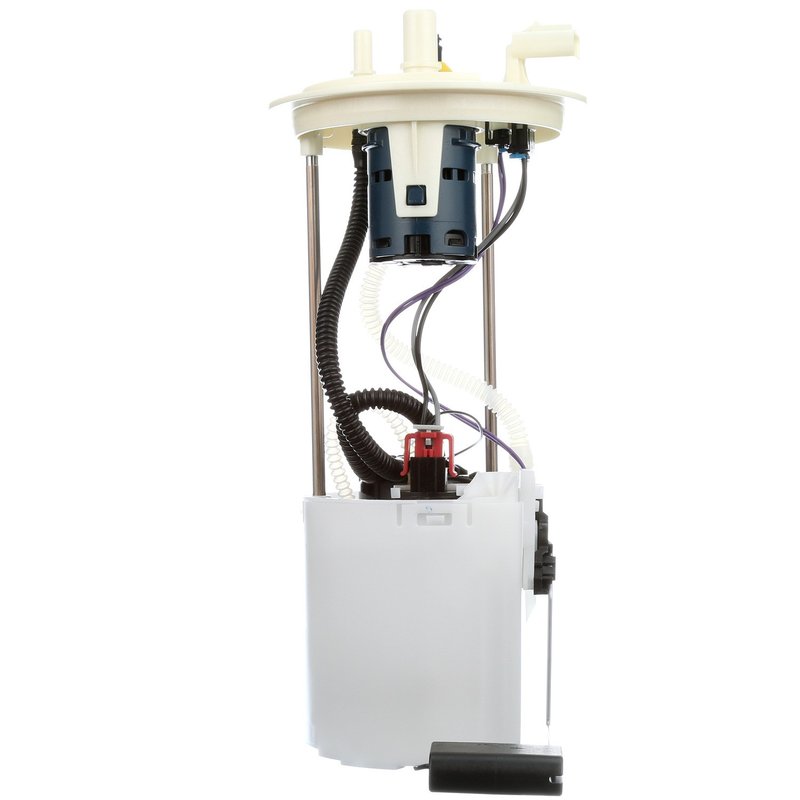

Delphi FG1314 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1314 fuel pump module assembly is designed for reliable fuel delivery in Ford E-150, E-250, and E-350 Super Duty vehicles. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for flex fuel applications.

• Compatible with Ford E-150, E-250, and E-350 Super Duty models
• Electric fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, and gasket for secure installation
• Operates at 13.0 volts with a system pressure of 51 psi
• Features quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for reliable electrical connection
• Average flow rating of 37 liters per hour and current draw of 11 amps

Technical Details and Specifications

The Delphi FG1314 fuel pump module assembly is engineered to meet the fuel delivery requirements of Ford E-Series vans, including the E-150, E-250, and E-350 Super Duty. This electric pump operates at 13 volts and maintains a system pressure of 51 psi, with a maximum pressure rating of 78 psi. The module includes an internal strainer and a fuel level sender assembly with resistance values ranging from 10 ohms (full) to 180 ohms (empty), providing accurate fuel level readings.

The fuel pump features a quick connect outlet type with three outlets, each having an outside diameter of 0.375 inches. The inlet is equipped with an internal strainer to prevent debris from entering the fuel system. Electrical connections are made via four male blade terminals, ensuring secure and stable power delivery. This module is designed for flex fuel compatibility, making it suitable for vehicles running on ethanol blends.

Applications and Problem Solving

• Restores proper fuel pressure and flow in Ford E-150, E-250, and E-350 Super Duty models
• Replaces faulty or worn fuel pump modules causing engine hesitation or stalling
• Resolves inaccurate fuel level readings with integrated sender assembly
• Eliminates fuel delivery interruptions due to clogged strainers or damaged pumps
• Supports flex fuel operation for vehicles using ethanol-blended fuels

Installation Notes and Tips

Installation of the Delphi FG1314 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket or seal included with the module is properly seated to prevent fuel leaks. Verify electrical connections to the four male blade terminals are secure and free of corrosion. Use caution when handling the float arm and fuel level sender assembly to avoid damage. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1314 is a standard replacement grade part designed for durability and consistent performance in Ford E-Series vans. This product includes a gasket and strainer to ensure a complete and reliable installation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
