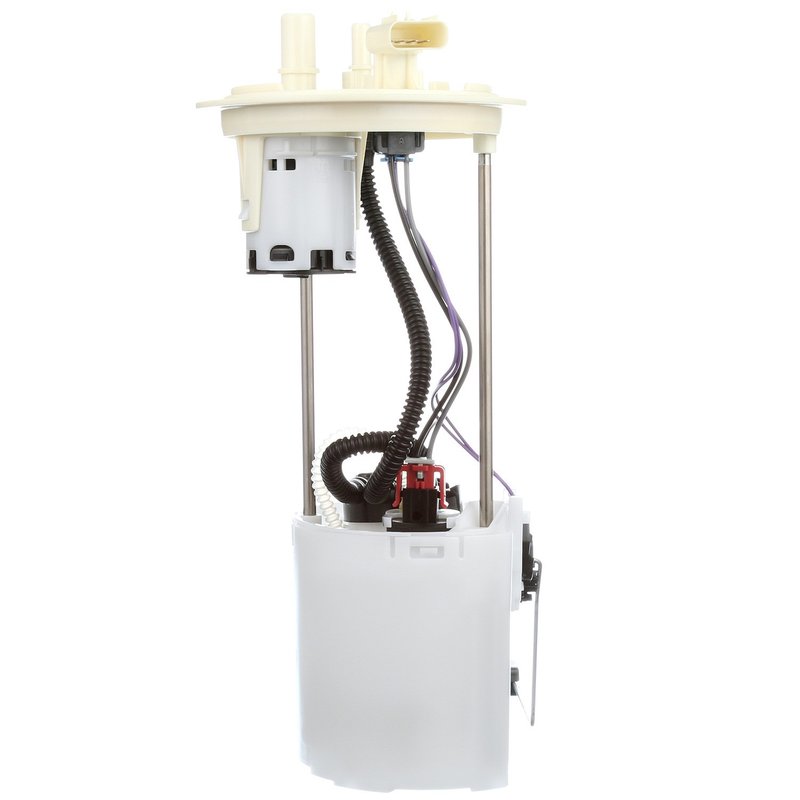

Delphi FG1316 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford F-150

The Delphi FG1316 fuel pump module assembly is designed specifically for Ford F-150 trucks, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance for flex fuel systems.

Key Features of Delphi FG1316 Fuel Pump Module

• Voltage: 13.0 volts for stable electrical operation
• Includes regulator for maintaining system pressure at 58 psi
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Equipped with an internal strainer and inlet strainer to protect the fuel system
• Four blade-type male terminals for secure electrical connections
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Designed for flex fuel compatibility
• Average flow rating of 37 liters per hour and average current draw of 11 amps
• Comes with gasket/seal and instruction sheet for installation

Detailed Description of Delphi FG1316 Fuel Pump Module Assembly

The Delphi FG1316 is an electric fuel pump module assembly engineered for in-tank installation in Ford F-150 models. It features a built-in fuel pressure regulator that maintains a consistent system pressure of 58 psi, ensuring efficient fuel delivery to the engine. The module includes an internal strainer and inlet strainer to prevent contaminants from entering the fuel system, enhancing durability and performance. The quick connect outlet type with two outlets and a 0.375-inch outside diameter allows for straightforward fuel line connections. The four blade-type male terminals provide reliable electrical connectivity, supporting the pump's 13-volt operation and average current draw of 11 amps. Additionally, the integrated fuel level sender assembly with float arm offers precise fuel level readings, compatible with flex fuel systems. This standard replacement grade module comes complete with a gasket/seal and installation instructions to facilitate proper setup.

Common Applications and Issues Addressed

• Replacement of failing or noisy fuel pumps in Ford F-150 flex fuel models
• Resolving inconsistent fuel pressure or delivery problems
• Fixing inaccurate fuel gauge readings due to faulty sender assemblies
• Addressing fuel contamination issues with internal strainer protection
• Upgrading to a reliable in-tank electric fuel pump module for improved fuel system performance

Installation Notes and Tips

• Ensure compatibility with Ford F-150 models before installation
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Replace the gasket/seal included in the package to prevent fuel leaks
• Follow the instruction sheet closely for proper electrical connections and mounting
• Verify system pressure after installation to confirm regulator functionality

Quality Assurance and Warranty Information

The Delphi FG1316 fuel pump module assembly is manufactured to meet standard replacement quality requirements. It undergoes rigorous testing to ensure reliable operation under normal driving conditions. This part includes a fuel level sender assembly and is designed for flex fuel compatibility. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
