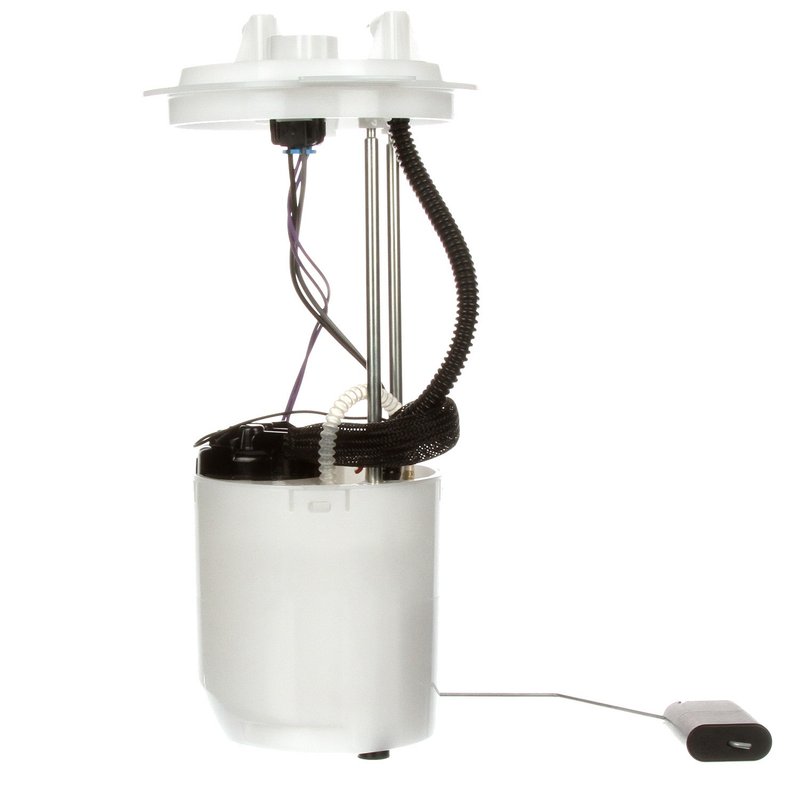

Delphi FG1317 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Escape and Mazda Tribute

The Delphi FG1317 fuel pump module assembly is designed to provide consistent fuel delivery for select Ford, Mazda, and Mercury vehicles. Engineered as a direct replacement, this in-tank electric fuel pump ensures proper fuel flow and pressure for optimal engine performance.

• Compatible with Ford Escape, Mazda Tribute, and Mercury Mariner models
• 12-volt electric pump with an average flow rating of 20 liters per hour
• Includes internal strainer and fuel level sender assembly with float arm
• Quick connect outlet with 0.375-inch outside diameter for easy installation
• Standard replacement grade with included gasket/seal and instruction sheet

Technical Specifications and Features

The Delphi FG1317 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with two outlets measuring 0.375 inches in diameter. The pump delivers a system pressure of 55 psi with a maximum pressure rating of 65 psi, ensuring steady fuel supply under various driving conditions. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. Electrical connections are made via four male blade terminals, supporting reliable power delivery with resistance values ranging from 10 ohms (full) to 180 ohms (empty). The average current draw is approximately 11 amps, suitable for the fuel system requirements of compatible vehicles.

Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Escape, Mazda Tribute, and Mercury Mariner
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions from clogged or damaged internal strainers
• Restores proper fuel flow in vehicles experiencing starting difficulties

Installation Notes and Tips

Installation of the Delphi FG1317 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket/seal included in the package is properly seated to prevent fuel leaks. Use caution when disconnecting and reconnecting the four blade terminals, verifying correct terminal orientation and secure connections. The quick connect outlet facilitates straightforward hose attachment, but confirm compatibility with existing fuel lines. Follow the provided instruction sheet carefully to maintain safety and proper installation procedures.

Quality Assurance and Warranty Information

Delphi manufactures the FG1317 fuel pump module assembly to meet standard replacement quality requirements. Each unit undergoes testing to ensure consistent fuel flow and electrical performance. The product includes a gasket and instruction sheet to support proper installation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, as warranty terms may vary.
