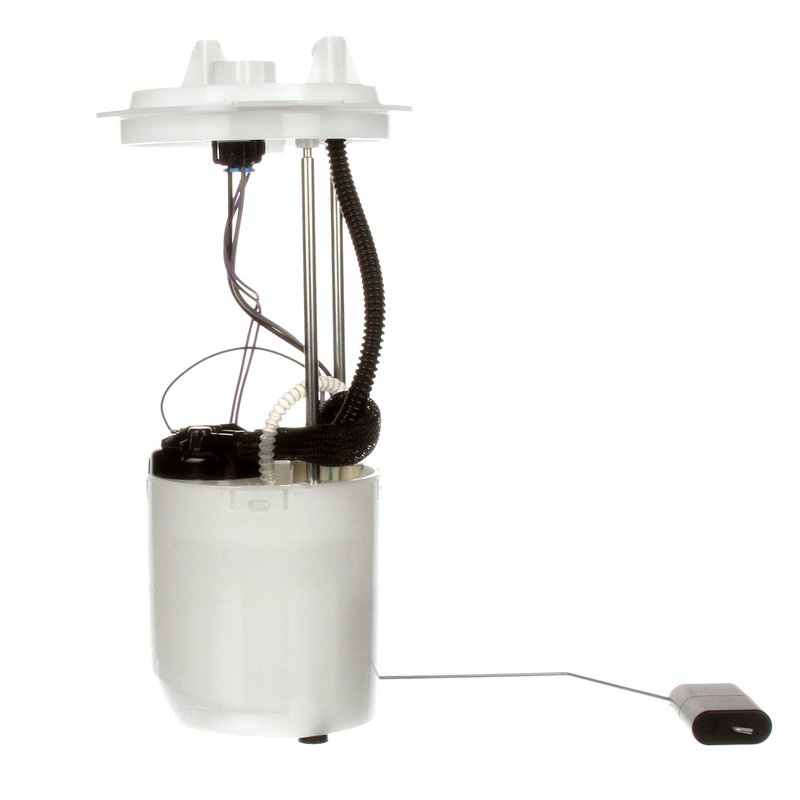

Delphi FG1318 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Escape and Mazda Tribute

The Delphi FG1318 fuel pump module assembly is designed for in-tank installation, providing consistent fuel delivery for Ford Escape, Mazda Tribute, and Mercury Mariner models. This electric fuel pump module supports flex fuel systems and includes essential components for efficient operation.

• 12.0 Volt electric fuel pump with an average flow rating of 20 liters per hour
• Internal strainer and included strainer inlet for effective fuel filtration
• Quick connect outlet type with 0.375 inch outside diameter and dual outlets
• Includes fuel level sender assembly with float arm and gasket seal
• Blade-type male terminals with four terminal quantity for secure electrical connections
• System pressure rated at 58 psi with a maximum pressure of 78 psi
• Standard replacement grade compatible with flex fuel systems

Technical Details and Compatibility

The Delphi FG1318 fuel pump module assembly operates at 12 volts and draws an average current of 11 amps, ensuring reliable fuel delivery under various driving conditions. It features a resistance range from 180 ohms when empty to 10 ohms when full, allowing accurate fuel level readings. The module is designed for in-tank installation and includes an internal strainer to prevent contaminants from entering the fuel system. The quick connect outlet with two outlets and a 0.375 inch diameter ensures compatibility with factory fuel lines. This module is compatible with Ford Escape, Mazda Tribute, and Mercury Mariner vehicles equipped with flex fuel systems.

Common Applications and Problem Resolution

• Restores proper fuel pressure and flow in Ford Escape and Mazda Tribute models
• Resolves fuel delivery issues such as engine stalling or hesitation
• Replaces faulty fuel level sender assemblies for accurate fuel gauge readings
• Eliminates fuel pump noise caused by worn or damaged components
• Addresses fuel contamination problems with included internal strainer

Installation Notes and Tips

Installation of the Delphi FG1318 fuel pump module assembly requires removal of the fuel tank for in-tank replacement. Ensure all electrical connections use the blade-type male terminals provided, and verify the gasket seal is properly seated to prevent leaks. Use caution when handling the float arm to avoid damage. It is recommended to follow vehicle-specific service manuals for torque specifications and safety precautions during installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for durability and performance. The FG1318 is a standard replacement grade part that includes a gasket seal and fuel level sender assembly for comprehensive system restoration. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship to ensure reliability in Ford Escape, Mazda Tribute, and Mercury Mariner applications.
