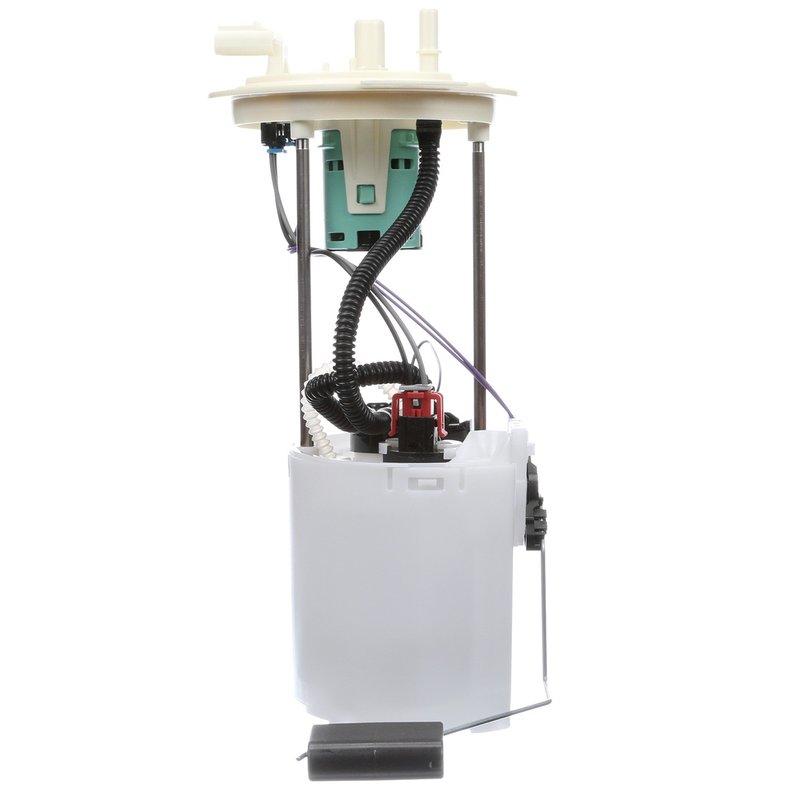

Delphi FG1319 Fuel Pump Module Assembly

Delphi FG1319 Fuel Pump Module Assembly

Delphi FG1319 is an in-tank fuel pump module assembly for gas and flex-fuel applications. It combines the pump, fuel level sender, regulator, seal, and strainer in one OE-style replacement for service on select Ford Expedition and Lincoln Navigator models.

• In-tank electric fuel pump module assembly
• 12-volt operation with blade terminals and 4-terminal connection
• Maximum pressure: 78 psi; system pressure: 58 psi
• Fuel level sender assembly included
• Regulator included
• Strainer and gasket/seal included
• Quick-connect outlet design with 2 outlets
• Standard replacement for gas/flex fuel systems

OE-Style Fuel Delivery Design

Built from Delphi’s OE heritage and aftermarket engineering knowledge, FG1319 is specified for direct fuel delivery service in the tank. It uses an internal strainer, quick-connect outlet, and integrated sender assembly to restore fuel supply and tank level reporting on 2009-2014 Ford Expedition and 2009-2014 Lincoln Navigator applications. This part cross-references Standard Ignition PS-414 for the same application.

Common Issues This Assembly Can Address

• Hard starting caused by weak or inconsistent fuel pressure
• Engine hesitation or stalling from fuel delivery loss
• Inaccurate fuel gauge readings from a worn sender
• Fuel pressure regulation problems within the tank module
• Poor drivability related to a failing in-tank pump assembly

Installation Notes and Tips

• Fits 2009-2014 Ford Expedition, N/A. Clean fuel tank before installing fuel pump to prevent future seal problems.
• Fits 2009-2014 Lincoln Navigator, N/A. Clean fuel tank before installing fuel pump to prevent future seal problems.
• Verify outlet connection style, terminal layout, and fuel system requirements before installation.
• Inspect the tank and sealing surfaces carefully so the new seal seats properly.

Quality Assurance

Delphi draws on more than 100 years of OE experience and supplies components to major automakers, with OE-based design knowledge built into its aftermarket fuel system parts. FG1319 is a standard replacement fuel pump module assembly engineered for the listed vehicle applications.
