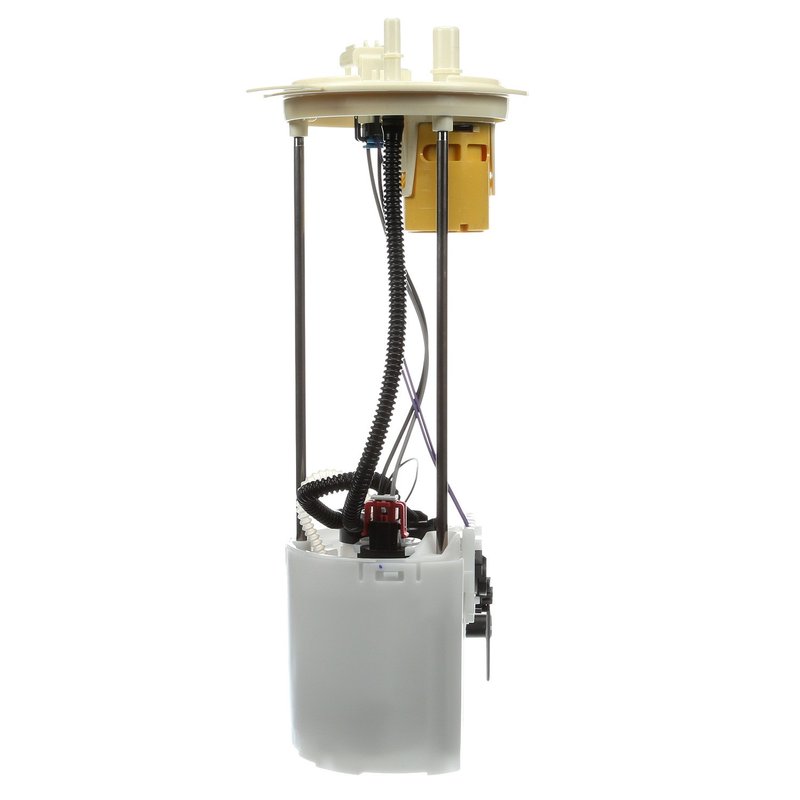

Delphi FG1326 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Super Duty Trucks

The Delphi FG1326 fuel pump module assembly is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance in flex-fuel applications.

• Electric fuel pump with integrated fuel level sender assembly
• Includes regulator and internal strainer for clean fuel flow
• Compatible with flex fuel systems in Ford F-250 and F-350 Super Duty
• Features 0.375 inch outlet outside diameter and quick connect outlet type
• Operates at 13.0 volts with a system pressure of 58 psi and maximum pressure of 78 psi
• Four blade-type male terminals for secure electrical connections
• Comes with gasket and seal for proper installation
• Standard replacement grade part number FG1326 by Delphi

Technical Details and Specifications

The Delphi FG1326 fuel pump module assembly is engineered for durability and precise fuel delivery. It operates at an average current draw of 10 amps and provides an average flow rating of 37 liters per hour. The internal strainer and included fuel strainer inlet help prevent contaminants from entering the fuel system. The module features two quick connect outlets with a 0.375 inch outside diameter, ensuring compatibility with factory fuel lines. The four blade-type male terminals provide reliable electrical connections, supporting the 13.0-volt electric pump. The assembly includes a fuel level sender assembly with resistance values ranging from 10 ohms (full) to 180 ohms (empty), allowing accurate fuel gauge readings. This module is designed for in-tank installation and is compatible with flex fuel types used in Ford Super Duty trucks.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Ford models:

• Ford F-250 Super Duty
• Ford F-350 Super Duty

It is intended for use in flex fuel systems requiring a reliable in-tank electric fuel pump with integrated fuel level sending capabilities. The Delphi FG1326 is a standard replacement part suitable for maintaining proper fuel pressure and flow in these heavy-duty trucks.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pressure drops affecting engine performance and fuel efficiency
• Contaminated fuel causing clogging or damage to fuel system components
• Electrical connection failures leading to pump malfunction

Installation Notes and Tips

When installing the Delphi FG1326 fuel pump module assembly, ensure the following:

• Verify compatibility with your Ford F-250 or F-350 Super Duty model year and flex fuel system
• Use the included gasket and seal to prevent fuel leaks
• Handle the fuel level sender assembly carefully to avoid damage
• Check all electrical connections for secure fitment of the four blade-type male terminals
• Follow manufacturer instructions for proper torque and installation procedures

Quality Assurance and Warranty

Delphi manufactures the FG1326 fuel pump module assembly to meet standard replacement quality requirements. The part undergoes rigorous testing to ensure consistent fuel delivery, pressure regulation, and electrical reliability. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects to provide confidence in product durability and performance.
