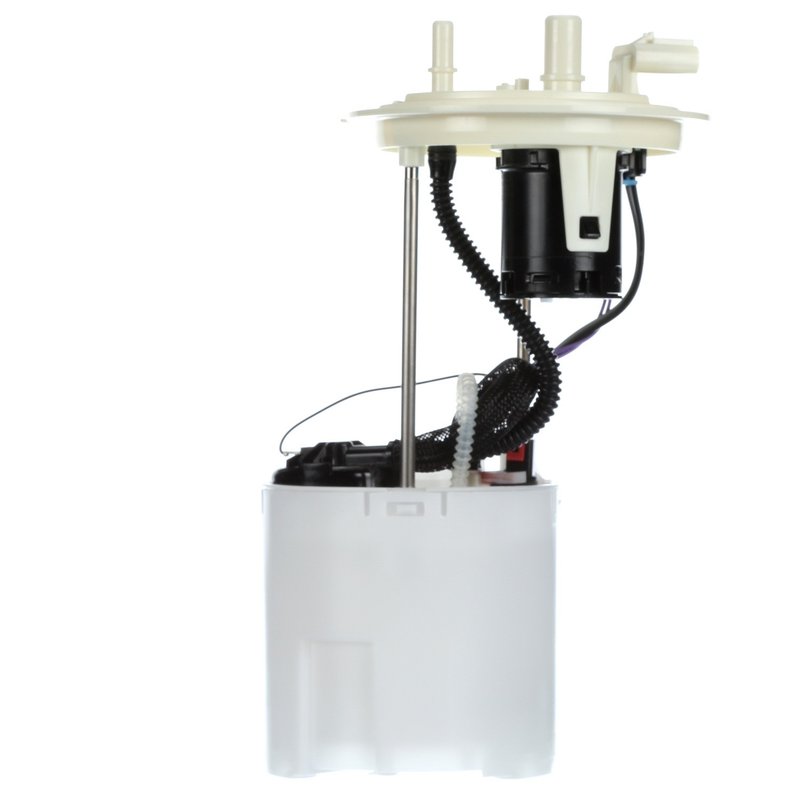

Delphi FG1328 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Ford F-150

The Delphi FG1328 fuel pump module assembly is designed specifically for Ford F-150 trucks, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for efficient operation.

Key Features of Delphi FG1328 Fuel Pump Module

• 12.0 Volt electric fuel pump with an average flow rating of 80 liters per hour
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Internal strainer inlet and quick connect outlet with 0.375 inch outside diameter
• Regulator and gasket/seal included for proper fuel pressure management and leak prevention
• Blade-type male terminals with four connections for secure electrical interface
• Designed for gasoline fuel systems with a maximum pressure rating of 78 psi and system pressure of 65 psi
• Standard replacement grade suitable for maintaining factory specifications

Detailed Description of the Delphi FG1328 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1328) is engineered for use in Ford F-150 models requiring an in-tank electric fuel pump. The module features an internal strainer inlet to protect the pump from contaminants and a quick connect outlet for straightforward installation. The integrated fuel level sender assembly provides accurate fuel tank readings, helping maintain optimal vehicle operation. With a maximum pressure of 78 psi and system pressure of 65 psi, this pump module supports consistent fuel delivery under various driving conditions. The included regulator ensures stable fuel pressure, while the gasket and seal help prevent leaks. Electrical connections use four blade-type male terminals, designed for compatibility with the vehicle’s wiring harness.

Common Applications and Issues Addressed

• Replacement of faulty or worn fuel pump modules in Ford F-150 trucks
• Resolving fuel delivery problems such as engine hesitation or stalling
• Fixing inaccurate fuel gauge readings due to a malfunctioning fuel level sender
• Addressing fuel pressure inconsistencies that affect engine performance
• Eliminating fuel leaks caused by damaged seals or gaskets in the fuel pump assembly

Installation Notes and Tips

• Ensure the vehicle is safely lifted and the fuel tank is properly supported before removal
• Disconnect the battery to prevent electrical hazards during installation
• Carefully remove the old fuel pump module to avoid damaging the fuel tank or lines
• Verify that the gasket and seal are properly seated to prevent leaks
• Reconnect all electrical terminals securely, matching the four blade-type male connectors
• Test the fuel pump operation and fuel gauge accuracy before completing reassembly

Quality Assurance and Warranty Information

The Delphi FG1328 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. This standard replacement part undergoes rigorous quality control to ensure durability and reliable performance in Ford F-150 vehicles. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship to provide confidence in your purchase.
