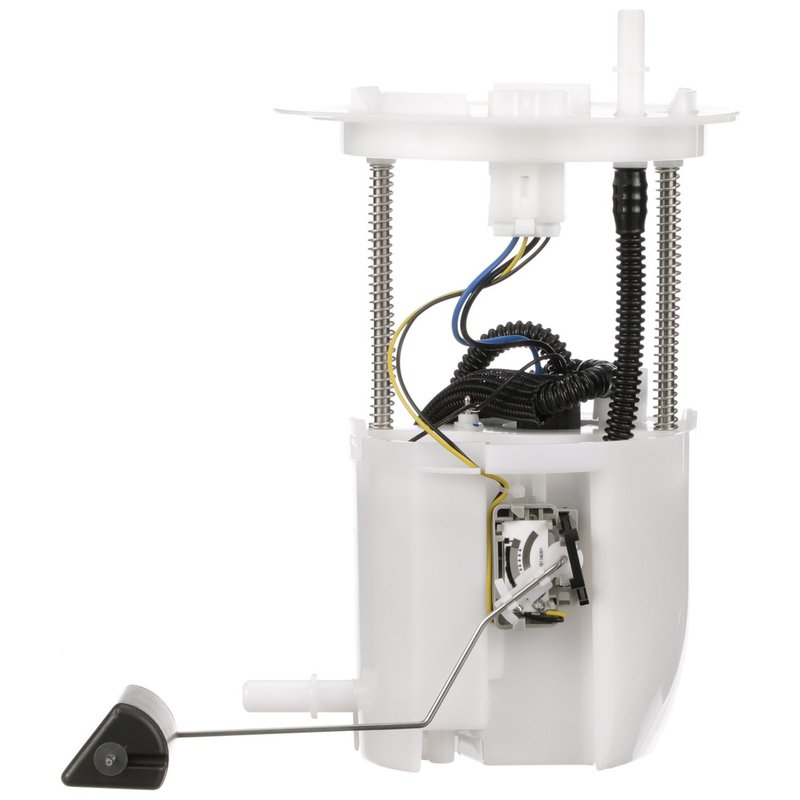

Delphi FG1329 Fuel Pump Module Assembly - Right

Delphi Fuel Pump Module Assembly for Ford Explorer

The Delphi FG1329 fuel pump module assembly is designed specifically for Ford Explorer models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports gas fuel systems with precise electrical and mechanical specifications.

• Electric in-tank fuel pump with integrated fuel level sender assembly
• Compatible with 12.0-volt systems and gas fuel type
• Maximum pressure rating of 58 psi and system pressure of 52 psi
• Includes internal strainer and gasket for secure installation
• Features a quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for electrical connection
• Average flow rating of 32 gallons per hour and average current draw of 9 amps
• Standard replacement grade part with included float arm and instruction sheet

Technical Details and Specifications

The Delphi FG1329 fuel pump module assembly is engineered for precise fuel delivery in Ford Explorer vehicles. It operates at 12 volts and is designed for gasoline fuel systems. The pump features an internal strainer inlet and a quick connect outlet, ensuring efficient fuel flow and filtration. The outlet diameter measures 0.375 inches, compatible with standard fuel lines. Electrical connections are made via four male blade terminals, providing secure and reliable power delivery. The module includes a fuel level sender assembly with resistance values ranging from 10 ohms (full) to 180 ohms (empty), enabling accurate fuel gauge readings. The pump maintains a system pressure of 52 psi and can handle a maximum pressure of 58 psi, supporting consistent engine performance.

Applications and Problem Solving

• Replaces faulty or worn fuel pump modules in Ford Explorer gas engines
• Resolves issues with inconsistent fuel pressure or flow
• Corrects inaccurate fuel level readings due to sender assembly failure
• Eliminates fuel delivery interruptions caused by clogged strainers
• Addresses electrical connection problems with blade terminal design

Installation Notes and Tips

Installation of the Delphi FG1329 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket included is properly seated to prevent fuel leaks. Verify electrical connections match the four male blade terminals on the vehicle harness. Use the provided instruction sheet for detailed installation guidance. It is recommended to inspect fuel lines and replace any worn components during installation to maintain system integrity.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Ford Explorer vehicles. It includes a gasket and strainer to ensure proper sealing and filtration. While specific warranty details are not provided, Delphi parts typically adhere to industry quality standards for durability and performance.
