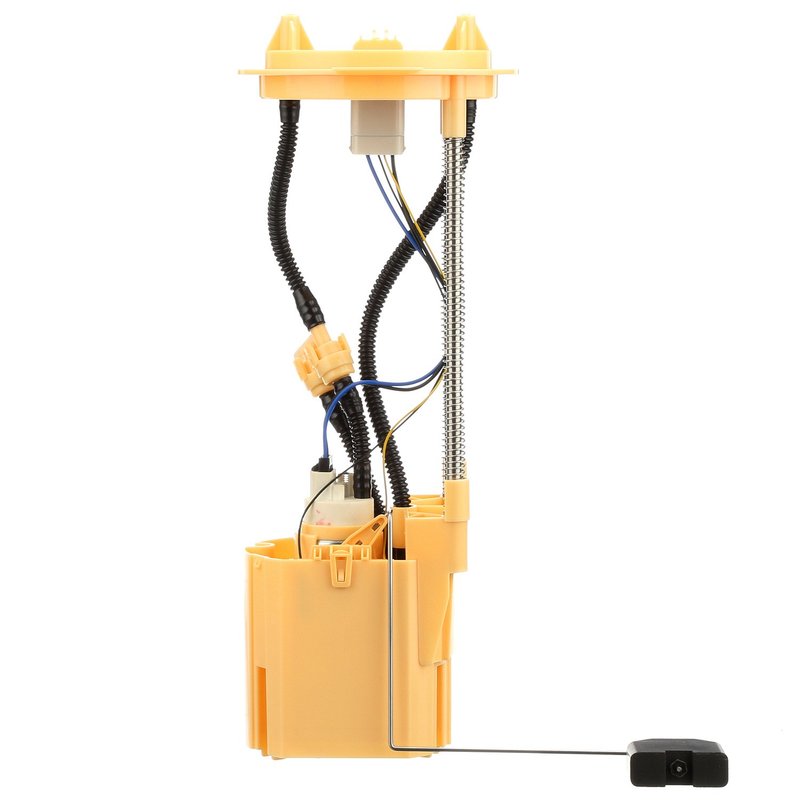

Delphi FG1330 Fuel Pump Module Assembly

Delphi FG1330 Fuel Pump Module Assembly

The Delphi FG1330 fuel pump module assembly is a standard replacement for diesel applications that require in-tank fuel delivery, pressure regulation, and fuel level sending in one unit. Built from Delphi’s OE heritage and application knowledge, it is engineered for 12-volt systems and direct replacement service on select Dodge Ram 2500 and Ram 3500 diesel trucks.

Key Features

• In-tank electric fuel pump module assembly for diesel fuel systems
• 12.0-volt operation with a maximum pressure rating of 29.0
• Integrated regulator included for controlled fuel delivery
• Fuel level sender assembly included for accurate tank level reporting
• Strainer included with internal strainer design
• Quick connect outlet type with two outlets and 0.375 in. outlet outside diameter
• Blade terminals, male terminal gender, and 4 terminal quantity
• Gasket or seal included for installation
• Standard replacement part for select OE-style applications

Detailed Description

Delphi FG1330 is a fuel pump module assembly designed for diesel fuel delivery in the tank-mounted configuration. It combines the pump, regulator, strainer, seal, and fuel level sender assembly into a service-ready module for vehicles that need stable fuel pressure and reliable tank-level feedback. The unit is built for 12-volt electrical systems, uses blade terminals, and features quick-connect outlets for straightforward line connection. Delphi’s OE background is reflected in the design approach, with coverage aimed at maintaining the original fuel system function on select Ram diesel trucks.

This part cross-references Carter P76611M for the same application. It is also associated with Spectra Premium SP7195M in the same fitment family. Compatible with 2005-2009 Dodge Ram 2500 and 2005-2009 Dodge Ram 3500 equipped with the 35 gallon tank, Delphi FG1330 supports direct replacement service for these diesel truck fuel systems.

Common Problems It Can Address

• Hard starting caused by weak or failing in-tank fuel delivery
• Loss of fuel pressure in diesel fuel system operation
• Inaccurate fuel gauge readings from a worn sender assembly
• Fuel starvation from a clogged or damaged pump strainer
• Intermittent drivability issues related to inconsistent pump output

Installation Notes and Tips

Fits 2005-2009 Dodge Ram 2500, N/A, with 35 Gallon Tank. Fits 2005-2009 Dodge Ram 3500, N/A, with 35 Gallon Tank. Before installing a replacement pump, clean the fuel tank to reduce the risk of contamination-related failure. Delphi recommends using fuel tank cleaning kit FC01 before installation. Verify diesel fuel system connections, outlet routing, and electrical terminal fitment before final assembly.

Quality Assurance

Delphi draws on more than 100 years of OE experience and supplier knowledge used by major automakers. That OE-focused background is built into this aftermarket fuel pump module assembly to support consistent fit and function in the intended applications.
