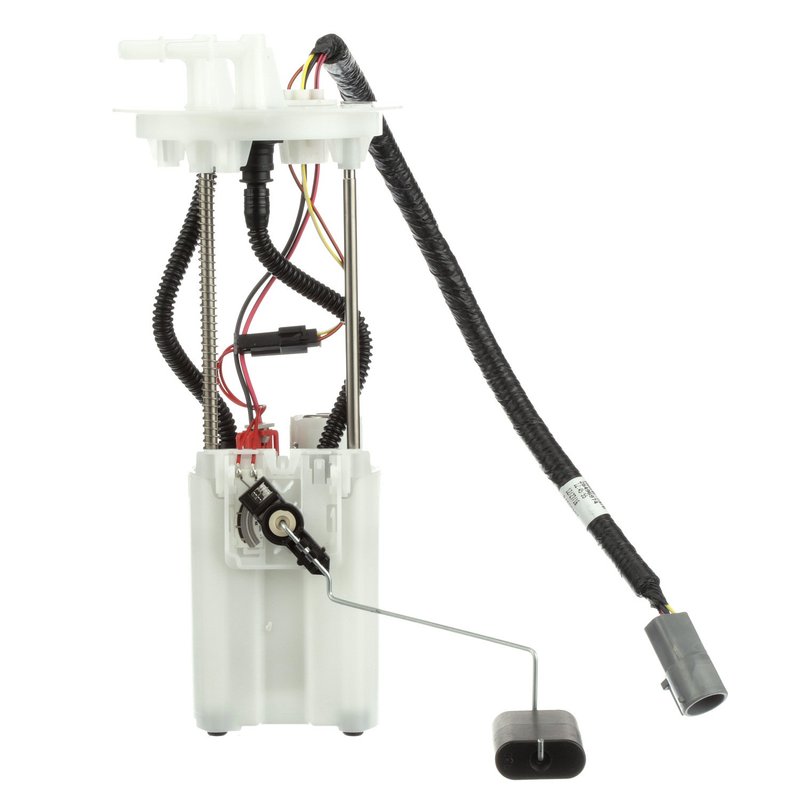

Delphi FG1333 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Ford Explorer Sport Trac

The Delphi FG1333 fuel pump module assembly is designed specifically for the Ford Explorer Sport Trac, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for a seamless fit and function.

Key Features of Delphi FG1333 Fuel Pump Module

• 12.0 Volt electric fuel pump with an average flow rating of 28 gallons per hour
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Internal strainer inlet type with included strainer to protect the fuel system
• Quick connect outlet type with two outlets, 0.375 inch outside diameter
• Regulator and gasket/seal included for proper installation and fuel pressure control
• System pressure rated at 60 psi with a maximum pressure of 80 psi
• Four male pin terminals with 15 ohms resistance when empty and 160 ohms when full
• Standard replacement grade designed for direct compatibility with Ford Explorer Sport Trac

Detailed Description of the Delphi FG1333 Fuel Pump Module

The Delphi FG1333 fuel pump module assembly is engineered as an in-tank electric pump designed to meet the fuel delivery requirements of the Ford Explorer Sport Trac. Operating at 12 volts, this module provides a steady flow rate of 28 gallons per hour, ensuring efficient fuel supply to the engine. The assembly includes a fuel level sender with a float arm, allowing accurate fuel gauge readings. The internal strainer protects the fuel system by filtering contaminants before fuel reaches the pump. The quick connect outlet with two ports and a 0.375 inch diameter facilitates secure and leak-free fuel line connections. Additionally, the included regulator maintains system pressure at 60 psi, with a maximum capability of 80 psi, supporting optimal engine performance. The four male pin terminals provide reliable electrical connections, and the included gasket or seal ensures a proper fit within the fuel tank.

Applications and Common Issues Addressed

• Replacement for faulty or failing fuel pump modules in Ford Explorer Sport Trac vehicles
• Resolves inconsistent fuel pressure or fuel delivery problems
• Corrects inaccurate fuel level readings due to sender assembly failure
• Eliminates fuel system contamination issues with integrated internal strainer
• Addresses electrical connection problems with secure four-pin male terminals

Installation Notes and Tips

• Ensure vehicle is depressurized and battery disconnected before installation
• Verify compatibility with Ford Explorer Sport Trac model year before replacement
• Use the included gasket or seal to prevent fuel leaks during installation
• Handle the float arm carefully to avoid damage to the fuel level sender assembly
• Check all electrical connections for secure fitment to the four-pin terminals

Quality Assurance and Warranty Information

The Delphi FG1333 fuel pump module assembly is manufactured to meet OEM specifications for the Ford Explorer Sport Trac. This standard replacement part undergoes rigorous testing to ensure durability and reliable operation under normal driving conditions. Delphi provides a limited warranty covering defects in materials and workmanship, supporting confidence in product quality and performance.
