Delphi FG1339 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

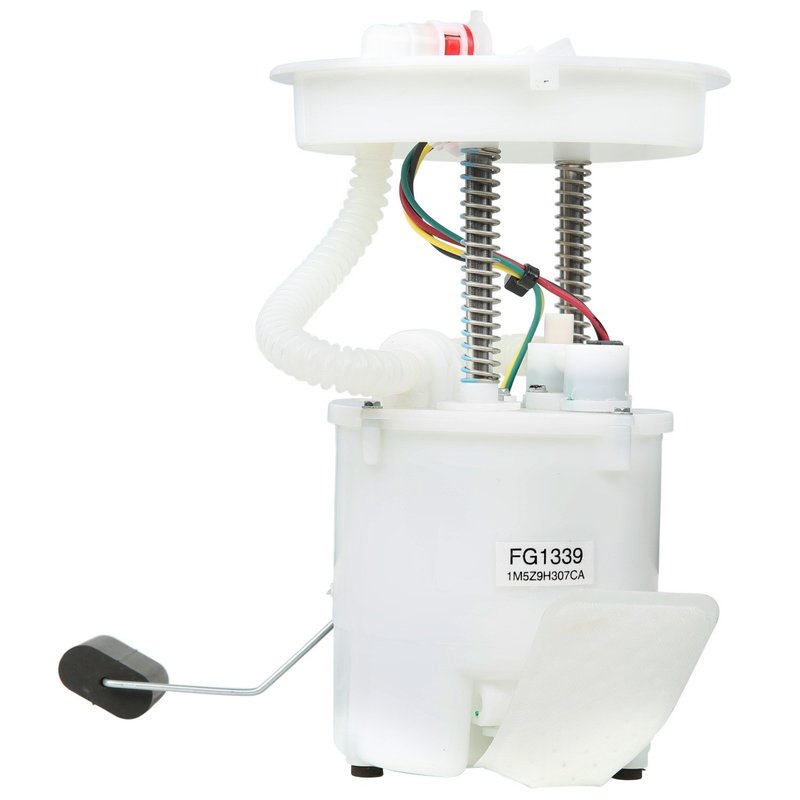

Delphi FG1339 Fuel Pump Module Assembly

Brand Delphi FG1339
Average Current Draw 8
Average Flow Rating 60
Fuel Level Sender Assembly Included Yes
Fuel Type Gas
Gasket Or Seal Included Yes
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer External
Item Grade Standard Replacement
Lock Ring Included No
Maximum Pressure 80.0
Outlet Outside Diameter 0.313
Outlet Quantity 1
Outlet Type Female Push In
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Clip, Fuel Feed Line, Instruction Sheet
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 15.0
Resistance Ohms Full 160.0
Strainer Included Yes
System Pressure 58 psi
Terminal Gender Male
Terminal Quantity 4
Terminal Type Blade
Vapor Pressure Sensor No
Voltage 12.0
Fits Ford · 3 vehicles

Standard replacement. Built as an OE-style fuel pump module assembly for straightforward service.

Includes regulator. Comes with a seal and strainer for a complete fuel system refresh.

Electric in-tank design. Delivers 60 flow rating with 58 psi system pressure.

Cross-references Airtex Fuel Pumps E2556M, Carter P75047M and Carter P76104 for the same application. See all 15.

$104.36Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $104.36
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Fuel Pump Module for Ford Focus

Delphi FG1339 is an in-tank fuel pump module assembly for select Ford Focus models. It combines the pump, fuel level sender, regulator, seal, strainer, and fuel feed line in one OE-style replacement assembly for gas applications.

Key Features

  • In-tank electric fuel pump module assembly for 12-volt gas systems
  • Includes fuel level sender assembly, regulator, gasket or seal, strainer, float arm, clip, fuel feed line, and instruction sheet
  • Female push-in outlet with one outlet and blade-style male terminals
  • Maximum pressure rated at 80.0 and system pressure listed at 58 psi
  • Average flow rating of 60 with an average current draw of 8
  • Standard replacement part built from Delphi OE experience and fuel system knowledge

Detailed Description

Delphi FG1339 fuel pump module assembly is built for 2000-2002 Ford Focus applications, including 2002 Ford Focus built to 01/04/2002 and 2000-2001 Ford Focus. This module is an in-tank, electric replacement for gas-powered vehicles and is specified with a regulator, external strainer, and fuel level sender assembly. Delphi FG1339 is engineered from OE heritage and supplier experience developed across a wide range of vehicle platforms, making it a direct-fit service part for common Ford Focus fuel delivery repairs. This part cross-references Airtex Fuel Pumps E2556M for the same application.

Common Repair Applications

  • Hard starting or no-start conditions related to low fuel pressure
  • Fuel delivery loss from a worn in-tank pump
  • Inaccurate fuel gauge readings from a failing sender
  • Fuel pressure irregularities in 2000-2002 Ford Focus models
  • Fuel system service after tank contamination concerns

Installation Notes and Tips

Fits 2002 Ford Focus, N/A, to 01/04/2002, and fits 2000-2001 Ford Focus, N/A. Clean the fuel tank before installing the replacement pump to reduce the risk of contamination-related failure and seal problems; Delphi also notes fuel tank cleaning kit FC01 is recommended for this application. Verify outlet style, terminal type, and pressure requirements before installation.

Quality Assurance

Delphi builds this fuel pump module using OE-focused engineering and application knowledge drawn from its long history supplying automakers. FG1339 is a standard replacement fuel delivery component for Ford Focus fuel system service.

Related reading

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2002FordFocusN/ATo 01/04/2002; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2001FordFocusN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2000FordFocusN/AClean fuel tank before installing fuel pump to prevent future seal problems.
Directly replaces or cross-references 15 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E2556MCarter — P75047MCarter — P76104Spectra Premium — SP1135Spectra Premium — SP2299M1AMFP000141M5Z 9H307-AA1M5Z 9H307-CA67172A33094CFG1339E2448M2542464PFS-448YS4Z 9H307-EA
