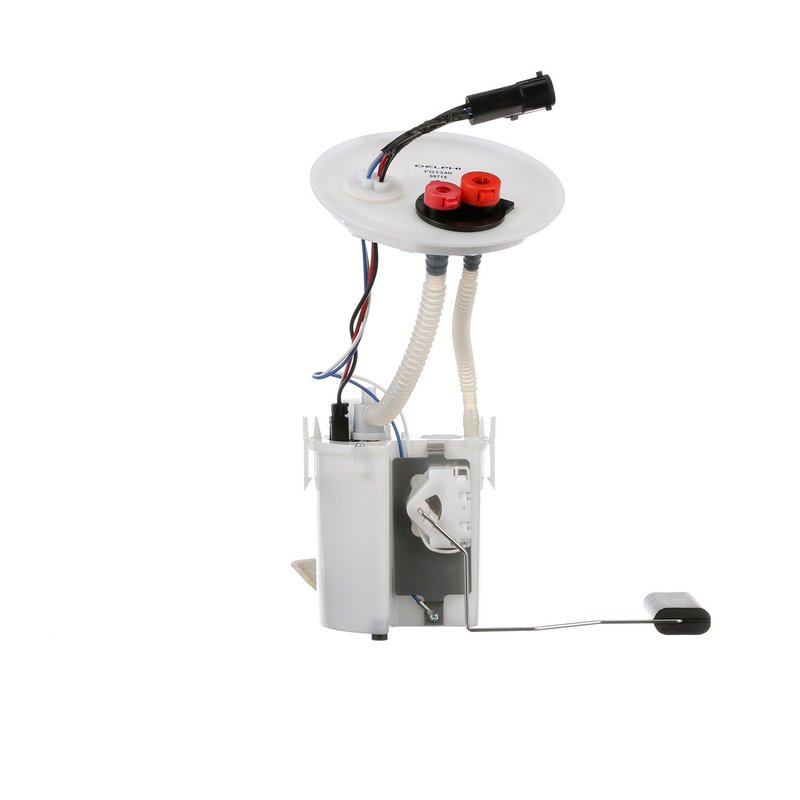

Delphi FG1340 Fuel Pump Module Assembly - Right

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1340 fuel pump module assembly is designed for reliable fuel delivery in select Ford, Jaguar, and Lincoln vehicles. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance in models like the Ford LS, Jaguar S-Type, and Lincoln Thunderbird.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gas fuel systems, 12V operation
• Includes regulator, gasket, and external strainer for clean fuel delivery
• Maximum pressure rating of 80 psi and system pressure of 44 psi
• Four-pin male terminals with female push-in outlets (0.313 inch diameter)
• Standard replacement grade for right-side installation
• Average flow rating of 31 liters per hour and average current draw of 8 amps

Technical Details and Features

The Delphi FG1340 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an external strainer inlet type and a female push-in outlet with two outlets measuring 0.313 inches in diameter. The module includes a fuel pressure regulator and a fuel level sender assembly with a float arm, providing accurate fuel level readings. The four-pin male terminal configuration ensures secure electrical connections. This module is intended for in-tank installation on the right side of the fuel tank and supports a system pressure of 44 psi with a maximum pressure capacity of 80 psi. Resistance values range from 15 ohms when empty to 160 ohms when full, supporting precise fuel level monitoring.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford LS
• Jaguar S-Type
• Lincoln Thunderbird

It is designed to replace the original fuel pump module in these models, ensuring proper fuel delivery and system pressure for smooth engine operation.

Common Issues Addressed by Delphi FG1340

• Fuel delivery interruptions causing engine stalling or hesitation
• Inaccurate fuel level readings due to faulty sender assembly
• Low fuel pressure affecting engine performance
• Fuel contamination prevented by integrated external strainer
• Electrical connection failures with secure four-pin terminals

Installation Notes and Tips

Installation of the Delphi FG1340 fuel pump module assembly requires removal of the fuel tank or access through the service panel, depending on vehicle design. Ensure the gasket and seal included are properly seated to prevent fuel leaks. Verify the correct orientation for right-side installation and confirm all electrical connections are secure with the four-pin male terminals. Follow manufacturer instructions carefully to avoid damage to the float arm or regulator components during installation.

Quality Assurance and Warranty

The Delphi FG1340 is a standard replacement grade fuel pump module assembly manufactured to meet OEM specifications. It includes a fuel level sender assembly and comes with a gasket and instruction sheet for proper installation. Delphi products undergo rigorous testing to ensure durability and reliable performance. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
