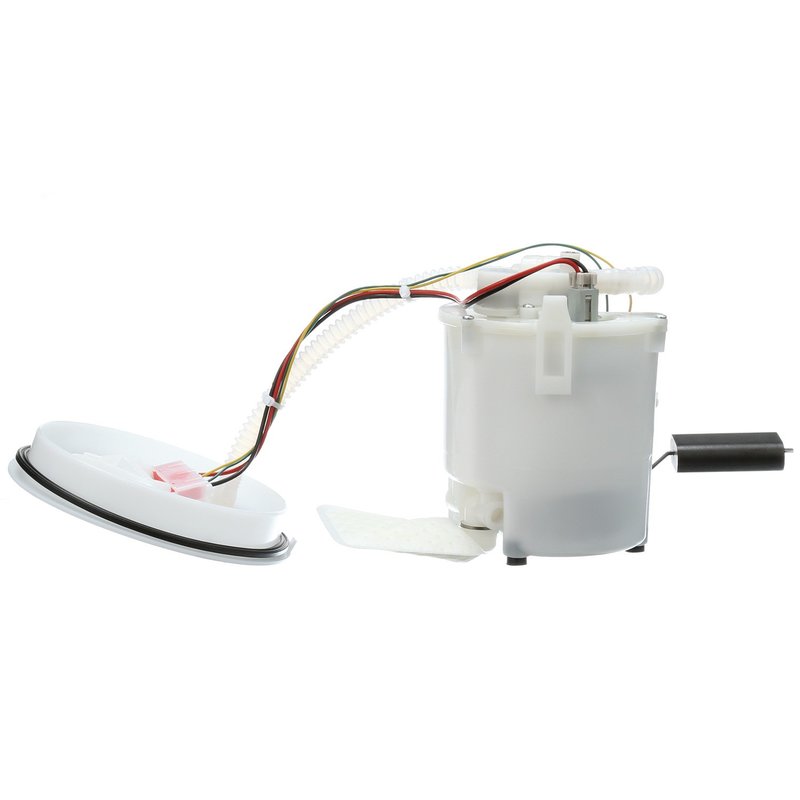

Delphi FG1342 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Focus

The Delphi FG1342 fuel pump module assembly is designed specifically for Ford Focus models requiring a dependable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 voltage operation
• In-tank design with internal strainer for fuel filtration
• Compatible with gasoline fuel systems
• Includes fuel level sender assembly with float arm
• Female quick connect outlet with 0.313 inch outside diameter
• Blade-type terminals, 4 male terminals included
• Maximum pressure rating of 94 psi and system pressure of 65 psi
• Gasket and seal included for secure installation
• Standard replacement grade for reliable performance

Detailed Product Description

The Delphi FG1342 fuel pump module assembly is an electric pump designed for in-tank installation in Ford Focus vehicles. It operates at 12 volts and is optimized for gasoline fuel delivery, providing an average flow rating of 75 liters per hour. The module features an internal strainer inlet to prevent contaminants from entering the fuel system, enhancing longevity and reliability. The outlet is a female quick connect type with a 0.313 inch outside diameter, ensuring a secure and leak-free connection. This assembly includes a fuel level sender assembly with a float arm, allowing accurate fuel gauge readings. The pump uses blade-type terminals with four male connectors, facilitating straightforward electrical connections. It is rated for a maximum pressure of 94 psi and maintains a system pressure of 65 psi, suitable for the fuel delivery requirements of the Ford Focus. The package includes a gasket and seal to ensure proper sealing during installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Ford Focus models that require a standard replacement electric fuel pump module. It is designed to meet the specific fuel delivery needs of these vehicles, ensuring proper engine operation and fuel system performance.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure problems affecting engine performance
• Replaces faulty fuel level sender assemblies for accurate fuel gauge readings
• Eliminates fuel pump noise caused by worn or failing pumps
• Prevents fuel contamination with internal strainer filtration

Installation Notes and Tips

When installing the Delphi FG1342 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. Use the included gasket and seal to prevent leaks and verify all electrical connections are secure with the blade-type terminals. The female quick connect outlet should be firmly attached to the fuel line to maintain proper fuel flow. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures to avoid damage to the fuel tank or module.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG1342 is a standard replacement grade part, tested for durability and performance under typical operating conditions. While specific warranty details may vary, Delphi products generally come with a limited warranty covering defects in materials and workmanship to provide confidence in your purchase.
