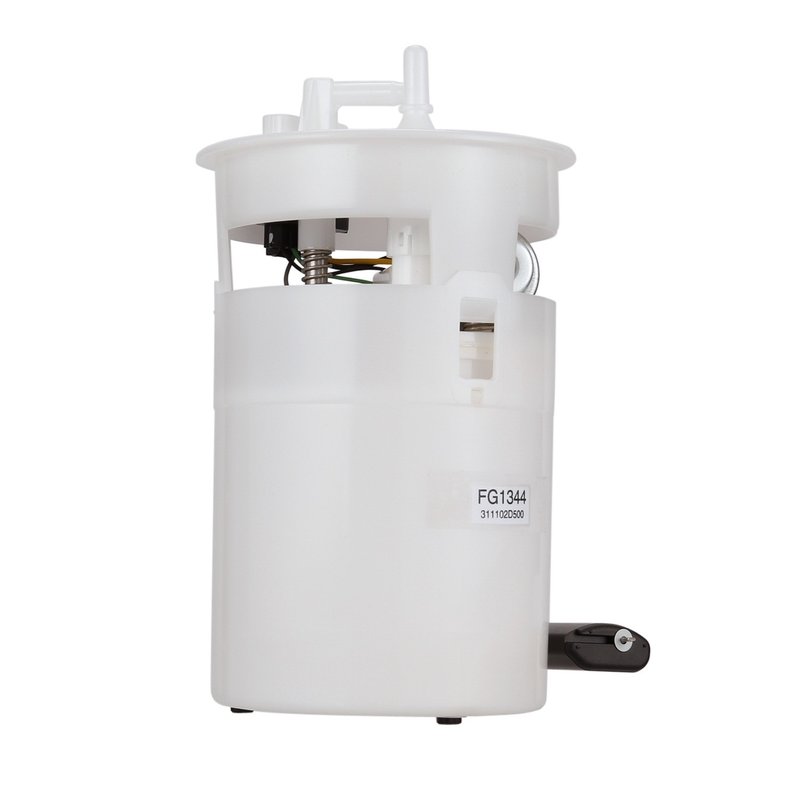

Delphi FG1344 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Hyundai Elantra

The Delphi FG1344 fuel pump module assembly is designed specifically for Hyundai Elantra models requiring a reliable in-tank electric fuel pump. Engineered to maintain consistent fuel delivery and pressure, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump with 12V operation suitable for gasoline engines
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Maximum pressure rating of 50 psi and system pressure of 44 psi for stable fuel flow
• Comes with gasket, lock ring, and internal strainer for secure installation and filtration
• Blade-type male terminals with 5-terminal quantity for proper electrical connections
• Outlet hose type with two outlets and 0.313 inch outside diameter
• Standard replacement grade ensuring compatibility and durability

Product Details and Specifications

The Delphi FG1344 fuel pump module assembly is an in-tank electric pump designed for Hyundai Elantra vehicles running on gasoline. It features an internal strainer inlet and includes a strainer to prevent debris from entering the fuel system. The module operates at 12 volts with an average current draw of 5 amps and an average flow rating of 40 liters per hour, supporting consistent fuel delivery under various driving conditions. The fuel pump module also includes a regulator to maintain system pressure at 44 psi, with a maximum pressure capacity of 50 psi. The assembly comes complete with a gasket, lock ring, and installation instructions to facilitate proper mounting and sealing within the fuel tank. The fuel level sender assembly integrated into the module provides accurate fuel level readings, with resistance values ranging from 110 ohms when empty to 3 ohms when full.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Hyundai Elantra models requiring part number FG1344. It is designed to replace the original equipment fuel pump module, addressing issues related to fuel delivery and fuel level sensing.

• Resolves fuel delivery interruptions and engine stalling
• Corrects inaccurate fuel gauge readings caused by faulty sender units
• Eliminates low fuel pressure symptoms such as hesitation or poor acceleration
• Prevents fuel contamination with the included internal strainer
• Replaces worn or damaged fuel pump modules to restore proper fuel system function

Installation Notes and Tips

Installation of the Delphi FG1344 fuel pump module assembly should be performed by a qualified technician familiar with Hyundai Elantra fuel systems. Ensure the fuel tank is properly drained and depressurized before removal. Use the included gasket and lock ring to secure the module and prevent leaks. Verify all electrical connections to the blade-type male terminals are secure and free of corrosion. Follow the provided instructions carefully to maintain system integrity and safety.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. This standard replacement grade part undergoes rigorous testing to ensure reliable performance and durability. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms related to part number FG1344.
