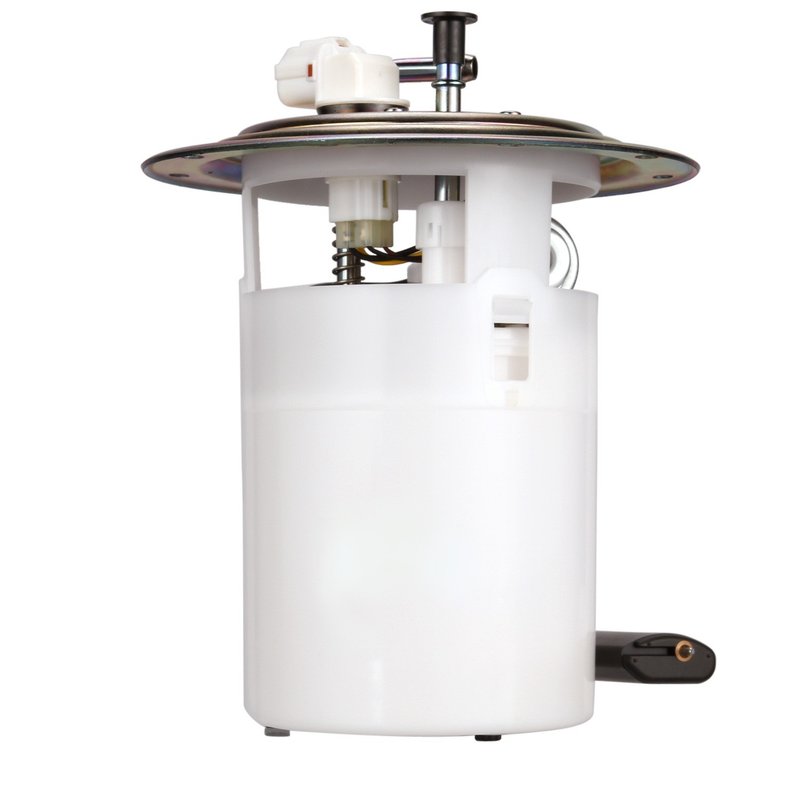

Delphi FG1345 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Hyundai Elantra and Tiburon

The Delphi FG1345 fuel pump module assembly is designed specifically for Hyundai Elantra and Tiburon models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure, supporting optimal engine performance and efficiency.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gasoline fuel systems at 12 volts
• Includes regulator, gasket, and external strainer for clean fuel flow
• Maintains system pressure up to 51 psi for reliable operation
• Blade-type male terminals with 5-terminal configuration
• Outlet hose diameter of 0.313 inches with single outlet
• Standard replacement grade for Hyundai Elantra and Tiburon

Technical Details and Features

The Delphi FG1345 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an external strainer inlet type and a hose outlet type with a 0.313-inch outside diameter. The module includes a fuel pressure regulator and a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump delivers an average flow rating of 50 liters per hour and maintains a system pressure of 51 psi, ensuring consistent fuel supply under various driving conditions. The assembly comes with a gasket or seal to ensure a secure fit and prevent leaks. The electrical connection uses five male blade terminals, designed for straightforward installation and reliable electrical contact.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Hyundai Elantra and Tiburon models requiring a standard replacement fuel pump. It is intended for in-tank installation and supports gasoline fuel systems. The part number FG1345 is specific to these applications, ensuring proper fit and function.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure problems affecting engine performance
• Replaces faulty fuel level sender assemblies for accurate gauge readings
• Eliminates fuel pump noise caused by worn or damaged components
• Prevents fuel leaks with included gasket and seal

Installation Notes and Tips

When installing the Delphi FG1345 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. Handle the external strainer carefully to avoid damage. Verify the correct orientation of the float arm for accurate fuel level readings. Use the included gasket or seal to prevent leaks and ensure a secure fit. Electrical connections should be checked for corrosion or damage and cleaned if necessary before reconnecting the blade terminals.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG1345 assembly is a standard replacement grade part designed for durability and reliable operation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship to provide confidence in your purchase.
