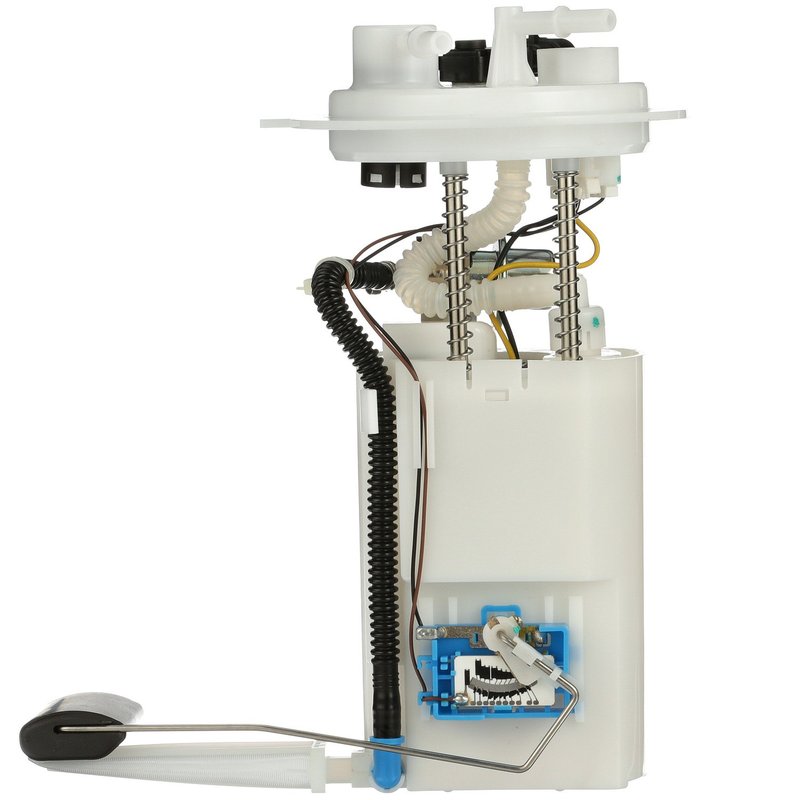

Delphi FG1346 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Hyundai Sonata

The Delphi FG1346 fuel pump module assembly is designed specifically for Hyundai Sonata models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Electric fuel pump with 12V operation
• Includes fuel level sender assembly with float arm
• Maximum system pressure of 44 psi and maximum pump pressure of 50 psi
• Quick connect outlet with 0.313 inch outside diameter
• External strainer inlet type with included strainer
• Four male blade terminals for secure electrical connection
• Regulator and vapor pressure sensor included
• Average flow rating of 23 liters per hour and average current draw of 8 amps

Detailed Product Description

The Delphi FG1346 fuel pump module assembly is engineered for in-tank installation in Hyundai Sonata vehicles. It features an electric pump designed to maintain a steady fuel flow rate of 23 liters per hour, supporting efficient combustion and engine responsiveness. The module includes a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The pump operates at 12 volts and is equipped with a regulator and vapor pressure sensor to maintain system pressure at 44 psi, with a maximum pressure capacity of 50 psi. The fuel outlet uses a quick connect type with a 0.313 inch outside diameter, facilitating straightforward installation and secure fuel line connection. The external strainer inlet helps filter contaminants before fuel enters the pump, enhancing durability. Electrical connections are made via four male blade terminals, ensuring reliable power delivery.

Compatible Vehicles and Applications

• Compatible with Hyundai Sonata models requiring a standard replacement fuel pump module
• Designed for gasoline fuel systems with in-tank pump configuration
• Suitable for addressing fuel delivery issues such as low fuel pressure or inconsistent fuel gauge readings
• Ideal for replacing faulty or worn fuel pump modules in Hyundai Sonata vehicles

Installation Notes and Tips

• Ensure the vehicle’s fuel system is depressurized before removal
• Verify electrical connections match the four male blade terminals on the module
• Inspect and clean the fuel tank opening before installing the new module
• Use appropriate tools to secure the quick connect fuel outlets and avoid fuel leaks
• Check for proper seating of the fuel level sender assembly to ensure accurate fuel gauge operation

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG1346 part undergoes rigorous testing to ensure consistent fuel delivery and durability under normal operating conditions. This standard replacement grade fuel pump module includes a fuel level sender assembly and is backed by Delphi’s quality standards. Warranty coverage details should be confirmed with the point of purchase or vehicle service provider.
