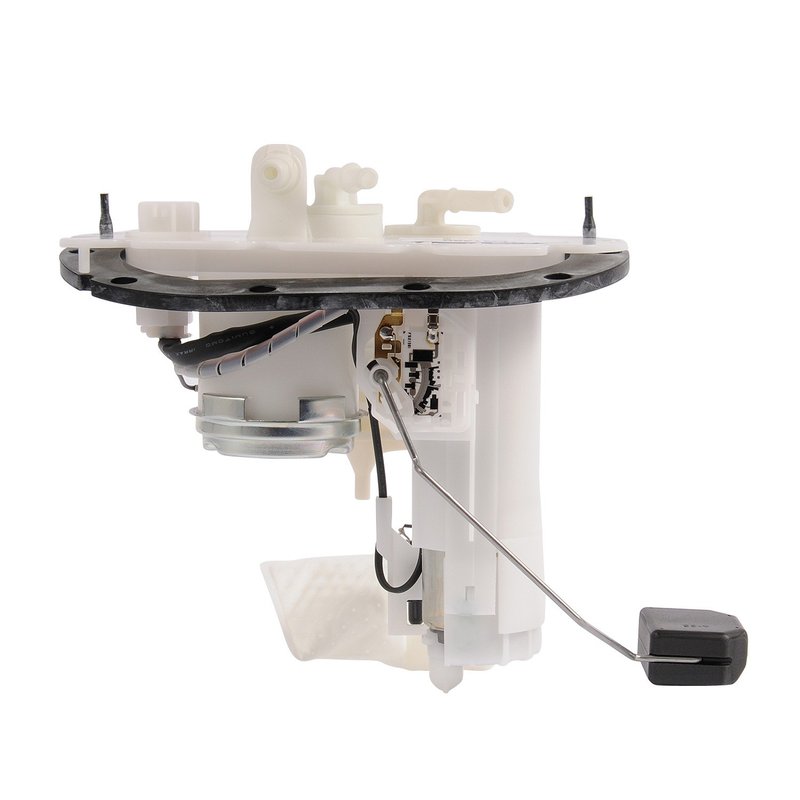

Delphi FG1350 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Subaru Vehicles

The Delphi FG1350 fuel pump module assembly is designed specifically for Subaru Baja, Legacy, and Outback models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.

• 12.0 Volt electric pump with a maximum pressure of 80 psi
• Includes regulator, gasket, lock ring, and strainer for complete installation
• Quick connect outlet with 0.375 inch outside diameter and three outlet ports
• Fuel level sender assembly with float arm included for accurate fuel gauge readings
• Blade-type male terminals with six connections for secure wiring
• Designed for gasoline fuel systems with an average flow rating of 30
• Standard replacement grade with external strainer and system pressure of 44 psi

Technical Details and Features

The Delphi FG1350 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in Subaru Baja, Legacy, and Outback vehicles. It features an electric pump type with an average current draw of 8 amps, providing a steady flow rate of 30 liters per hour. The module includes a built-in fuel pressure regulator to maintain system pressure up to 80 psi, ensuring consistent fuel delivery under various driving conditions.

This assembly comes complete with a gasket, lock ring, and an external strainer inlet type to protect the pump from debris. The quick connect outlet type with three outlets and a 0.375 inch outside diameter allows for straightforward installation and secure fuel line connections. The fuel level sender assembly with float arm is integrated to provide accurate fuel level readings on the dashboard.

Compatible Subaru Models and Applications

This fuel pump module assembly is compatible with the following Subaru models:

• Subaru Baja
• Subaru Legacy
• Subaru Outback

It is designed as a direct replacement for the original equipment fuel pump module, making it suitable for repairs or maintenance of the fuel delivery system in these vehicles.

Common Issues Addressed by the Delphi FG1350

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pressure fluctuations affecting engine performance
• Fuel pump noise or failure from clogged strainers or worn components
• Leaks or poor sealing from damaged gaskets or lock rings

Installation Notes and Tips

Installation of the Delphi FG1350 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle battery is disconnected before beginning work to prevent electrical hazards. Use the included lock ring and gasket to secure the module and prevent fuel leaks. Verify all blade terminals are properly connected and secure. It is recommended to inspect the fuel tank for debris and clean as necessary before installing the new pump module. Follow vehicle-specific service manual instructions for torque specifications and safety precautions.

Quality Assurance and Warranty Information

The Delphi FG1350 is a standard replacement grade fuel pump module assembly manufactured to meet OEM specifications for Subaru vehicles. It undergoes rigorous testing to ensure reliable operation and durability. This product includes a fuel level sender assembly and all necessary components for a complete replacement. Warranty coverage details should be confirmed with the product provider or manufacturer documentation.
