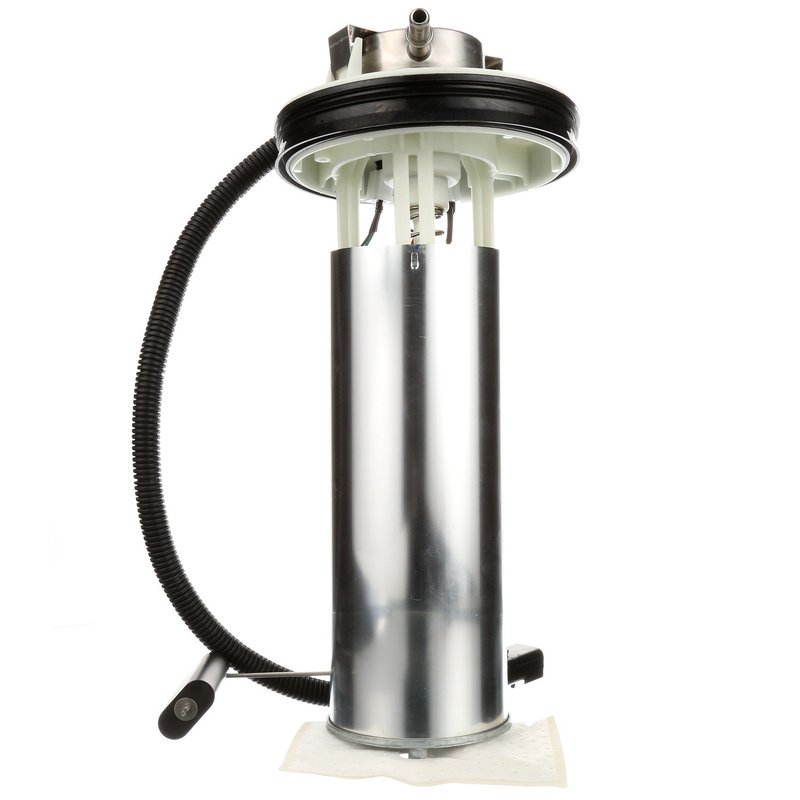

Delphi FG1353 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Jeep Wrangler

The Delphi FG1353 fuel pump module assembly is designed specifically for Jeep Wrangler models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module ensures optimal engine performance and fuel efficiency.

• Outlet outside diameter: 0.375 inches for precise fuel delivery
• Operates at 12.0 volts compatible with standard vehicle electrical systems
• Includes fuel pressure regulator for maintaining system pressure at 44 psi
• Equipped with a blade-type terminal, male gender, and four terminals for secure electrical connections
• Features an external strainer inlet and quick connect outlet for easy installation and maintenance
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Designed for gasoline fuel type with a maximum pressure rating of 51 psi
• Comes with gasket and seal to ensure leak-free operation
• Average flow rating of 32 gallons per hour and average current draw of 6 amps

Technical Details and Compatibility

The Delphi FG1353 fuel pump module assembly is an electric pump designed for in-tank installation in Jeep Wrangler vehicles. It features a quick connect outlet and an external strainer inlet to optimize fuel filtration and flow. The included fuel pressure regulator maintains system pressure at 44 psi, supporting consistent engine performance. The module’s fuel level sender assembly provides accurate fuel level readings, helping to prevent unexpected fuel shortages. With a resistance range from 270 ohms (empty) to 20 ohms (full), the fuel level sensor integrates seamlessly with the vehicle’s fuel gauge system.

Common Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Jeep Wrangler models
• Resolves issues with inconsistent fuel pressure or engine stalling
• Fixes inaccurate fuel gauge readings due to faulty sender assemblies
• Addresses fuel delivery problems caused by clogged or damaged strainers
• Eliminates electrical connection failures with blade-type terminals

Installation Notes and Tips

Installation of the Delphi FG1353 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the gasket and seal included are properly seated to prevent leaks. Verify electrical connections match the blade-type male terminals with four terminals for correct wiring. Use caution when handling the float arm to avoid damage to the fuel level sender assembly. It is recommended to consult the vehicle’s service manual for detailed installation procedures specific to Jeep Wrangler models.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. The product includes a gasket and strainer to maintain system integrity. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official documentation for exact warranty terms.
