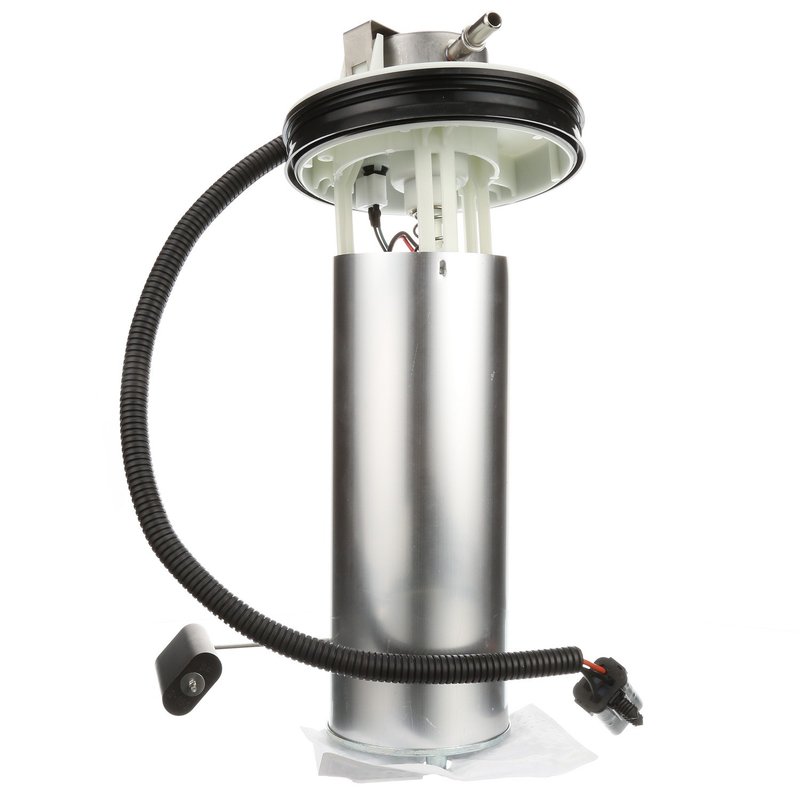

Delphi FG1355 Fuel Pump Module Assembly
| Brand | Delphi FG1355 |
|---|---|
| Average Current Draw | 6 |
| Average Flow Rating | 32 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 51.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 270.0 |
| Resistance Ohms Full | 20.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Jeep · 3 vehicles |
Standard replacement. OE heritage built into this fuel pump module assembly.
Electric fuel pump. Delivers 44 psi system pressure with a 51 psi maximum.
Complete module. Includes regulator, strainer, gasket, and fuel level sender assembly.
Cross-references Airtex Fuel Pumps E7122MN, Carter P75046M and Four Seasons 67659 for the same application. See all 14.
Fuel Pump Module Assembly for Jeep Wrangler
Delphi FG1355 is a standard replacement fuel pump module assembly for select 1997-1999 Jeep Wrangler models with a 15 gallon tank. It combines the pump, fuel level sender assembly, regulator, strainer, gasket or seal, and float arm in one in-tank unit for direct fuel system service.
Key Features
- In-tank electric fuel pump module assembly for gas applications
- Includes fuel level sender assembly and float arm
- Regulator included for system control
- Strainer and gasket or seal included
- Quick connect outlet with 0.375 in. outside diameter
- 12.0 volt design with 44 psi system pressure and 51.0 maximum pressure
- Blade terminals, 4 terminal quantity, male terminal gender
- Average flow rating of 32 and average current draw of 6
Detailed Description
Built on Delphi’s OE experience, FG1355 reflects the company’s long history supplying fuel system components to major automakers. This fuel pump module assembly is engineered as a standard replacement for Jeep Wrangler fuel system service, with the pump, sender, regulator, and sealing components integrated into one in-tank assembly. For 1997-1999 Jeep Wrangler applications with a 15 gallon tank, it provides the core components needed to restore fuel delivery and fuel level reporting.
This part cross-references Airtex Fuel Pumps E7122MN and Carter P75046M for the same application. Delphi FG1355 is also referenced by several other aftermarket numbers, including Spectra Premium SP1132 and SP7122M, for related coverage.
What It Helps Fix
- Hard starting caused by weak or failing fuel delivery
- Engine stalling from inconsistent fuel pressure
- Fuel gauge readings that no longer track tank level correctly
- Low fuel pressure that affects drivability and throttle response
- Fuel pump noise or intermittent pump operation
Installation Notes and Tips
Compatible With 1997-1999 Jeep Wrangler, in tank, with 15 gallon tank. The outlet uses a quick connect connection, and the unit includes the strainer and gasket or seal needed for installation. Delphi recommends cleaning the fuel tank before installing a replacement pump to reduce the risk of contamination-related failure; using fuel tank cleaning kit FC01 is recommended.
Quality Assurance
Delphi builds this fuel pump module assembly using OE heritage and application knowledge developed over decades of fuel system supply. FG1355 is a standard replacement part designed for direct-fit service in the listed Jeep Wrangler applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1999 | Jeep | Wrangler | N/A | with 15 Gallon Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1998 | Jeep | Wrangler | N/A | with 15 Gallon Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1997 | Jeep | Wrangler | N/A | with 15 Gallon Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
