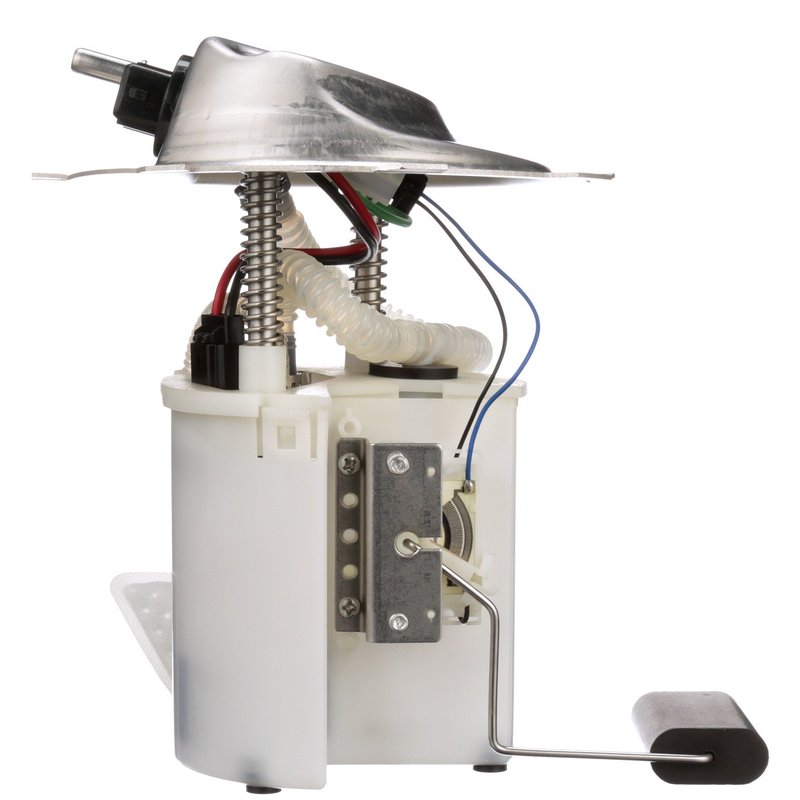

Delphi FG1357 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford and Mercury Vehicles

The Delphi FG1357 fuel pump module assembly is designed specifically for Ford Contour, Mercury Cougar, and Mystique models. This in-tank electric fuel pump ensures consistent fuel delivery and integrates a fuel level sender assembly for accurate tank readings.

Key Features of Delphi FG1357 Fuel Pump Module

• Electric pump type with 12.0 volts operation
• In-tank design with external strainer for fuel filtration
• Includes fuel level sender assembly with float arm
• Quick connect outlet with 0.313 inch outside diameter
• Blade-type male terminals, 5 in quantity for secure electrical connection
• Maximum pressure rating of 80 psi and system pressure of 44 psi
• Includes gasket/seal and strainer for installation readiness
• Average flow rating of 37 liters per hour and average current draw of 8 amps

Detailed Description of the Delphi FG1357 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1357) is engineered for gas fuel systems in select Ford and Mercury vehicles, including the Contour, Cougar, and Mystique. The module features an electric pump that operates at 12 volts, delivering a steady fuel flow rated at 37 liters per hour. Its in-tank design helps maintain optimal fuel pressure, rated up to 80 psi, with a system pressure of 44 psi to support engine performance. The assembly includes an external strainer inlet type to filter fuel before it reaches the pump, enhancing longevity and reliability. The quick connect outlet with a 0.313 inch diameter allows for straightforward fuel line attachment. Additionally, the module comes with a fuel level sender assembly, providing accurate fuel gauge readings. The five blade-type male terminals ensure a secure electrical connection, and the included gasket or seal aids in proper installation.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Contour, Mercury Cougar, and Mystique
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions from clogged or damaged strainers
• Prevents electrical connection issues with reliable blade terminal design

Installation Notes and Tips

• Ensure compatibility with Ford Contour, Mercury Cougar, or Mystique before installation
• Handle the fuel pump module carefully to avoid damage to the float arm and sender assembly
• Replace the gasket or seal included in the package to prevent fuel leaks
• Disconnect the battery before installation to avoid electrical hazards
• Follow vehicle-specific service manual instructions for removal and installation procedures

Quality Assurance and Warranty Information

The Delphi FG1357 fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Ford and Mercury vehicles. It undergoes rigorous testing to ensure reliable performance and durability. While specific warranty terms may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for detailed warranty information.
