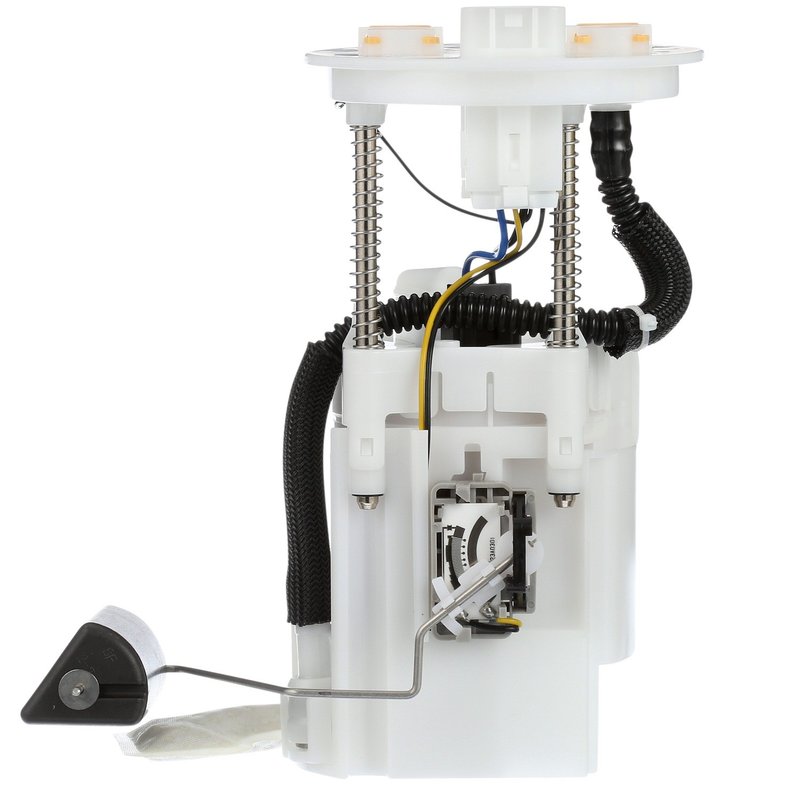

Delphi FG1358 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Toyota Camry

The Delphi FG1358 fuel pump module assembly is designed specifically for Toyota Camry models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Compatible with Toyota Camry fuel systems
• 12.0 Volt electric pump with 44 psi system pressure
• Includes fuel level sender assembly with float arm
• Internal strainer and push-in outlet for efficient fuel filtration
• Regulator and gasket included for secure installation
• Blade-type male terminals with four connections
• Standard replacement grade for reliable operation

Technical Specifications and Features

The Delphi FG1358 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features a maximum pressure rating of 80 psi and maintains a system pressure of 44 psi, ensuring steady fuel delivery. The pump includes an internal strainer at the inlet to prevent contaminants from entering the fuel system. The outlet has a 0.313-inch outside diameter with a push-in type connection, and the module includes one outlet port. The assembly comes with a regulator to maintain proper fuel pressure and a gasket for a secure seal during installation. The electrical connection uses four blade-type male terminals, supporting an average current draw of 8 amps. Resistance values range from 410 ohms when empty to 15 ohms when full, indicating the fuel level sender assembly is integrated for accurate fuel gauge readings.

Applications and Problem Resolution

This fuel pump module assembly is compatible with Toyota Camry vehicles and is intended for in-tank installation. It addresses several common fuel system issues, including:

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender units
• Fuel pressure fluctuations affecting engine performance
• Contaminant ingress causing pump or filter blockages
• Electrical connection problems with blade-type terminals

Installation Notes and Tips

When installing the Delphi FG1358 fuel pump module assembly, ensure the gasket is properly seated to prevent fuel leaks. The push-in outlet connection should be securely attached to the fuel line. Verify the four blade terminals are correctly connected to avoid electrical issues. Since this is an in-tank pump, take appropriate safety precautions when working with fuel systems, including depressurizing the fuel system and disconnecting the battery before installation.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for Toyota Camry vehicles. The product includes a fuel level sender assembly and strainer to maintain system integrity. While specific warranty details are not provided here, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
