Delphi FG1368 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

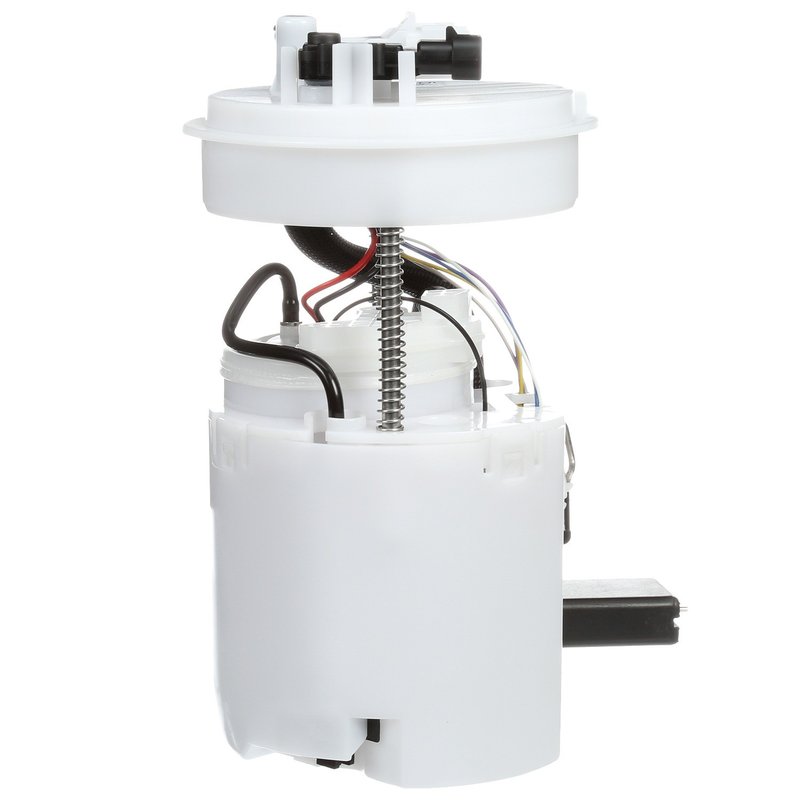

Delphi FG1368 Fuel Pump Module Assembly

Brand Delphi FG1368
Average Current Draw 5
Average Flow Rating 45
Fuel Level Sender Assembly Included Yes
Fuel Type Gas
Gasket Or Seal Included No
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer Internal
Item Grade Standard Replacement
Lock Ring Included No
Maximum Pressure 57.0
Outlet Outside Diameter 0.375
Outlet Quantity 1
Outlet Type Quick Connect
Package Contents Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 280.0
Resistance Ohms Full 15.0
Strainer Included Yes
System Pressure 58 psi
Terminal Gender Male
Terminal Quantity 6
Terminal Type Blade
Vapor Pressure Sensor Yes
Voltage 12.0
Fits Chevrolet · 5 vehicles

Standard replacement. Direct-fit fuel pump module assembly for straightforward service.

Electric in-tank design. Delivers fuel quietly with a quick-connect outlet and built-in regulator.

OE heritage. Backed by 100 years of OE experience and supplier knowledge.

Cross-references 67564, 96447645 and A30311 for the same application. See all 9.

$257.70Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $257.70
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Fuel Pump Module Assembly for Aveo

Delphi FG1368 is an in-tank fuel pump module assembly for select Chevrolet Aveo and Aveo5 models. It combines the electric pump, fuel level sender assembly, regulator, and vapor pressure sensor in one OE-style replacement unit for gas applications.

  • Fits 2006-2008 Chevrolet Aveo
  • Fits 2007-2008 Chevrolet Aveo5
  • 12-volt electric in-tank fuel pump module assembly
  • Fuel type: gas
  • Maximum pressure: 57.0 psi; system pressure: 58 psi
  • Average flow rating: 45
  • Fuel level sender assembly included
  • Regulator included
  • Strainer included
  • Quick-connect outlet with 0.375 in. outlet outside diameter
  • Blade terminals, 6-terminal male connection
  • Vapor pressure sensor included

OE-Style Replacement Design

Built from Delphi’s OE heritage and fuel system experience, FG1368 is a standard replacement fuel pump module assembly for Chevrolet Aveo and Chevrolet Aveo5 applications. It is engineered for in-tank installation and includes the components commonly integrated into the fuel delivery module, including the pump, sender, regulator, strainer, and vapor pressure sensor. This part cross-references AFS1017S and E3711M for the same application.

Common Problems This Part Can Address

  • Hard starting caused by weak fuel pressure
  • Engine stalling from inconsistent fuel delivery
  • Fuel gauge readings that are inaccurate or erratic
  • Low fuel pressure under load
  • Fuel pump noise or intermittent pump operation

Installation Notes and Tips

Before installing this Delphi FG1368 fuel pump module assembly, clean the fuel tank thoroughly to help prevent future seal problems, as noted for the Aveo and Aveo5 fitments. Verify electrical connector style, outlet connection, and tank condition before installation. Because this is an in-tank module, proper sealing and fuel system cleanliness are important for reliable operation.

Quality Assurance

Delphi draws on more than 100 years of OE experience and supplies components to major automakers, with aftermarket parts built from that original equipment knowledge. FG1368 is a standard replacement fuel pump module assembly intended to meet the needs of select Chevrolet Aveo and Aveo5 fuel system repairs.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2008ChevroletAveoN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2008ChevroletAveo5N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2007ChevroletAveoN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2007ChevroletAveo5N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2006ChevroletAveoN/AClean fuel tank before installing fuel pump to prevent future seal problems.
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
6756496447645A30311AFS1017SCFG1368E3711MMU1893P76251MSP6616M
