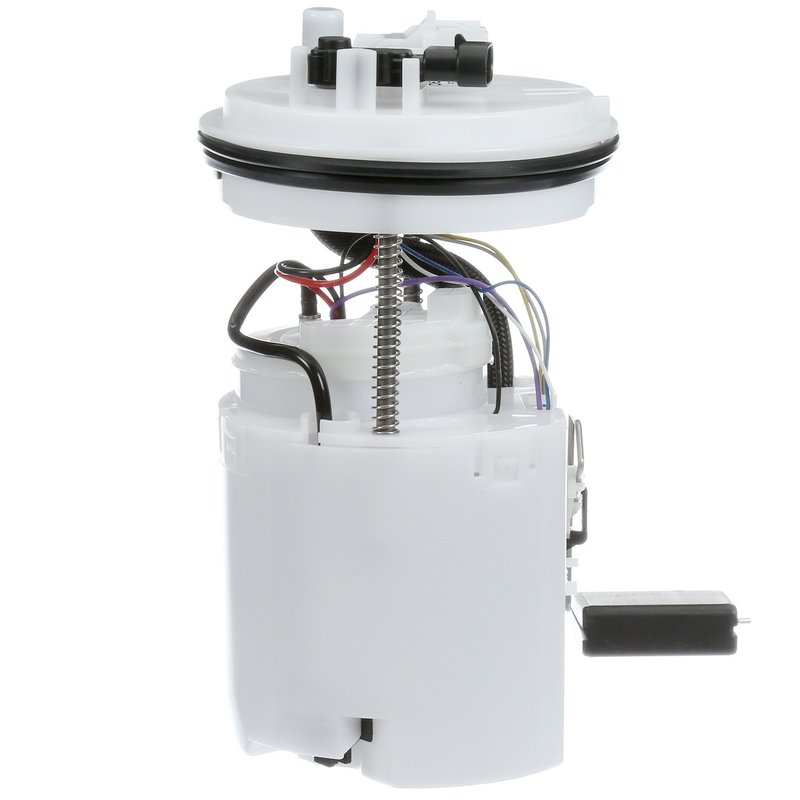

Delphi FG1369 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet Aveo

The Delphi FG1369 fuel pump module assembly is designed specifically for Chevrolet Aveo models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Maximum system pressure of 58 psi with regulator included
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Blade-type male terminals with 6-terminal configuration
• Compatible with gasoline fuel systems, average flow rating of 40 liters per hour
• Includes strainer and vapor pressure sensor for enhanced fuel system monitoring

Technical Details and Features

The Delphi FG1369 fuel pump module assembly is engineered for precise fuel delivery in Chevrolet Aveo vehicles. Operating at 12 volts, this electric pump maintains a maximum pressure of 57 psi, regulated internally to ensure stable fuel flow. The module features a quick connect outlet with a 0.375-inch outside diameter, facilitating straightforward installation and secure fuel line connection. The internal strainer protects the pump from contaminants, while the included fuel level sender assembly provides accurate fuel gauge readings. The six blade-type male terminals support reliable electrical connections, and the vapor pressure sensor helps monitor fuel system vapor emissions.

Compatible Applications and Common Issues Addressed

• Replacement for faulty or failing fuel pump modules in Chevrolet Aveo models
• Resolves inconsistent fuel pressure or engine hesitation during acceleration
• Addresses fuel gauge inaccuracies caused by defective fuel level senders
• Eliminates fuel delivery interruptions due to clogged strainers or pump wear
• Helps restore proper vapor pressure sensor function to reduce emissions-related issues

Installation Notes and Tips

Installation of the Delphi FG1369 fuel pump module assembly requires removal of the fuel tank. Ensure the fuel system is depressurized before beginning work. The quick connect outlet simplifies fuel line attachment, but verify all connections are secure to prevent leaks. The six blade terminals should be connected according to the vehicle’s wiring diagram to maintain proper electrical function. Although the module does not include a gasket or lock ring, reuse of the original components is recommended if in good condition. Follow the included instruction sheet carefully for best results.

Quality Assurance and Warranty Information

Delphi manufactures the FG1369 fuel pump module assembly to meet standard replacement grade specifications, ensuring reliable performance and durability. The product includes a fuel pump module with float arm and an instruction sheet for installation guidance. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects to support customer confidence in the product’s quality.
