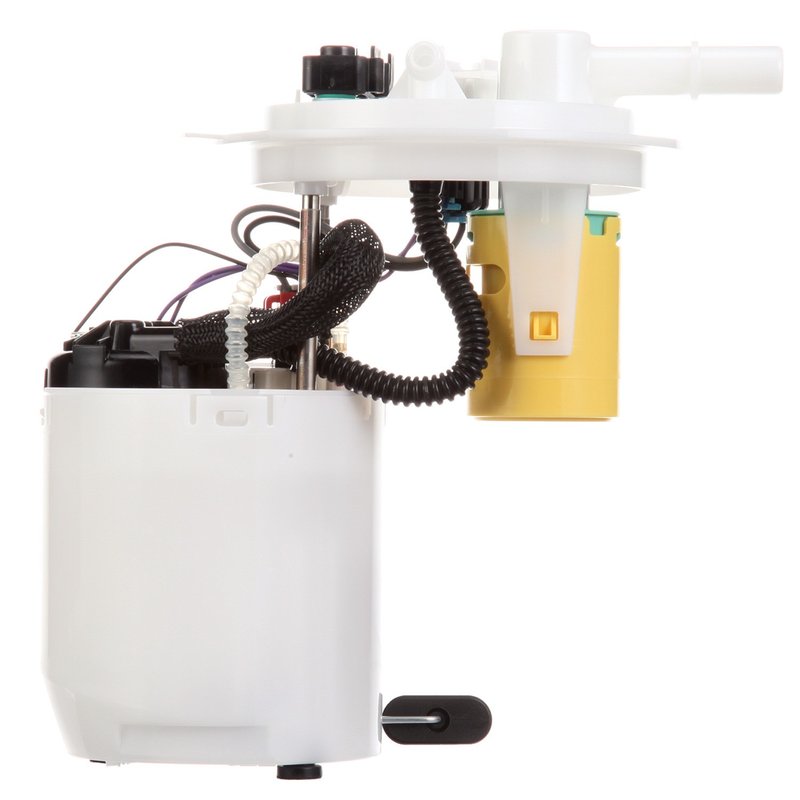

Delphi FG1371 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for GM SUVs

The Delphi FG1371 fuel pump module assembly is engineered for precise fuel delivery in select Buick, Chevrolet, GMC, and Saturn SUVs. Designed as a direct replacement, this in-tank electric fuel pump ensures consistent fuel pressure and flow for optimal engine performance.

• Compatible with Buick Enclave, Chevrolet Acadia, Acadia Limited, GMC Acadia, GMC Outlook, and Chevrolet Traverse
• Operates at 13.0 volts with a maximum pressure of 78 psi and system pressure of 58 psi
• Includes integrated fuel level sender assembly and vapor pressure sensor
• Features internal strainer inlet and quick connect outlet with 0.375 inch outside diameter
• Equipped with a regulator, gasket, and strainer for complete installation
• Blade-type male terminals with four connections for secure electrical interface
• Average flow rating of 20 and average current draw of 11 amps

Technical Details and Performance

The Delphi FG1371 fuel pump module assembly is an electric pump designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with two outlets, ensuring efficient fuel delivery and filtration. The module includes a fuel level sender assembly with resistance values ranging from 250 ohms (empty) to 40 ohms (full), providing accurate fuel gauge readings. The integrated regulator maintains system pressure at 58 psi, while the maximum pressure rating is 78 psi, supporting stable engine operation under various conditions. The pump’s blade-type male terminals with four connections facilitate reliable electrical connectivity. This module is intended for in-tank installation, simplifying replacement and maintaining factory specifications.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following makes and models:

• Buick Enclave
• Chevrolet Acadia and Acadia Limited
• GMC Acadia and GMC Outlook
• Chevrolet Traverse

It is designed to replace the original equipment fuel pump module in these vehicles, ensuring proper fuel delivery and system functionality.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure causing engine stalling or no-start conditions
• Inaccurate fuel level readings due to faulty sender assembly
• Low fuel pressure resulting in poor engine performance or hesitation
• Fuel pump noise or irregular operation indicating wear or internal damage
• Clogged or damaged internal strainer affecting fuel flow and filtration

Installation Notes and Tips

Installation of the Delphi FG1371 fuel pump module assembly requires removal of the fuel tank and proper handling of fuel system components. Ensure all electrical connections use the blade-type male terminals provided. Replace the included gasket to maintain a proper seal and prevent leaks. Verify that the quick connect outlets are securely attached to fuel lines. Follow vehicle-specific service manuals for safety precautions and torque specifications. Testing fuel pressure after installation is recommended to confirm correct operation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for fit, form, and function. This FG1371 module is a standard replacement grade part, backed by Delphi’s quality control processes. It includes a fuel level sender assembly and vapor pressure sensor to maintain system integrity. Warranty coverage details should be confirmed with the parts provider, but Delphi typically offers limited warranties covering defects in materials and workmanship.
