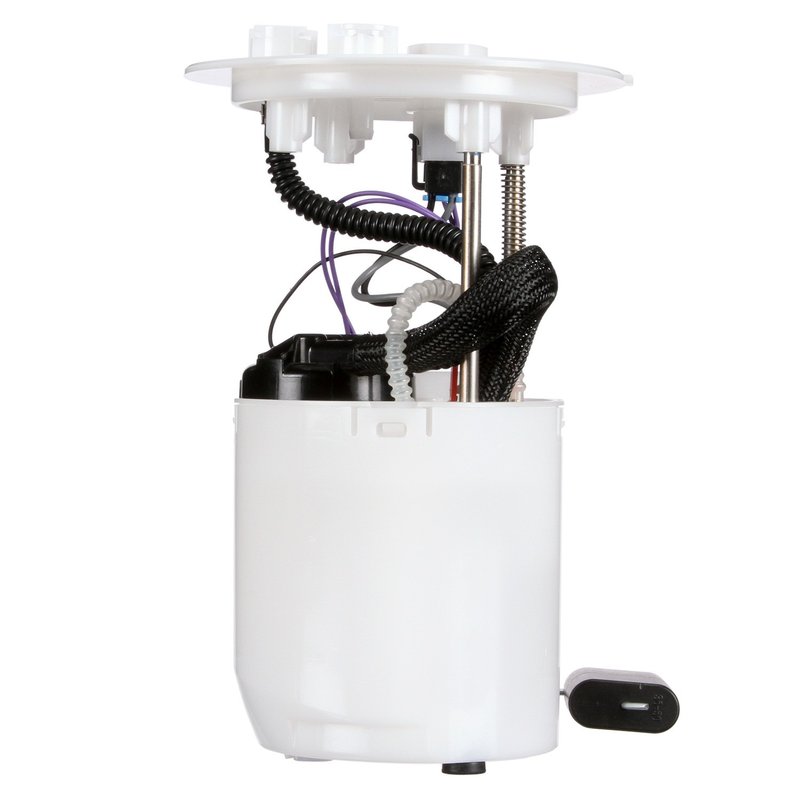

Delphi FG1381 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Toyota Sienna

The Delphi FG1381 fuel pump module assembly is designed specifically for Toyota Sienna models requiring a reliable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance and efficiency.

Key Features of Delphi FG1381 Fuel Pump Module

• Outlet outside diameter: 0.313 inches for precise fuel line connection
• Operates on 12.0 volts, compatible with standard automotive electrical systems
• Designed for gasoline fuel type with an internal strainer to prevent debris entry
• Includes fuel pressure regulator and gasket for secure installation
• Maximum pressure rating of 80 psi with a system pressure of 51 psi
• Four male blade terminals for reliable electrical connections
• Push-in outlet type with one outlet quantity for streamlined fuel flow
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Average current draw of 11 amps and flow rating of 20 liters per hour
• Standard replacement grade ensuring compatibility and durability

Detailed Description

The Delphi FG1381 fuel pump module assembly is engineered as an in-tank electric pump designed to meet the fuel delivery demands of Toyota Sienna vehicles. Featuring an internal strainer inlet and a push-in outlet, this module maintains clean fuel flow while preventing contaminants from entering the fuel system. The included fuel pressure regulator maintains consistent pressure up to 80 psi, supporting engine performance and fuel efficiency. The assembly also comes with a gasket and fuel level sender assembly, providing a complete replacement solution. With four male blade terminals, the electrical connections are secure and compatible with factory wiring harnesses.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Toyota Sienna models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel delivery interruptions caused by clogged strainers or debris
• Prevents engine performance issues related to weak or failing fuel pumps

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to avoid electrical hazards
• Verify compatibility with Toyota Sienna model year and fuel system specifications
• Use the included gasket to prevent fuel leaks and ensure a proper seal
• Handle the fuel level sender assembly carefully to avoid damage to the float arm
• Follow manufacturer instructions for torque specifications on mounting components

Quality Assurance and Warranty

The Delphi FG1381 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure reliable operation under normal driving conditions. While specific warranty terms may vary, Delphi products typically include coverage against defects in materials and workmanship to provide confidence in your purchase.
