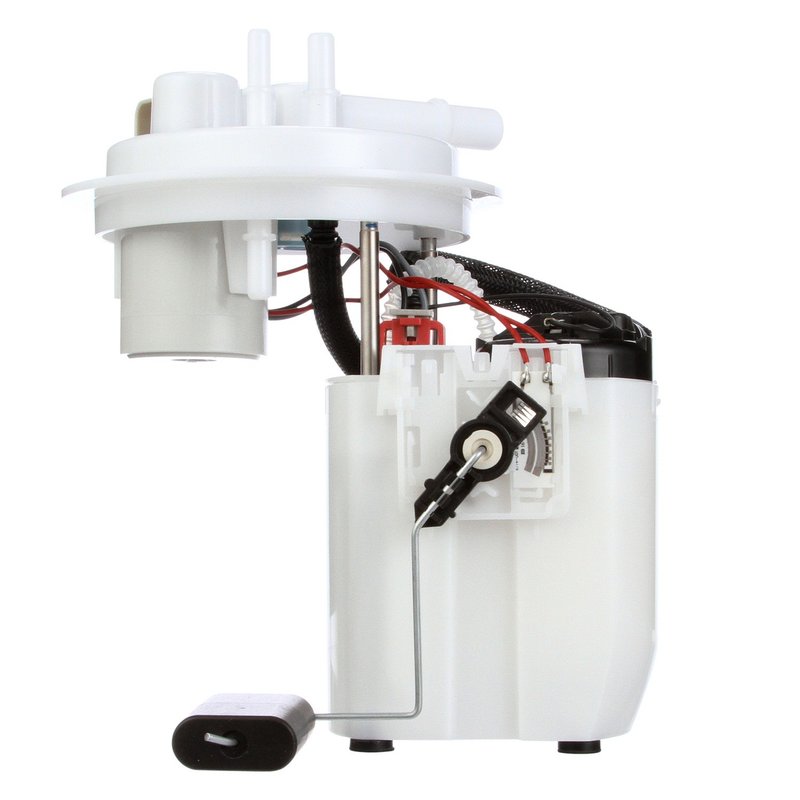

Delphi FG1384 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1384 fuel pump module assembly is designed for reliable fuel delivery in select Chevrolet, Pontiac, and Saturn vehicles. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance in models like the Chevrolet Malibu, Pontiac G6, and Saturn Aura.

• 12.0 Volt electric fuel pump with integrated regulator
• Includes fuel level sender assembly with float arm
• Internal strainer and quick connect outlet for efficient fuel filtration and connection
• Compatible with gasoline fuel systems requiring 58 psi system pressure
• Four male blade terminals for secure electrical connections
• Comes with gasket and seal for proper installation
• Average flow rating of 20 liters per hour and maximum pressure of 78 psi
• Includes vapor pressure sensor for emissions control

Technical Details and Features

The Delphi FG1384 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an internal strainer inlet and two quick connect outlets with a 0.375-inch outside diameter, ensuring efficient fuel flow and filtration. The module includes a regulator to maintain system pressure at 58 psi, with a maximum pressure rating of 78 psi. Electrical connections are made via four male blade terminals, providing a secure and reliable interface. The assembly also incorporates a fuel level sender assembly with a float arm, allowing accurate fuel level readings. Additionally, a vapor pressure sensor is included to support emissions system functionality. This standard replacement grade module comes complete with a gasket and seal to ensure a proper fit and prevent leaks during installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Malibu
• Pontiac G6
• Saturn Aura

It is designed specifically for in-tank installation in these models, providing a direct replacement for the original equipment fuel pump module. The Delphi FG1384 supports fuel delivery needs for gasoline-powered engines in these vehicles, maintaining proper fuel pressure and flow for consistent engine operation.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure irregularities causing engine performance issues
• Fuel contamination from inadequate filtration
• Electrical connection problems affecting pump operation

Installation Notes and Tips

When installing the Delphi FG1384 fuel pump module assembly, ensure the gasket and seal are properly seated to prevent leaks. Verify that the four male blade terminals are securely connected to the vehicle’s wiring harness. The quick connect outlets should be firmly attached to the fuel lines with the correct 0.375-inch diameter fittings. It is recommended to relieve fuel system pressure before removal and installation to avoid fuel spray. Follow manufacturer guidelines for torque specifications and safety precautions during installation.

Quality Assurance and Warranty

The Delphi FG1384 fuel pump module assembly is manufactured to meet standard replacement quality requirements. It undergoes rigorous testing to ensure consistent fuel flow, pressure regulation, and electrical performance. This part includes a fuel level sender and vapor pressure sensor to maintain system functionality. Warranty coverage details should be confirmed with the parts provider, as they may vary by distributor.
