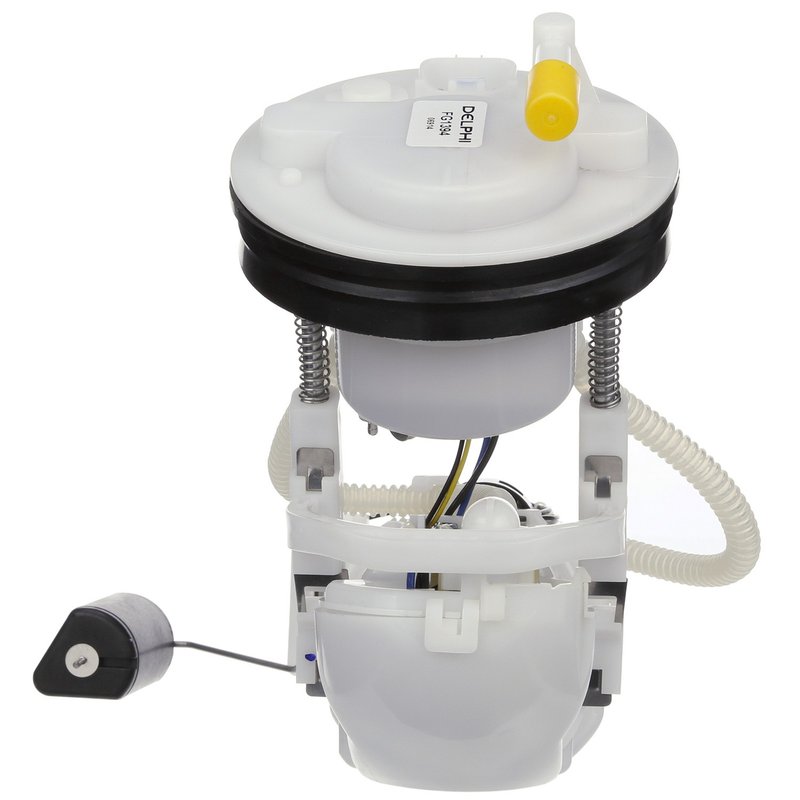

Delphi FG1394 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Acura and Honda Vehicles

The Delphi FG1394 fuel pump module assembly is designed specifically for Acura and Honda Civic and EL models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• Compatible with gasoline fuel systems
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 43 psi and system pressure of 36 psi
• Quick connect outlet with 0.375 inch outside diameter
• Five blade terminals with male gender for secure electrical connections
• Internal strainer inlet and included strainer for fuel filtration
• Comes with lock ring and gasket for proper sealing
• Standard replacement grade for reliable performance

Technical Details and Features

The Delphi FG1394 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems in Acura and Honda Civic and EL models. It features an internal electric pump with an average flow rating of 22 liters per hour and an average current draw of 6 amps. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump maintains a maximum pressure of 43 psi and a system pressure of 36 psi, ensuring consistent fuel delivery under various driving conditions.

The assembly includes a quick connect outlet with a 0.375 inch outside diameter and a single outlet port. The inlet type is a strainer, which is internal to the module, helping to filter out contaminants before fuel reaches the pump. Electrical connections are made via five male blade terminals, providing secure and reliable power delivery. The package also contains a lock ring and gasket to ensure a proper seal within the fuel tank.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Acura Civic
• Honda Civic
• Honda EL

It is designed to replace the original fuel pump module in these models, restoring proper fuel delivery and fuel level sensing functions.

Common Issues Addressed by the Delphi FG1394 Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings on the dashboard
• Fuel pressure drops causing engine performance issues
• Fuel pump noise or electrical connection problems
• Fuel contamination due to damaged or missing strainer

Installation Notes and Tips

Installation of the Delphi FG1394 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is safely supported and the fuel system is depressurized before beginning work. The included lock ring and gasket must be properly seated to prevent fuel leaks. Verify all electrical connections are secure and terminals are clean. It is recommended to inspect the fuel tank for debris and clean as necessary before installing the new module.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. This standard replacement grade part includes a fuel level sender assembly and all necessary sealing components. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship to ensure reliability and customer confidence.
