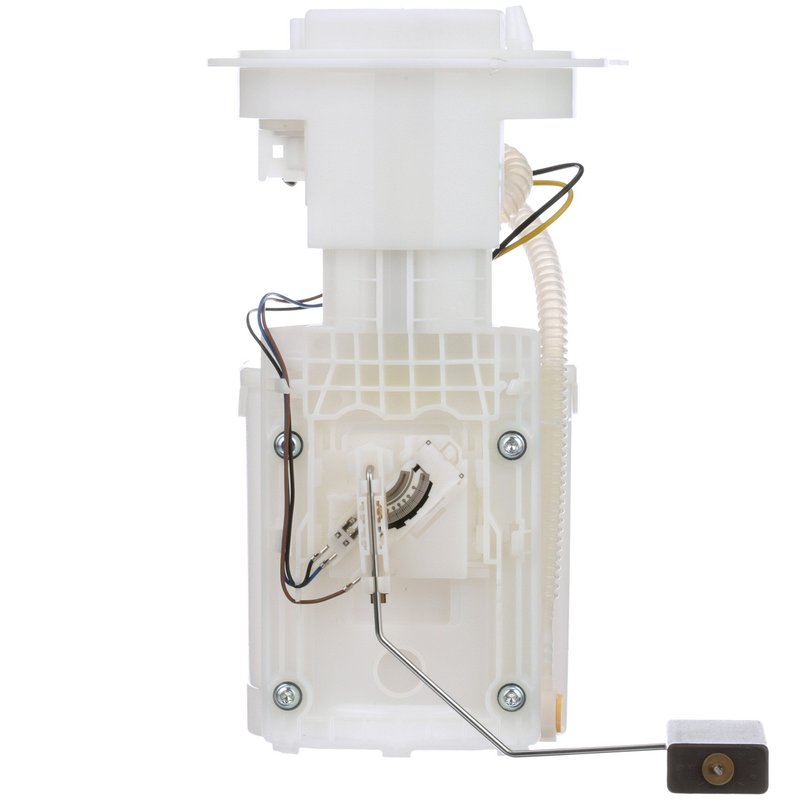

Delphi FG1403 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Audi and Volkswagen

The Delphi FG1403 fuel pump module assembly is designed to provide consistent fuel delivery for select Audi and Volkswagen models. Engineered for in-tank installation, this electric fuel pump module ensures proper fuel pressure and flow to maintain engine performance.

• Compatible with Audi A3, Volkswagen Beetle, Eos, GTI, Jetta, and TT models
• 12-volt electric pump with a maximum pressure of 94 psi and system pressure of 65 psi
• Includes internal strainer and fuel level sender assembly for accurate fuel monitoring
• Features quick connect outlet with 0.313 inch outside diameter and dual outlet ports
• Equipped with a regulator and blade-type male terminals (5 terminals total)
• Average flow rating of 28 and average current draw of 8 amps

Technical Specifications and Features

The Delphi FG1403 fuel pump module assembly operates on a 12.0-volt system and is designed specifically for gasoline fuel types. It features an internal strainer inlet and a quick connect outlet type with two outlet ports, facilitating efficient fuel delivery. The module includes a regulator to maintain consistent fuel pressure and a fuel level sender assembly with resistance values ranging from 50 ohms (empty) to 250 ohms (full), ensuring accurate fuel gauge readings. The pump uses blade-type male terminals with five connections, supporting reliable electrical interfacing. This in-tank electric pump module delivers an average flow rating of 28 and maintains system pressure at 65 psi, with a maximum pressure rating of 94 psi.

Applications and Problem Resolution

This fuel pump module assembly is compatible with various Audi and Volkswagen models, including the Audi A3 and Volkswagen Beetle, Eos, GTI, Jetta, and TT. It is designed to address common fuel delivery issues such as:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assemblies
• Low fuel pressure affecting engine performance and fuel efficiency
• Fuel pump noise or failure from worn internal components
• Clogged fuel strainers reducing fuel flow

Installation Notes and Tips

Installation of the Delphi FG1403 fuel pump module assembly requires removal of the fuel tank for in-tank replacement. Ensure the electrical connections use the blade-type male terminals and verify the quick connect outlet fittings are properly secured to prevent leaks. It is recommended to inspect the fuel tank and lines for debris before installation. Follow all safety precautions when working with fuel systems, including depressurizing the fuel system and disconnecting the battery.

Quality Assurance and Warranty

Delphi provides this FG1403 fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for durability and performance. The product includes a fuel pump module assembly with float arm and an instruction sheet for installation guidance. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship.
