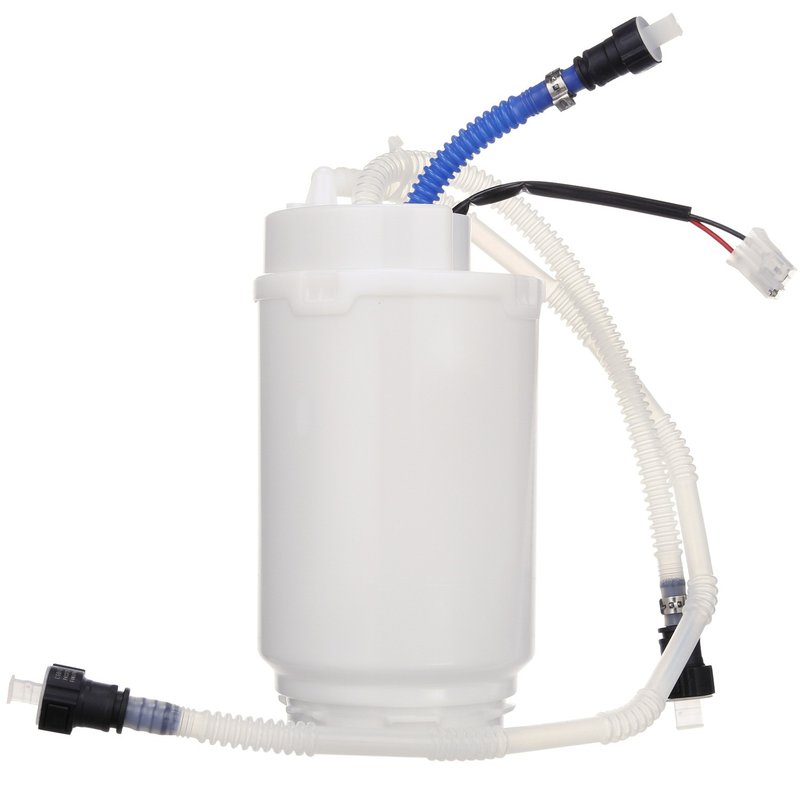

Delphi FG1405 Fuel Pump and Strainer Set - Left

Delphi FG1405 Fuel Pump and Strainer Set Overview

The Delphi FG1405 fuel pump and strainer set is designed specifically for Volkswagen Touareg models requiring reliable in-tank fuel delivery. This electric fuel pump operates at 12 volts and is engineered to maintain consistent fuel flow and pressure for optimal engine performance.

• Electric in-tank fuel pump with internal strainer
• Compatible with gasoline fuel systems
• 12.0 volts operating voltage with blade-type female terminals (2 terminals)
• Maximum pressure rating of 94 psi and system pressure of 58 psi
• Includes wiring harness and strainer for easy installation
• Outlet outside diameter of 0.375 inches with female quick connect outlets (3 outlets)
• Average flow rating of 48 and average current draw of 8 amps
• Standard replacement grade for Volkswagen Touareg fuel systems

Technical Details and Features

The Delphi FG1405 fuel pump and strainer set is engineered for precision fuel delivery in Volkswagen Touareg vehicles. Its electric pump type ensures efficient fuel transfer from the tank, supported by an internal strainer that filters contaminants before fuel reaches the engine. The pump features a female quick connect outlet with three outlet ports, each measuring 0.375 inches in diameter, facilitating secure and leak-free connections. Operating at 12 volts, the pump uses blade-type female terminals with two connections, supported by an included wiring harness for straightforward electrical integration.

With a maximum pressure capacity of 94 psi and a system pressure of 58 psi, this pump maintains consistent fuel pressure to support engine demands. The average flow rating of 48 ensures adequate fuel volume, while the average current draw of 8 amps reflects efficient power consumption. Designed as a standard replacement part, the FG1405 meets the specifications required for Volkswagen Touareg fuel systems without including a regulator or gasket/seal.

Applications and Problem Resolution

This fuel pump and strainer set is intended for use in Volkswagen Touareg models requiring an in-tank electric fuel pump replacement. It addresses several common fuel system issues, including:

• Intermittent or complete fuel delivery failure
• Low fuel pressure causing engine performance problems
• Fuel contamination leading to clogged injectors
• Electrical connection issues with worn terminals or wiring
• Fuel pump noise or overheating due to inefficient operation

Installation Notes and Tips

Installation of the Delphi FG1405 fuel pump and strainer set should be performed with care to ensure proper fitment and function. Key considerations include:

• Confirm compatibility with Volkswagen Touareg model year and fuel system specifications
• Use the included wiring harness for secure electrical connections to the blade-type female terminals
• Ensure the internal strainer is properly seated to prevent fuel contamination
• Check all quick connect outlets for secure attachment to fuel lines
• Follow vehicle manufacturer guidelines for fuel system depressurization and safety

Quality Assurance and Warranty

Delphi manufactures the FG1405 fuel pump and strainer set to meet industry standards for durability and performance. This standard replacement grade part is tested to ensure consistent fuel delivery and electrical reliability. While specific warranty details may vary, Delphi products typically include coverage against manufacturing defects to provide confidence in long-term operation within Volkswagen Touareg fuel systems.
