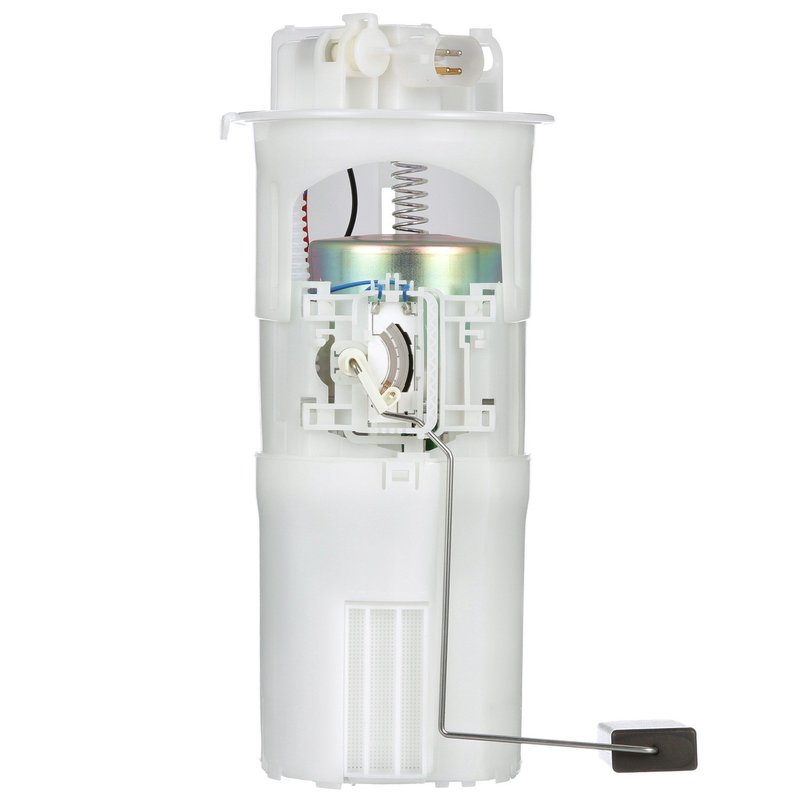

Delphi FG1409 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Land Rover Freelander

The Delphi FG1409 fuel pump module assembly is designed specifically for Land Rover Freelander models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance for gasoline engines requiring a 12-volt system.

• Electric fuel pump with integrated fuel level sender assembly
• Compatible with Land Rover Freelander fuel systems
• Includes internal strainer and regulator for clean, regulated fuel flow
• Female quick connect outlet with 0.313 inch outside diameter
• Operates at a system pressure of 51 psi with a maximum pressure of 94 psi
• Four-pin male terminal type for secure electrical connections
• Average flow rating of 26 liters per hour and average current draw of 8 amps

Detailed Description of Delphi FG1409 Fuel Pump Module

The Delphi FG1409 fuel pump module assembly is engineered as a standard replacement part for Land Rover Freelander vehicles. This in-tank electric pump features an internal strainer inlet and a female quick connect outlet, ensuring efficient fuel delivery and filtration. The module includes a fuel level sender assembly with resistance values ranging from 50 ohms (empty) to 738 ohms (full), providing accurate fuel gauge readings. Designed to operate at 12 volts, the pump maintains a system pressure of 51 psi and can handle a maximum pressure of 94 psi, supporting reliable engine performance under various driving conditions.

Common Applications and Issues Addressed

• Restores proper fuel pressure and flow in Land Rover Freelander fuel systems
• Resolves fuel delivery interruptions caused by faulty or worn fuel pumps
• Corrects inaccurate fuel gauge readings due to malfunctioning fuel level sender
• Eliminates engine stalling or hesitation related to fuel supply problems
• Replaces damaged or clogged internal strainers affecting fuel filtration

Installation Notes and Tips

Installation of the Delphi FG1409 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the electrical connectors match the four-pin male terminal configuration. The module does not include a gasket or lock ring, so reuse existing components or source replacements as needed. Follow vehicle-specific service manuals for safe fuel system handling and proper torque specifications during installation.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1409 is a standard replacement grade part designed to provide reliable operation and durability. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship. Consult product documentation or supplier information for detailed warranty conditions.
