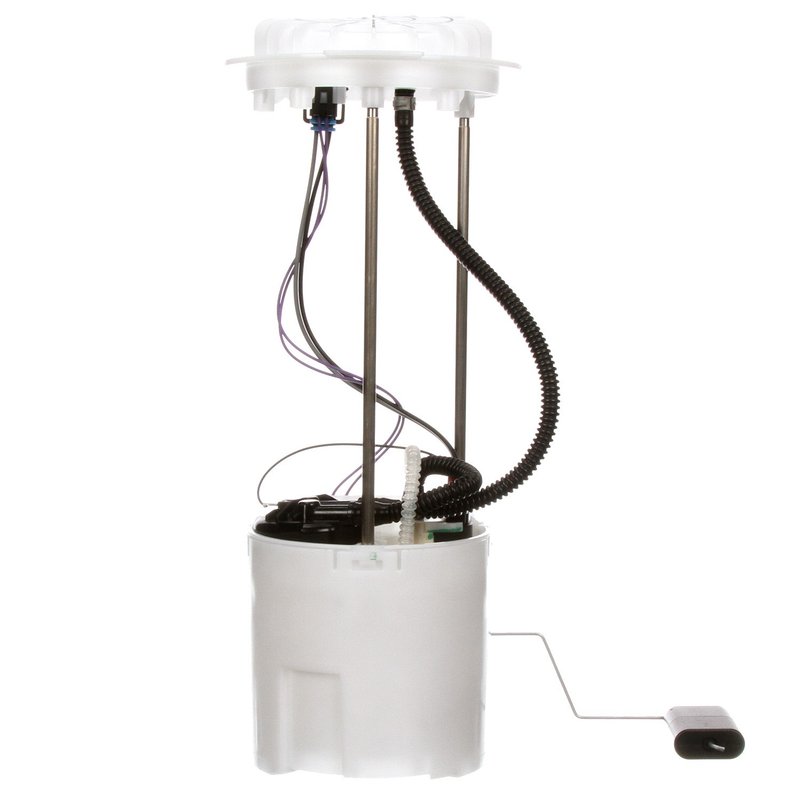

Delphi FG1432 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ram 1500, 2500, 3500

The Delphi FG1432 fuel pump module assembly is designed to provide consistent fuel delivery for Ram 1500, 2500, and 3500 models. Engineered for gas-powered vehicles, this in-tank electric fuel pump ensures optimal performance and fuel efficiency.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Ram 1500, 2500, and 3500 gas models
• 12.0 Volt operation with a maximum pressure of 78 psi
• Includes regulator, internal strainer, and gasket for secure installation
• Blade-type male terminals with four connections for reliable electrical contact
• Quick connect outlet with 0.375 inch outside diameter
• Standard replacement grade with average flow rating of 20

Technical Details and Features

The Delphi FG1432 fuel pump module assembly operates at 12 volts and is designed specifically for gas fuel systems. It features an internal strainer inlet and a quick connect outlet, facilitating efficient fuel flow and easy installation. The module includes a built-in fuel pressure regulator maintaining system pressure at 58 psi, with a maximum pressure rating of 78 psi to ensure consistent fuel delivery under various operating conditions. The assembly comes with a fuel level sender assembly, providing accurate fuel level readings for the vehicle’s gauge. Electrical connections are made via four blade-type male terminals, supporting stable current flow with an average draw of 10 amps. The pump’s resistance ranges from 50 ohms when full to 990 ohms when empty, reflecting its operational status.

Applications and Problem Solving

• Replaces faulty or failing fuel pump modules in Ram 1500, 2500, and 3500 gas models
• Resolves issues with inconsistent fuel pressure or delivery
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel pump noise or electrical connection problems
• Improves engine performance by restoring proper fuel flow

Installation Notes and Tips

Installation of the Delphi FG1432 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket included is properly seated to prevent fuel leaks. The quick connect outlet simplifies fuel line attachment, but verify secure connections to avoid pressure loss. Electrical terminals are blade-type male connectors; confirm compatibility with vehicle wiring harness and secure all four terminals. Follow all safety precautions when working with fuel system components, including depressurizing the fuel system before removal.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for Ram 1500, 2500, and 3500 models. The product includes a gasket and strainer to ensure proper sealing and filtration. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official documentation for exact warranty terms.
