DelphiPart #: FG1437

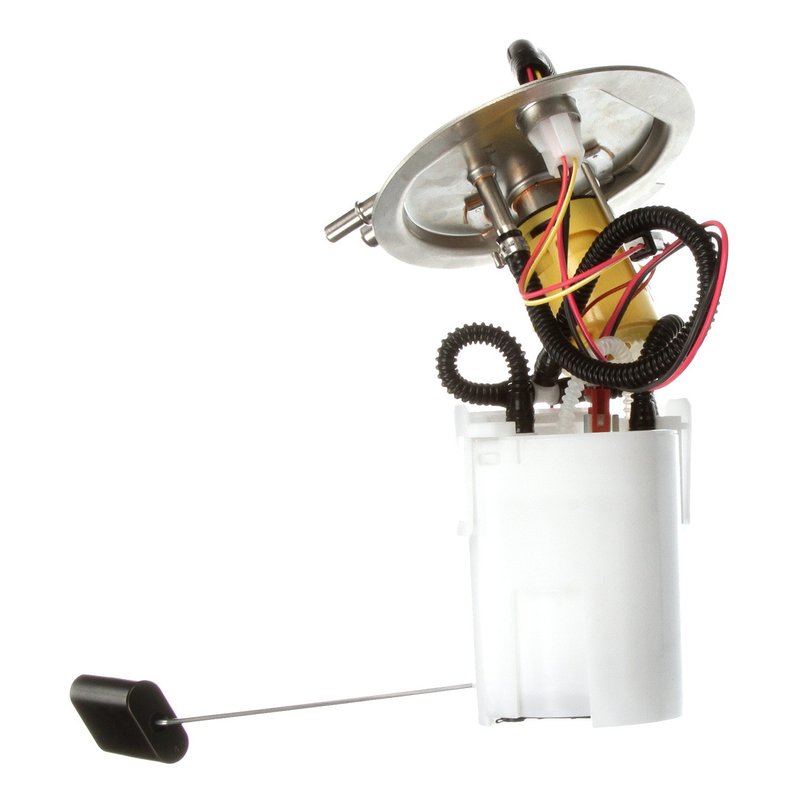

Delphi FG1437 Fuel Pump Module Assembly
⚙️ 50 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$393.54Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford, F-250 Super Duty and F-350 Super Duty
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Fuel Pump Module Assembly options
Reliable Fuel Pump Module Assembly for Ford Super Duty Trucks
The Delphi FG1437 fuel pump module assembly is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.
- 12.0 Volt electric fuel pump with integrated fuel level sender assembly
- Compatible with gasoline fuel systems
- Includes regulator, internal strainer, and gasket for secure installation
- Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
- Designed for in-tank installation with pin-type male terminals (4 terminals)
- System pressure rated at 44 psi with a maximum pressure of 78 psi
- Average flow rating of 14 gallons per hour and average current draw of 10 amps
Technical Details and Features
The Delphi FG1437 fuel pump module assembly is engineered to meet the fuel delivery requirements of Ford F-250 Super Duty and F-350 Super Duty trucks. Operating at 12 volts, this electric pump features an internal strainer inlet and a quick connect outlet type with two outlet ports, each measuring 0.375 inches in diameter. The assembly includes a fuel level sender with float arm, ensuring accurate fuel gauge readings. The integrated regulator maintains system pressure at 44 psi, with a maximum pressure capacity of 78 psi to support engine demands. The pump’s resistance ranges from 15 ohms when empty to 160 ohms when full, and it draws an average current of 10 amps while delivering a flow rate of 14 gallons per hour. The module comes with a gasket and strainer included for a complete replacement solution.
Compatible Vehicles and Applications
This fuel pump module assembly is compatible with the following Ford models:
- Ford F-250 Super Duty
- Ford F-350 Super Duty
It is designed for gasoline fuel systems and intended for in-tank installation, making it suitable for standard replacement needs in these heavy-duty trucks.
Common Issues Addressed by the Delphi FG1437
- Fuel delivery interruptions causing engine stalling or hesitation
- Inaccurate fuel level readings due to faulty sender assembly
- Low fuel pressure affecting engine performance
- Fuel pump failure resulting in no-start conditions
- Contaminated fuel flow due to damaged or clogged strainers
Installation Notes and Tips
When installing the Delphi FG1437 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. The module is designed for in-tank installation, so proper handling of the fuel tank and connections is essential. Use the included gasket and verify that the internal strainer is correctly positioned to avoid fuel contamination. Confirm that the pin-type male terminals are securely connected to maintain electrical continuity. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.
Quality Assurance and Warranty
Delphi provides a standard replacement grade fuel pump module assembly engineered to meet OEM specifications. The FG1437 part number undergoes rigorous testing to ensure reliable performance and durability. While specific warranty details may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Refer to the product documentation or Delphi’s official resources for exact warranty terms.
| Brand | Delphi |
| Part Number | FG1437 |
| Average Current Draw | 10 |
| Average Flow Rating | 14 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 78.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
This part fits 50 vehicles. Search below:
| Year | Make | Model | Submodel | Body Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Ford | F-250 Super Duty | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2007 | Ford | F-250 Super Duty | XLT | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2007 | Ford | F-250 Super Duty | XL | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2007 | Ford | F-250 Super Duty | Lariat | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2007 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | King Ranch | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2007 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-250 Super Duty | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2006 | Ford | F-250 Super Duty | XLT | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-250 Super Duty | XL | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-250 Super Duty | Lariat | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | King Ranch | 156.2" | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. | |
| 2006 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2005 | Ford | F-250 Super Duty | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2005 | Ford | F-250 Super Duty | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2005 | Ford | F-350 Super Duty | Standard Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Extended Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Crew Cab Pickup | 156.2" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Standard Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Extended Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Crew Cab Pickup | 141.8" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
5C3Z 9H307-BE691586C3Z 9H307-BAA33204A43035CFG1437E2386E2641MP76230P76876MPFS-305RE0924SSP1150SP2379M
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
