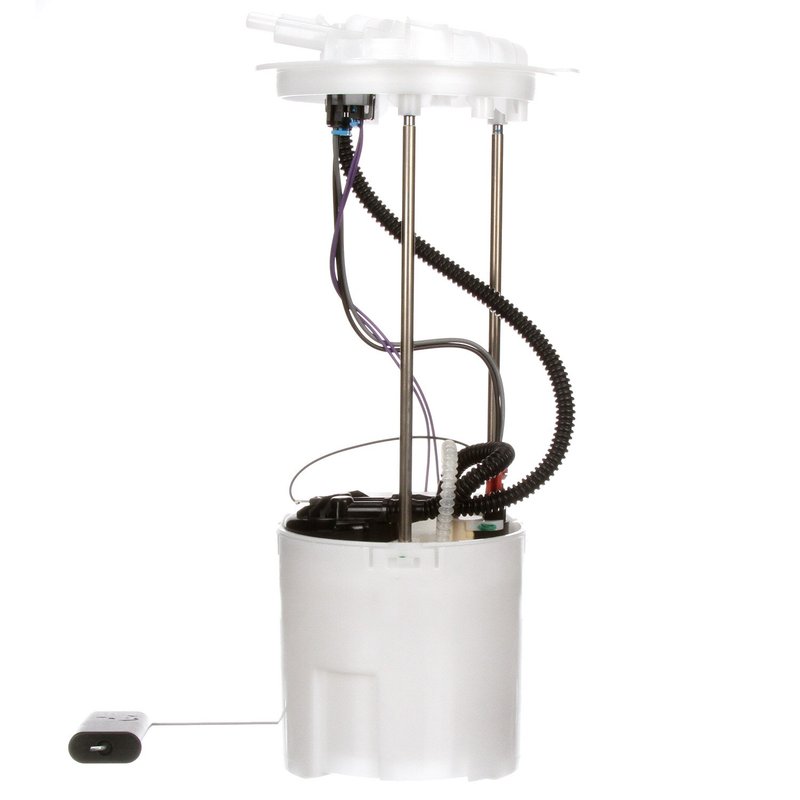

Delphi FG1439 Fuel Pump Module Assembly
| Brand | Delphi FG1439 |
|---|---|
| Average Current Draw | 10 |
| Average Flow Rating | 20 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Flex |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 78.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 990.0 |
| Resistance Ohms Full | 50.0 |
| Strainer Included | Yes |
| System Pressure | 65 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Ram · 4 vehicles |
Standard replacement. Built as a direct-fit fuel pump module assembly.
OE heritage. Backed by 100 years of OE experience and supplier knowledge.
Complete module. Includes a fuel level sender, regulator, strainer, and seal.
Cross-references Airtex Fuel Pumps E7270M, Spectra Premium SP7118M and Spectra Premium SP7223M for the same application. See all 9.
Delphi FG1439 Fuel Pump Module Assembly
Delphi FG1439 is an in-tank fuel pump module assembly for select Ram 1500 applications. It combines the pump, fuel level sender assembly, regulator, seal, and strainer in one OE-style replacement package for 12-volt flex-fuel systems.
Built from Delphi’s OE heritage and supplier experience, this fuel pump module assembly is specified for consistent fuel delivery and accurate tank level reporting on compatible Ram 1500 models.
Key Features
- In-tank electric fuel pump module assembly
- 12.0-volt operation with blade terminals and 4-terminal male connection
- Regulator included for system control
- Fuel level sender assembly included
- Strainer and gasket/seal included
- Quick-connect outlet with 0.375 in. outside diameter
- Standard replacement for flex-fuel applications
- Maximum pressure rating: 78.0
- System pressure: 65 psi
Detailed Description
The Delphi FG1439 fuel pump module assembly is engineered for select 2013 and 2015-2017 Ram 1500 trucks. It is an in-tank electric module with an internal strainer, quick-connect outlet, integrated regulator, and fuel level sender assembly, making it a direct replacement choice for fuel system service on Ram 1500 models with flex-fuel requirements. Delphi’s OE background is reflected in the module’s application-focused design and broad aftermarket coverage.
This part cross-references Airtex Fuel Pumps E7270M for the same application. Delphi FG1439 is also referenced by part number EFG1439 in interchange listings.
What It Helps Fix
- Hard starting caused by weak or inconsistent fuel delivery
- Engine hesitation or stalling from low fuel pressure
- Incorrect fuel gauge readings from a worn sender
- Fuel pump noise associated with a failing in-tank module
- Fuel system performance issues on compatible Ram 1500 trucks
Installation Notes and Tips
Fits 2013 Ram 1500, N/A. Fits 2015-2017 Ram 1500, N/A. Clean the fuel tank before installing the fuel pump to prevent future seal problems, as noted in the fitment data. Verify connector style, outlet type, and system pressure before installation. Use the included seal during service and confirm all fuel line connections are fully seated.
Quality Assurance
Delphi draws on more than 100 years of OE experience and supplies components to major automakers, with aftermarket parts built from that OE knowledge. FG1439 is a standard replacement fuel pump module assembly for compatible Ram 1500 applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Ram | 1500 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2016 | Ram | 1500 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2015 | Ram | 1500 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2013 | Ram | 1500 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
