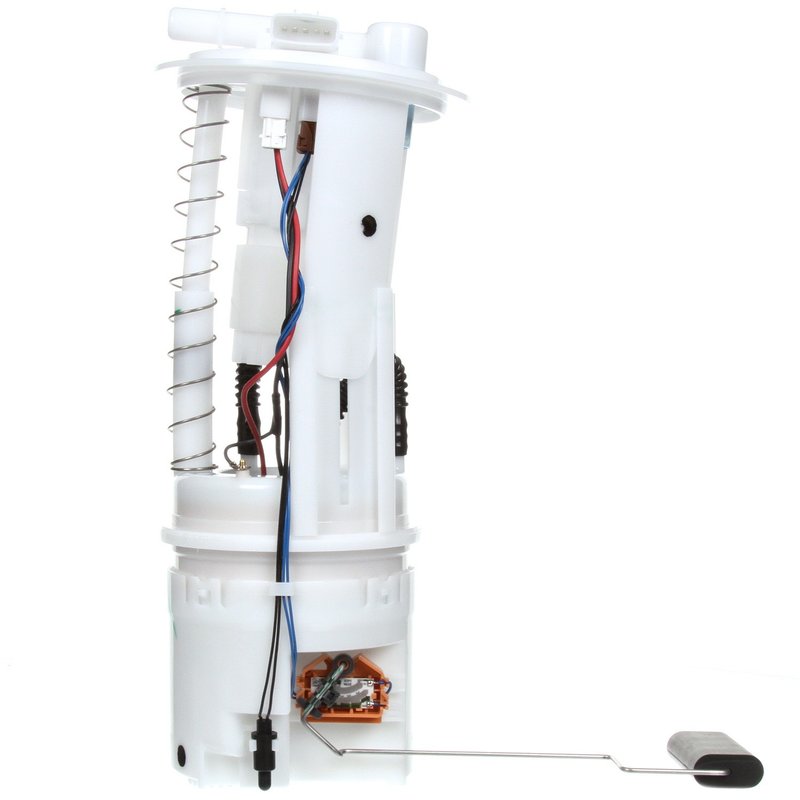

Delphi FG1443 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Nissan Pathfinder

The Delphi FG1443 fuel pump module assembly is designed specifically for Nissan Pathfinder models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module ensures optimal engine performance and fuel efficiency.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gasoline fuel systems in Nissan Pathfinder vehicles
• Includes regulator, internal strainer, and gasket for secure installation
• Operates at 12 volts with a maximum pressure of 94 psi and system pressure of 51 psi
• Features quick connect outlets with 0.375 inch outside diameter and 5 blade terminals

Technical Specifications and Features

The Delphi FG1443 fuel pump module assembly is an in-tank electric pump designed for gasoline applications. It includes a built-in fuel pressure regulator and an internal strainer to protect the fuel system from contaminants. The module features two quick connect outlets with a 0.375 inch outside diameter, facilitating straightforward fuel line connections. It operates at 12 volts with an average current draw of 8 amps and provides an average flow rating of 26 liters per hour. The assembly also includes a fuel level sender assembly with a float arm, allowing accurate fuel gauge readings. The terminal configuration consists of five male blade terminals, ensuring compatibility with the Nissan Pathfinder's electrical system. A gasket is included to maintain a proper seal during installation.

Compatible Nissan Pathfinder Fuel System Applications

This fuel pump module assembly is compatible with Nissan Pathfinder models that require a standard replacement in-tank electric fuel pump. It is designed to address common fuel delivery issues such as:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings on the dashboard
• Fuel pressure drops leading to poor engine performance
• Fuel contamination due to a damaged or missing strainer
• Electrical connection problems from worn or corroded terminals

Installation Notes and Tips

When installing the Delphi FG1443 fuel pump module assembly, ensure the vehicle's battery is disconnected to prevent electrical hazards. Carefully remove the old fuel pump module from the tank, taking care not to damage the fuel lines or electrical connectors. Replace the gasket included with the new module to maintain a proper seal and prevent fuel leaks. Verify that the quick connect outlets and blade terminals are securely connected. After installation, check for fuel leaks and proper fuel pressure before starting the engine.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The FG1443 is a standard replacement grade part backed by Delphi's quality standards. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship to ensure reliable operation in Nissan Pathfinder vehicles.
