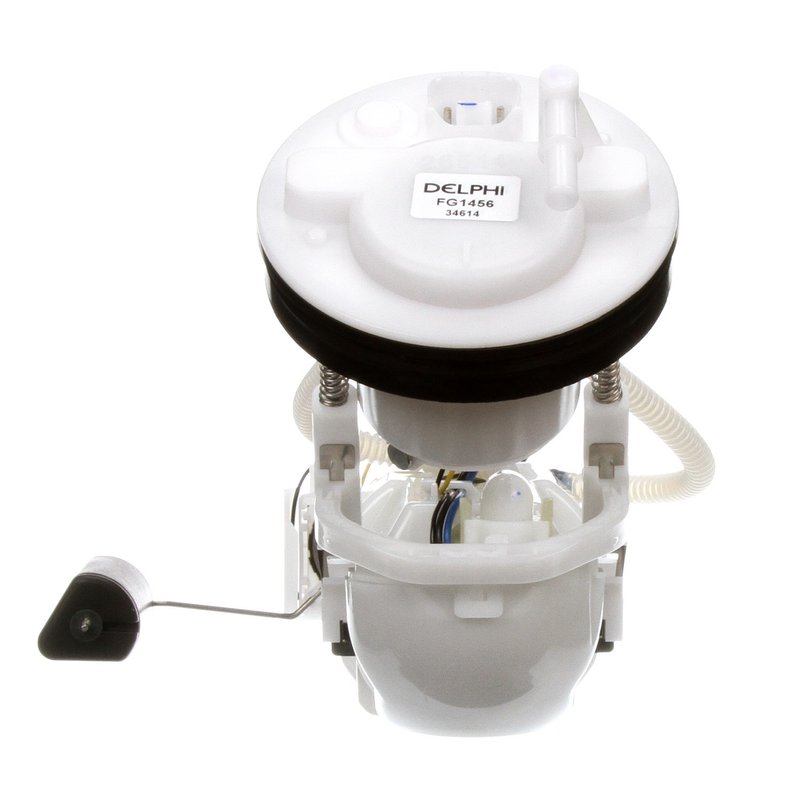

Delphi FG1456 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Honda Odyssey

The Delphi FG1456 fuel pump module assembly is designed specifically for Honda Odyssey models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm
• Built-in regulator maintaining system pressure at 49 psi
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Five male blade terminals with included lock ring and gasket
• Average flow rating of 34 liters per hour and average current draw of 8 amps
• Standard replacement grade for reliable performance

Detailed Features and Specifications

The Delphi FG1456 fuel pump module assembly is engineered for gas-fueled Honda Odyssey vehicles. It operates at 12 volts and features an internal electric pump capable of delivering an average flow rate of 34 liters per hour. The module includes a fuel level sender assembly with a float arm, allowing accurate fuel gauge readings. The built-in regulator maintains system pressure at 49 psi, with a maximum pressure rating of 57 psi, ensuring consistent fuel delivery under varying engine demands.

This module is designed with a quick connect outlet type measuring 0.375 inches in diameter and an internal strainer inlet to prevent debris from entering the fuel system. The assembly includes five male blade terminals for secure electrical connections, along with a lock ring and gasket to ensure proper sealing within the fuel tank. The resistance values range from 780 ohms when empty to 20 ohms when full, supporting precise fuel level measurement.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Honda Odyssey models requiring part number FG1456. It is intended for use as a direct replacement for the original in-tank fuel pump module, addressing common fuel delivery and fuel level sensor issues.

• Resolves fuel delivery interruptions and engine stalling
• Corrects inaccurate or fluctuating fuel gauge readings
• Eliminates fuel pressure inconsistencies affecting engine performance
• Prevents fuel pump noise and premature failure
• Replaces worn or damaged fuel pump modules in Honda Odyssey

Installation Notes and Tips

Installation of the Delphi FG1456 fuel pump module assembly requires removal of the fuel tank or access through the service panel, depending on the vehicle year and configuration. Ensure the lock ring and gasket are properly seated to prevent fuel leaks. Verify all five blade terminals are securely connected and free of corrosion. Follow all safety precautions when working with fuel system components, including depressurizing the fuel system before removal.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for fit, form, and function. The product includes a gasket, lock ring, and instruction sheet for proper installation. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship.
