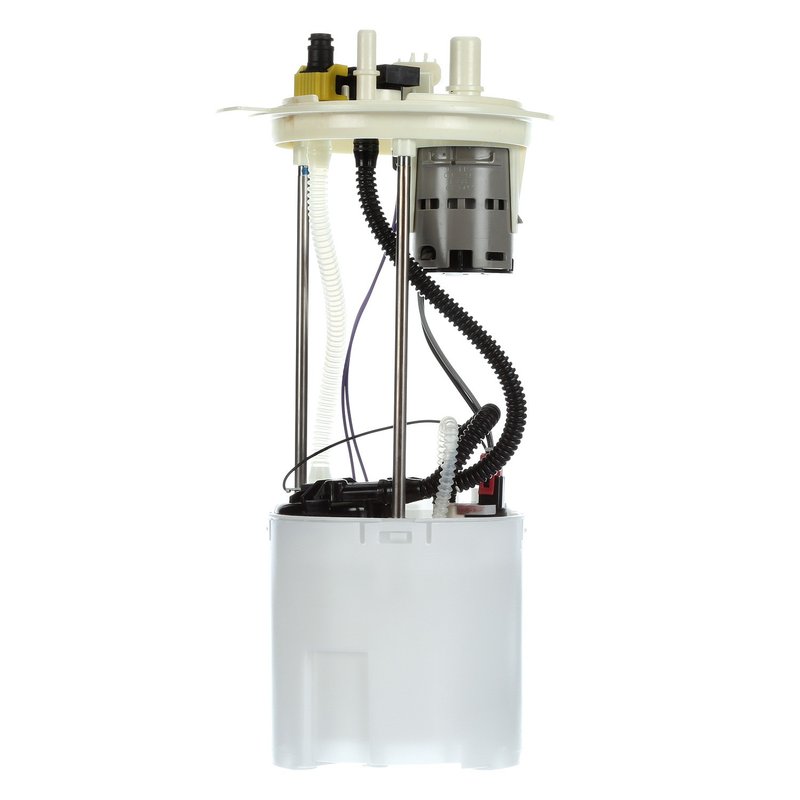

Delphi FG1479 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1479 fuel pump module assembly is designed for reliable fuel delivery in Ford E-150, E-250, and E-350 Super Duty vehicles. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for flex fuel applications.

• Compatible with Ford E-150, E-250, and E-350 Super Duty models
• Electric pump type with 13.0 voltage rating
• Includes fuel level sender assembly and internal strainer
• Maximum pressure of 62 psi and system pressure of 55 psi
• Quick connect outlet with 0.375 inch outside diameter
• Regulator and gasket/seal included for proper installation
• Four blade-type male terminals for secure electrical connection
• Supports flex fuel systems with vapor pressure sensor included

Technical Details and Features

The Delphi FG1479 fuel pump module assembly operates at an average current draw of 10 amps and provides an average flow rating of 39 liters per hour. It features an internal strainer inlet type and two quick connect outlets, ensuring efficient fuel delivery and filtration. The module includes a fuel level sender assembly with resistance values ranging from 10 ohms (full) to 180 ohms (empty), allowing accurate fuel gauge readings. Designed for in-tank installation, this module supports flex fuel types and includes a vapor pressure sensor to monitor fuel system conditions.

Applications and Problem Resolution

This fuel pump module assembly is specifically compatible with Ford E-150, E-250, and E-350 Super Duty models, making it suitable for standard replacement needs. It addresses common fuel system issues such as:

• Inconsistent fuel pressure causing engine performance problems
• Faulty fuel level readings due to damaged sender units
• Fuel contamination from inadequate filtration
• Electrical connection failures with blade-type terminals
• Fuel pump failure in flex fuel systems

Installation Notes and Tips

When installing the Delphi FG1479 fuel pump module assembly, ensure the gasket or seal included is properly seated to prevent leaks. The module’s quick connect outlets simplify fuel line connections, but verify secure attachment to avoid fuel delivery interruptions. Use appropriate tools for blade terminal connections and confirm the correct orientation of the fuel level sender assembly. This module is designed for in-tank installation, so follow vehicle-specific service manual instructions for safe removal and installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for durability and performance. The FG1479 part undergoes rigorous testing to ensure consistent fuel delivery and accurate fuel level sensing. This standard replacement grade product includes a regulator and vapor pressure sensor to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
