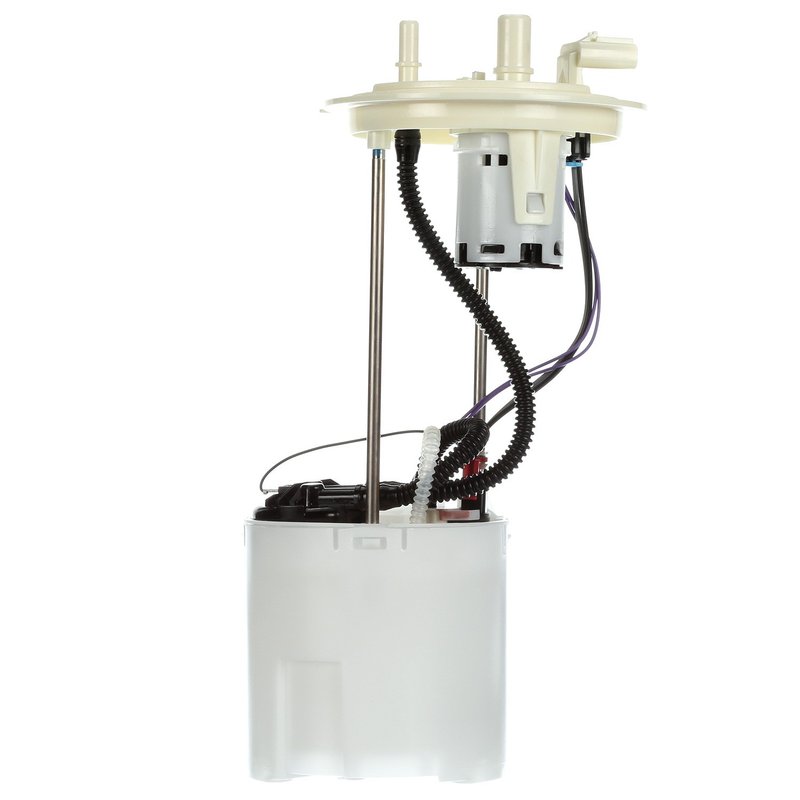

Delphi FG1481 Fuel Pump Module Assembly
| Brand | Delphi FG1481 |
|---|---|
| Average Current Draw | 10 |
| Average Flow Rating | 39 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 80.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 180.0 |
| Resistance Ohms Full | 10.0 |
| Strainer Included | Yes |
| System Pressure | 65 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 13.0 |
| Fits | Ford · 3 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built with decades of original-equipment experience and knowledge.
Complete assembly. Includes regulator, strainer, seal, and fuel level sender.
Cross-references 9L3Z 9A299-F, DFG1481 and DL3Z 9H307-A for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Ford F-150
Delphi FG1481 is a fuel pump module assembly for the 2012-2014 Ford F-150. It combines the in-tank electric pump, fuel level sender, regulator, seal, and strainer into a standard replacement assembly for gas applications.
- Fits 2012-2014 Ford F-150
- In-tank electric fuel pump module assembly for gas fuel systems
- Includes fuel level sender assembly, regulator, gasket or seal, and strainer
- Quick-connect outlet design with 2 outlets and 0.375 in. outlet outside diameter
- 13.0-volt operation with 65 psi system pressure and 80.0 max pressure
- Blade terminals, 4 terminal quantity, male terminal gender
- Average flow rating of 39 and average current draw of 10
OE-Style Fuel Delivery Performance
Built from Delphi’s OE heritage and supplier experience, FG1481 is engineered as a standard replacement fuel pump module assembly for the Ford F-150. It is made for in-tank installation and supports gasoline fuel delivery with an integrated regulator and sender assembly. Delphi FG1481 is a direct-fit service part for 2012, 2013, and 2014 Ford F-150 applications listed in the fitment data.
This part cross-references E2585M and PS-345 for the same application.
What This Part Helps Address
- Hard starting caused by weak or failing fuel pressure
- Engine hesitation or stalling from inconsistent fuel delivery
- Incorrect fuel gauge readings from a worn sender
- Fuel system leaks at the tank seal or module connection
- Poor drivability related to low pump output in the tank
Installation Notes and Tips
Clean the fuel tank before installing the fuel pump to help prevent future seal problems, as noted in the fitment data. Verify the quick-connect outlet, blade terminals, and in-tank configuration match the original module before installation. Always confirm fuel pressure and electrical connections after service.
Quality Assurance
Delphi draws on more than 100 years of OE experience and a broad aftermarket portfolio built from original-equipment knowledge. FG1481 is a standard replacement fuel pump module assembly for the Ford F-150, with OE-informed design and application coverage.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Ford | F-150 | 4WD | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2013 | Ford | F-150 | 4WD | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2012 | Ford | F-150 | 4WD | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
