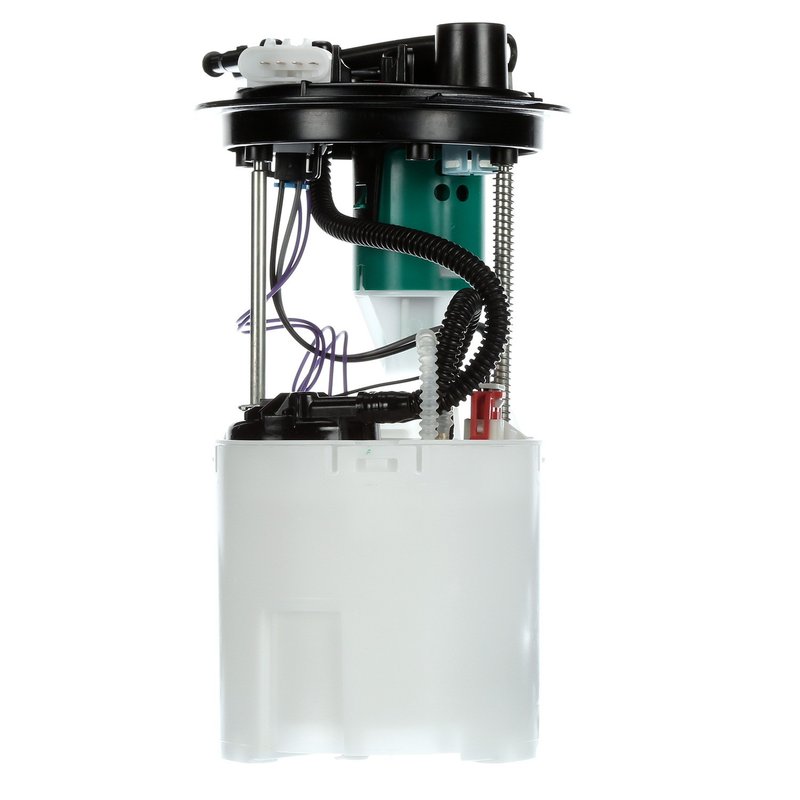

Delphi FG1510 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

Delphi FG1510 Fuel Pump Module Assembly

Brand Delphi FG1510
Outlet Outside Diameter 0.375
Voltage 13.0
Fuel Type Gas
Regulator Included Yes
Maximum Pressure 109.0
Terminal Type Blade
Gasket Or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick connect
Outlet Quantity 2
In Tank or External In tank
Resistance Ohms Empty 250.0
Resistance Ohms Full 40.0
Internal Or External Strainer Internal
Average Current Draw 10
Average Flow Rating 20
Pump Type Electric
Fuel Level Sender Assembly Included Yes
Item Grade Standard replacement
Package Contents Fuel pump module assembly w/float arm, seal, instruction sheet
System Pressure 55 psi
Vapor Pressure Sensor No
Fits Chevrolet · 2 vehicles

Standard replacement. Direct-fit fuel pump module assembly for straightforward service.

OE heritage. Built with 100 years of OE experience and supplier knowledge.

Complete assembly. Includes regulator, strainer, seal, and fuel level sender.

Cross-references Airtex Fuel Pumps E3749M, Airtex Fuel Pumps E4059M and Carter P76279M for the same application. See all 18.

$324.97Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $324.97
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Delphi FG1510 Fuel Pump Module Assembly

Delphi FG1510 is an in-tank fuel pump module assembly for gas applications, built with OE heritage and application knowledge drawn from Delphi’s long history supplying automakers. It includes the fuel level sender assembly, regulator, strainer, gasket or seal, and a float arm for a direct replacement on select Chevrolet Impala models.

Key Features

  • In-tank electric fuel pump module assembly for gas fuel systems
  • Includes fuel level sender assembly and float arm
  • Regulator included for system control
  • Strainer and gasket or seal included
  • Quick-connect outlet design with two outlets
  • Standard replacement part for OE-style service
  • Maximum pressure rated at 109.0
  • System pressure: 55 psi
  • Voltage: 13.0; average current draw: 10; average flow rating: 20

Detailed Description

Delphi FG1510 fuel pump module assembly is engineered for in-tank installation and built for select 2012-2013 Chevrolet Impala applications. It uses an electric pump design with a blade terminal connection, male terminals, and an internal strainer to support fuel delivery and tank-side filtration. The module also includes the fuel level sender assembly, helping restore both fuel supply and gauge function in one service part. Delphi’s OE background is reflected in the component design and coverage for late-model replacement needs.

This part cross-references Airtex Fuel Pumps (e.g., E3749M, E4059M) for the same application.

Fits 2012-2013 Chevrolet Impala, N/A. Notes: Two port cover for manufacturing use only; do not tamper with plugged port, utilize open port to prevent fuel tank contamination leading to premature pump failure. Cleaning the tank before installation is advised, use fuel tank cleaning kit FC01.

What It Helps Address

  • Hard starting caused by weak or failing fuel delivery
  • Engine stalling from inconsistent fuel pressure
  • Fuel gauge inaccuracy from a worn sender assembly
  • Low fuel pressure in an in-tank gas system
  • Contamination-related pump wear in the fuel tank

Installation Notes and Tips

Verify the vehicle application before installation and confirm the in-tank module matches the original connector, outlet style, and sender configuration. For the listed Chevrolet Impala application, follow the note regarding the plugged port and use the open port to avoid tank contamination. Delphi also recommends cleaning the fuel tank before installation to reduce the risk of premature pump failure.

Quality Assurance

Delphi builds this module using OE-focused engineering and decades of original-equipment experience. The FG1510 is a standard replacement fuel pump module assembly intended to restore factory-style fuel delivery performance on supported Chevrolet Impala applications.

Related reading

This part fits 2 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelFuel TypePositionNotes
2013ChevroletImpalaGASN/ATwo port cover for manufacturing use only; Do not tamper with plugged port, utilize open port to prevent fuel tank contamination leading to premature pump failure; Cleaning tank before installation is advised, use fuel tank cleaning kit FC01.
2012ChevroletImpalaGASN/ATwo port cover for manufacturing use only; Do not tamper with plugged port, utilize open port to prevent fuel tank contamination leading to premature pump failure; Cleaning tank before installation is advised, use fuel tank cleaning kit FC01.
Directly replaces or cross-references 18 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E3749MAirtex Fuel Pumps — E4059MCarter — P76279MSpectra Premium — SP6659M191683961917982419258596192585971929971223120337A30373DFG1510M100053M100116MU2106MU2166P77104MSP6031M
