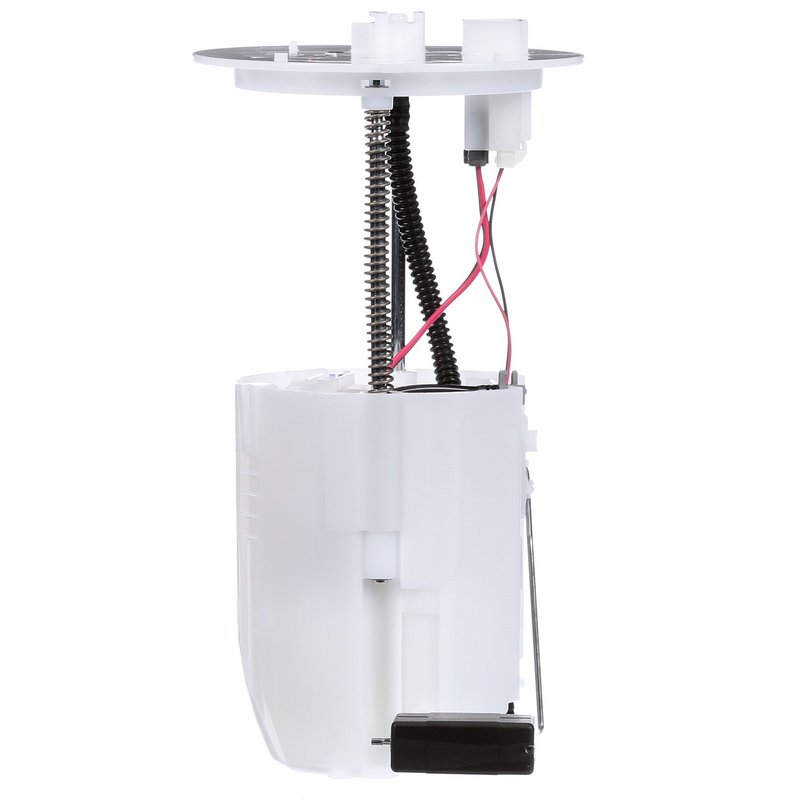

Delphi FG1526 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Lexus RX350

The Delphi FG1526 fuel pump module assembly is designed specifically for the Lexus RX350, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and compatibility with your vehicle's fuel system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Lexus RX350 models
• 12.0 Volt operation with a maximum pressure of 80 psi
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.313 inch outside diameter
• Four male pin terminals for reliable electrical connection
• Standard replacement grade for dependable performance

Product Features and Specifications

The Delphi FG1526 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet type with a single outlet port measuring 0.313 inches in diameter. The module includes a fuel pressure regulator and a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump delivers an average flow rating of 20 liters per hour and maintains a system pressure of 57 psi, with a maximum pressure rating of 80 psi. Electrical connections are made via four male pin terminals, ensuring secure and stable power delivery. The assembly also includes a gasket or seal to prevent leaks during installation.

Compatible Applications for Lexus RX350

This fuel pump module assembly is compatible with Lexus RX350 models requiring a 12-volt electric fuel pump with integrated fuel level sender. The FG1526 part number ensures a direct replacement for the original equipment, maintaining factory specifications and performance standards.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Corrects inaccurate fuel gauge readings caused by faulty sender units
• Replaces worn or damaged fuel pump modules to restore proper fuel pressure
• Eliminates fuel leaks with included gasket and secure quick connect outlet
• Improves overall fuel system reliability and vehicle drivability

Installation Notes and Tips

Installation of the Delphi FG1526 fuel pump module assembly should be performed with care to avoid damage to the fuel system components. Ensure the vehicle's battery is disconnected before beginning the replacement process. Use the included gasket or seal to prevent leaks and verify that all electrical connections are secure with the four male pin terminals. The quick connect outlet simplifies fuel line attachment, but confirm a tight fit to avoid fuel vapor or liquid leaks. Follow the vehicle manufacturer's service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

Delphi provides a standard replacement grade fuel pump module assembly engineered to meet OEM specifications. The FG1526 is manufactured with quality materials and includes a fuel level sender assembly for accurate fuel monitoring. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi's warranty policy for complete information.
