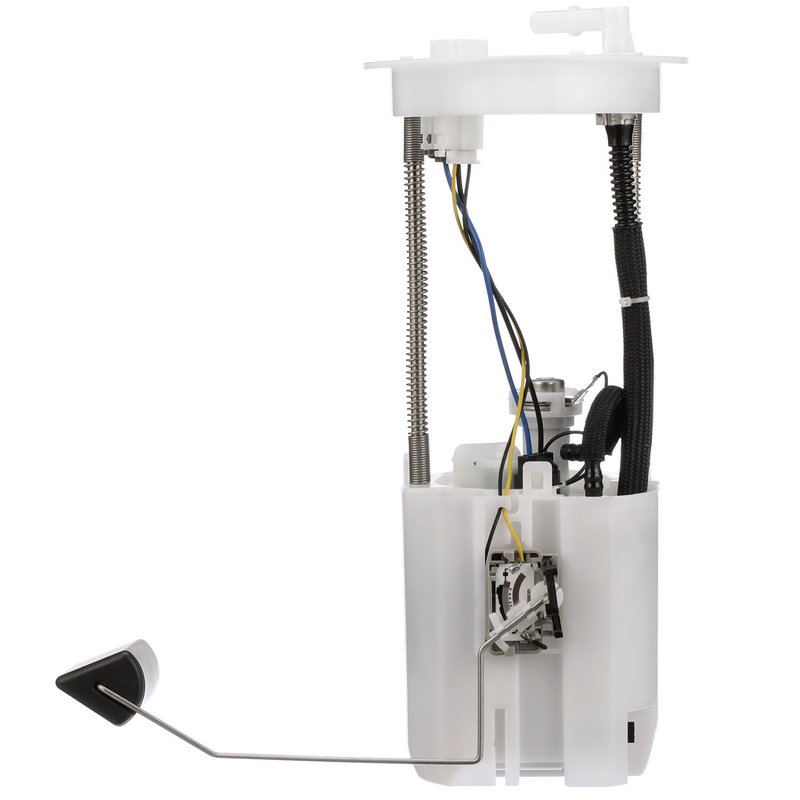

Delphi FG1528 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1528 fuel pump module assembly is designed specifically for Honda CR-V models, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for a streamlined installation.

• 12.0 Volt electric fuel pump with a maximum pressure of 49 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Comes with regulator, gasket, seal, and lock ring for complete assembly
• Blade-type male terminals with four connections for secure wiring
• Average flow rating of 26 and system pressure of 44 psi

Technical Details and Features

The Delphi FG1528 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring efficient fuel flow. The module includes a regulator to maintain system pressure at 44 psi, supporting optimal engine performance. The assembly also incorporates a fuel level sender assembly with a float arm, providing accurate fuel gauge readings for Honda CR-V vehicles.

Electrical connections are made via four blade-type male terminals, designed for secure and reliable contact. The pump’s resistance ranges from 780 ohms when empty to 20 ohms when full, with an average current draw of 10 amps. The package includes all necessary components such as the gasket, seal, and lock ring to facilitate proper installation and sealing within the fuel tank.

Compatible Vehicles and Applications

• Compatible with Honda CR-V models requiring a standard replacement fuel pump module assembly
• Designed for in-tank installation in gasoline fuel systems
• Ideal for addressing fuel delivery issues such as inconsistent fuel pressure or inaccurate fuel gauge readings
• Suitable for replacing worn or faulty fuel pump modules to restore proper fuel system function

Installation Notes and Tips

Installation of the Delphi FG1528 fuel pump module assembly should be performed with care to avoid damage to the fuel tank or module components. Ensure the lock ring is properly seated and tightened to prevent fuel leaks. Verify all electrical connections are secure and free of corrosion. It is recommended to replace the gasket and seal included in the package to maintain a proper seal. Follow vehicle-specific service manual instructions for safe removal and installation procedures.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Honda CR-V vehicles. It undergoes rigorous testing to ensure consistent fuel delivery and accurate fuel level readings. While specific warranty details are not provided, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
